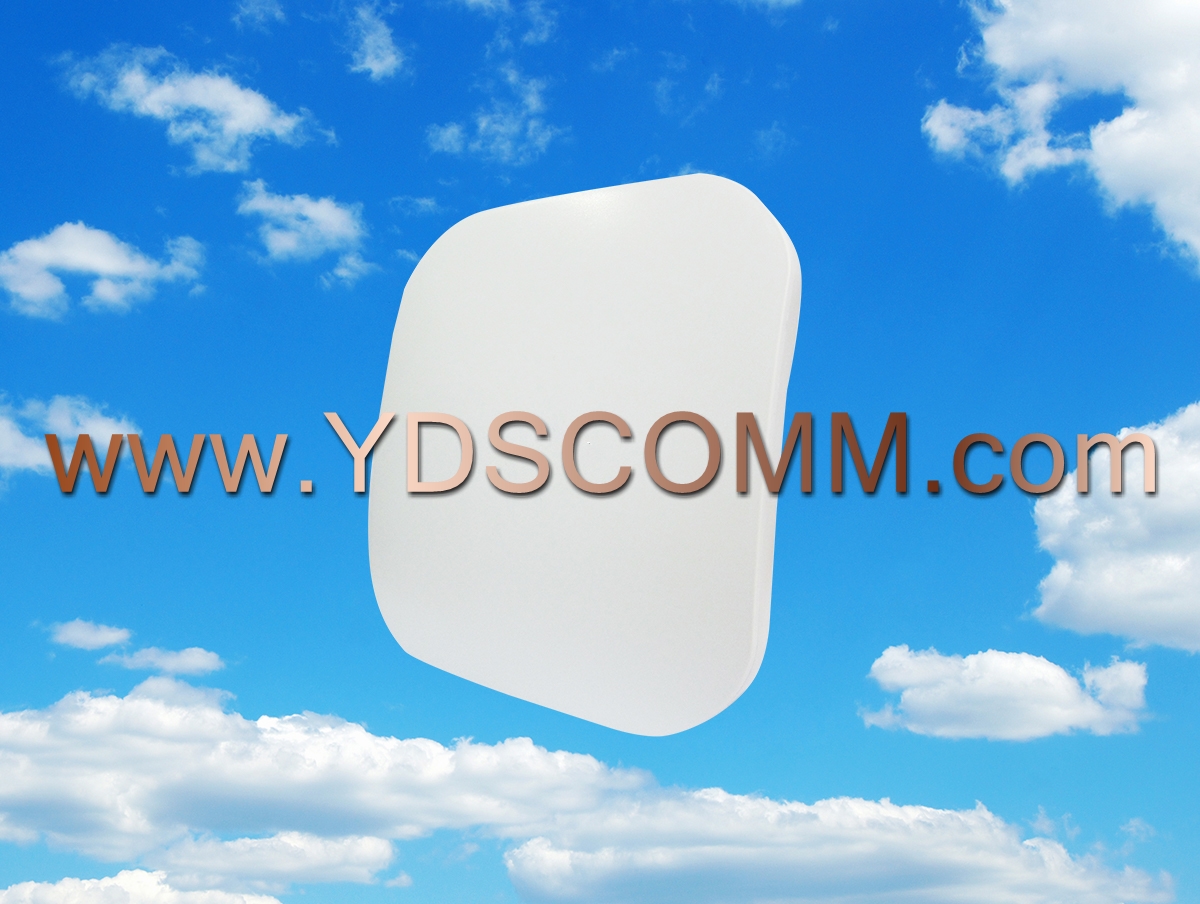

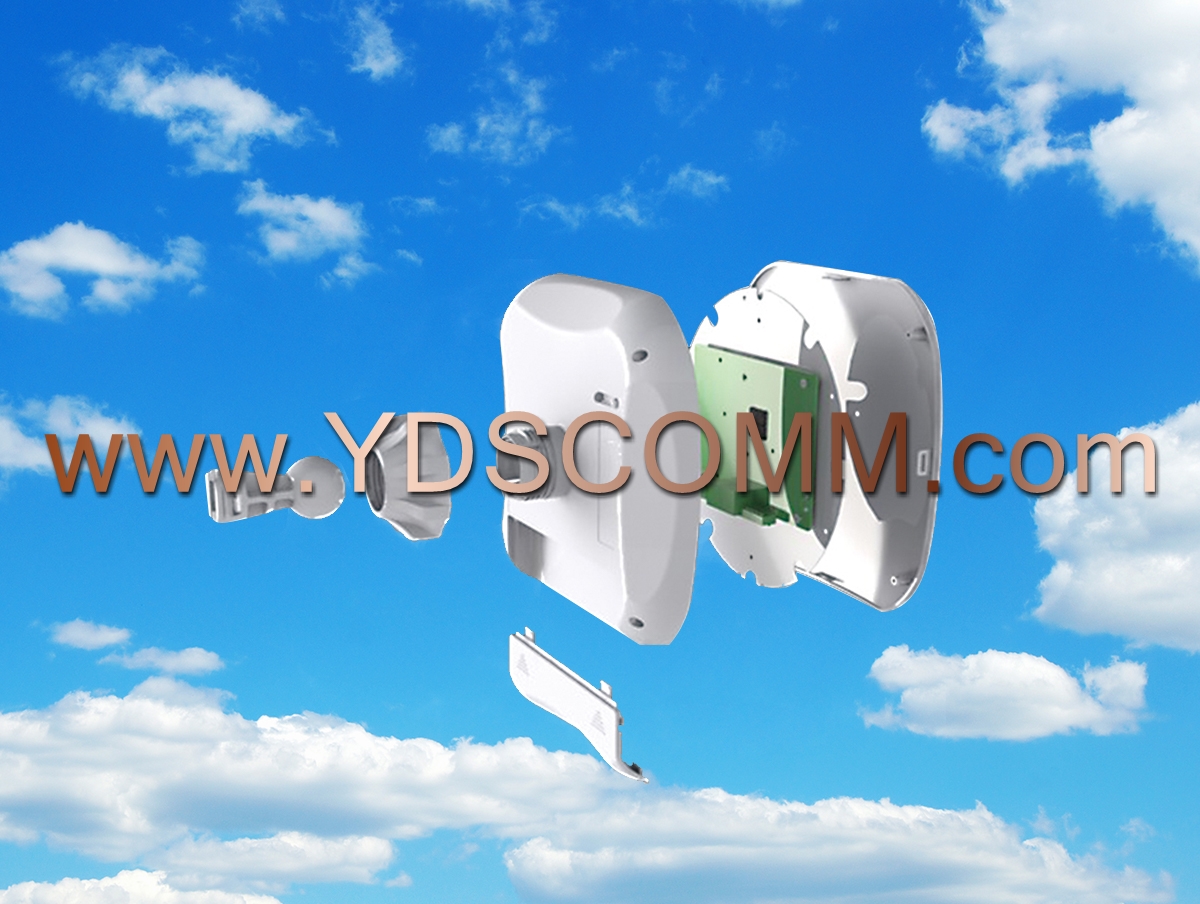

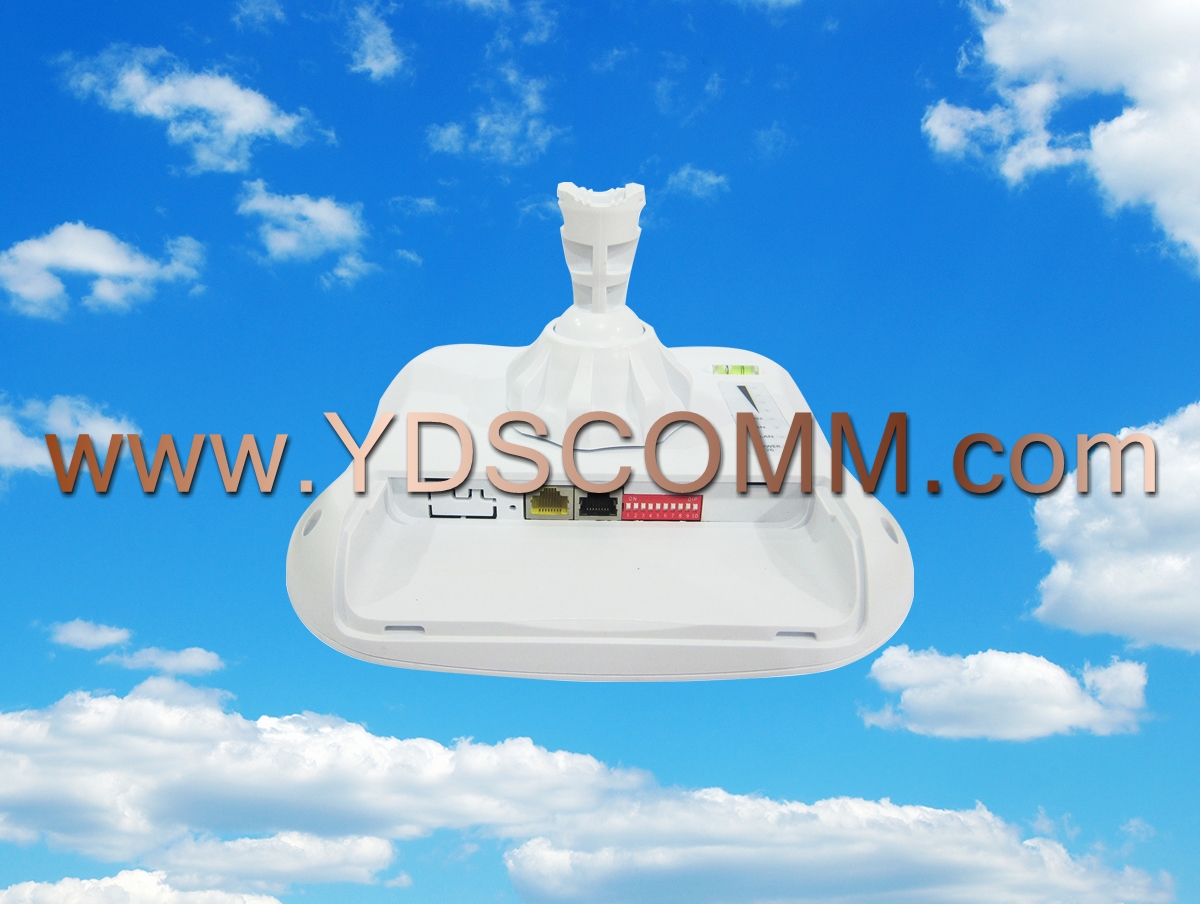

YDS-DIP1526-H-057 Wireless Access Point Bridge For Long Range Transmission
|
| Model No. YDS-DIP1526-H-057 |
| Chipset |
Atheros AR9344 600MHz |
| DRAM |
DDR2 64MByte |
| FLASH |
8MByte |
| IC |
SKY85735 |
| Wired Port |
10/100Mbps LAN*2 |
| Speed |
11a:54M,48M,36M,24M,18M,12M,9M,6Mbps |
| 11n:7.2M,14.4M,21.7M,28.9M,43.3M,57.8M,65M,72.2M,14.4M, |
| 28.9M,43.3M,57.8M,86.7M,115.6M,130M,144.4、150Mbps |
| Transmission |
DSSS |
| Modulation |
OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK |
| Standard |
IEEE802.11n,IEEE802.11a ,IEEE802.3u |
| Protocol |
CSMA/CA,TCP/IP,IPX/SPX, NetBEUI, DHCP,NDIS3,NDIS4,NDIS5 |
| Channel |
4900～6100MHz |
Power
Dissipation |
≤3W |
| Power |
POE24V 1A(default)/ 48V 0.5A |
|
