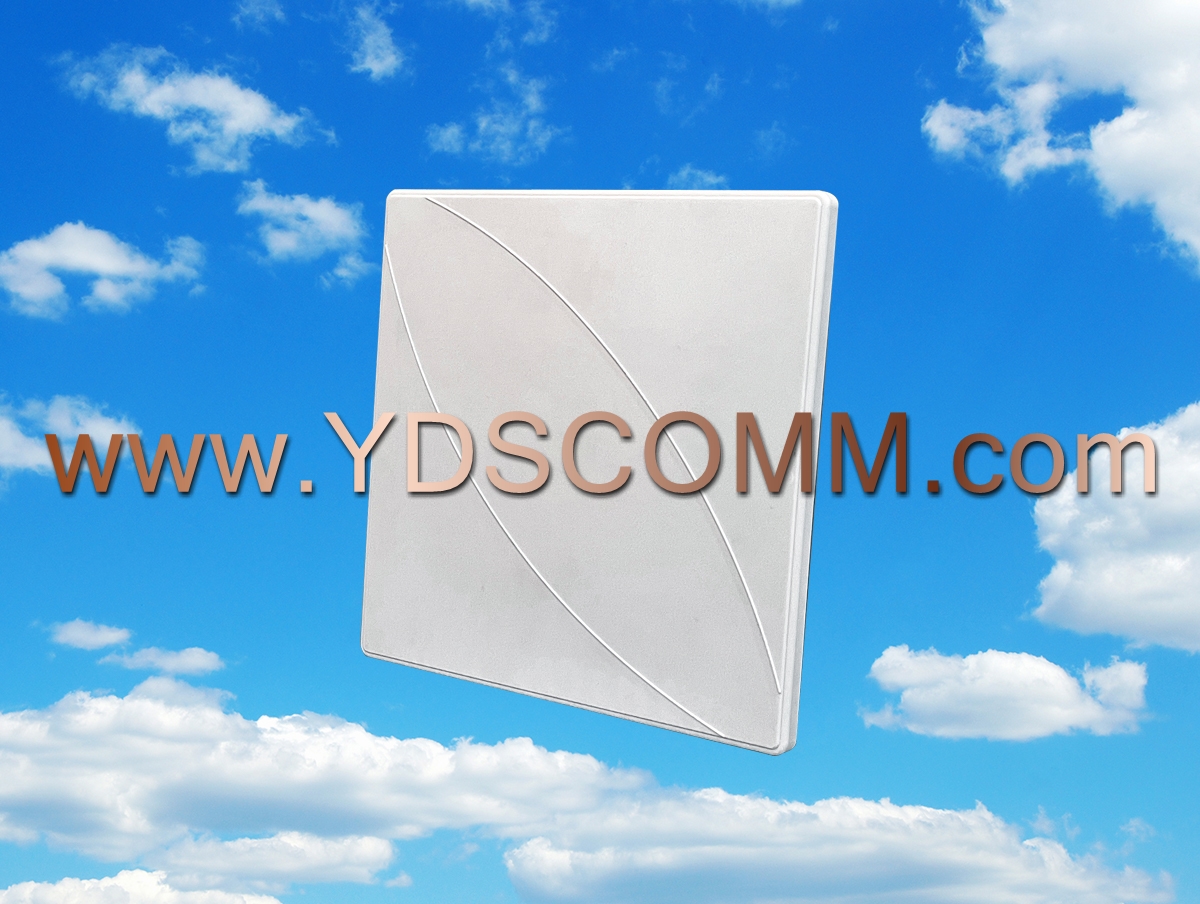

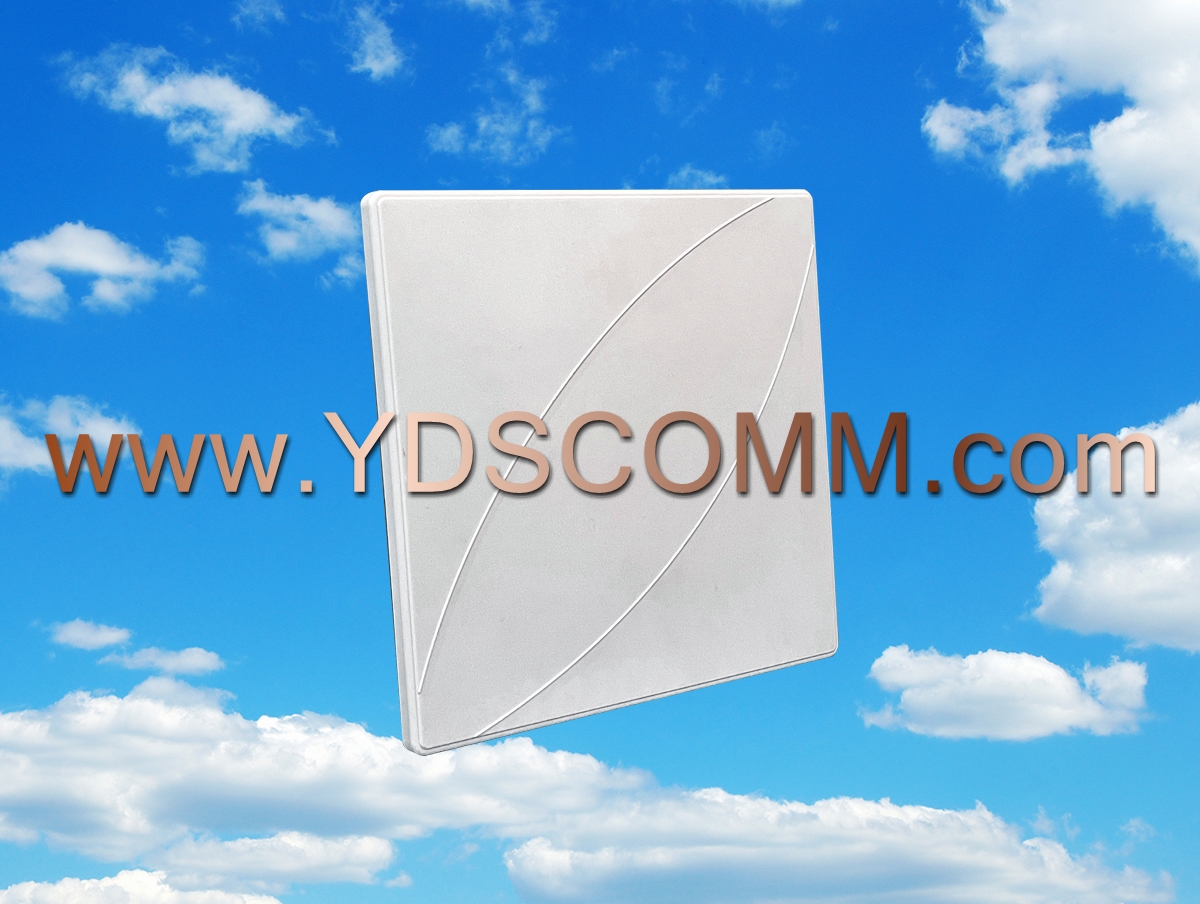

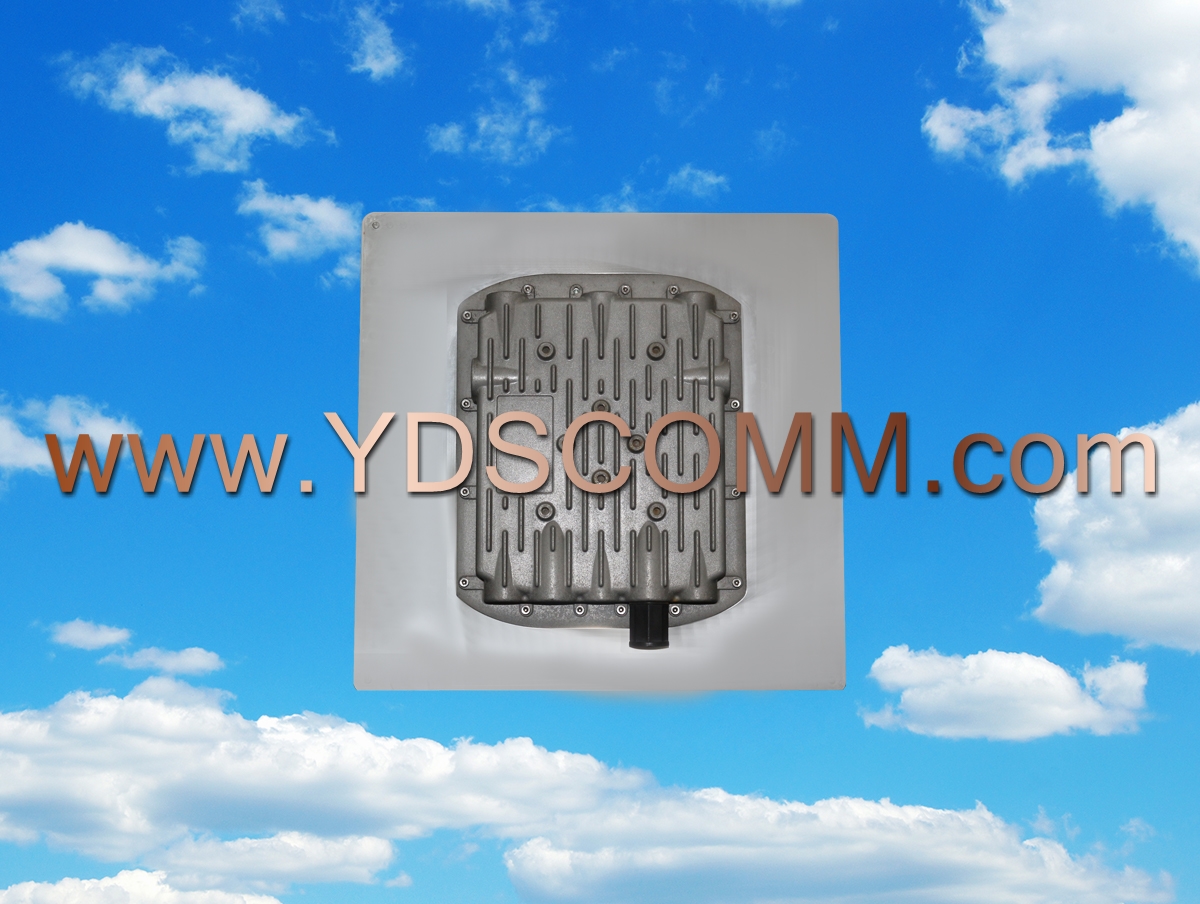

YDS-TX23-9525K V3.0-066 20KM Long Distance Wireless Bridge For Network Signal Transmission
|
| Model No. YDS-TX23-9525K V3.0-066 |
| Chipset |
QCA9563+QCA9886 |
| DRAM |
DDR2 128MByte |
| FLASH |
16MByte |
| IC |
SKY85728-11*2 |
| Wired Port |
0/100/1000Mbps LAN*1 |
| Data Rate |
867Mbps |
| Modulation |
OFDM/256-QAM/64-QAM/16-QAM/QPSK/BPSK |
| Protocol |
IEEE802.11a,IEEE802.11ac,IEEE802.11n,IEEE802.3u,IPoll 3,IEEE802.3af,
IEEE802.3at |
| Frequency |
5150～5850MHz |
Power
Dissipation |
≤10W |
| Power |
POE 24V 1A |
|
