Overview

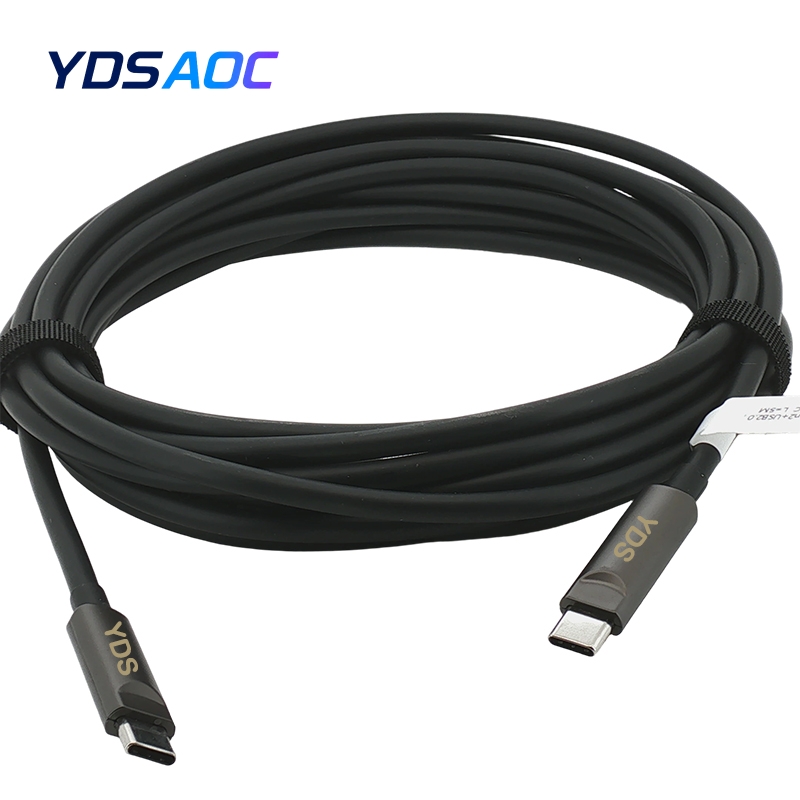

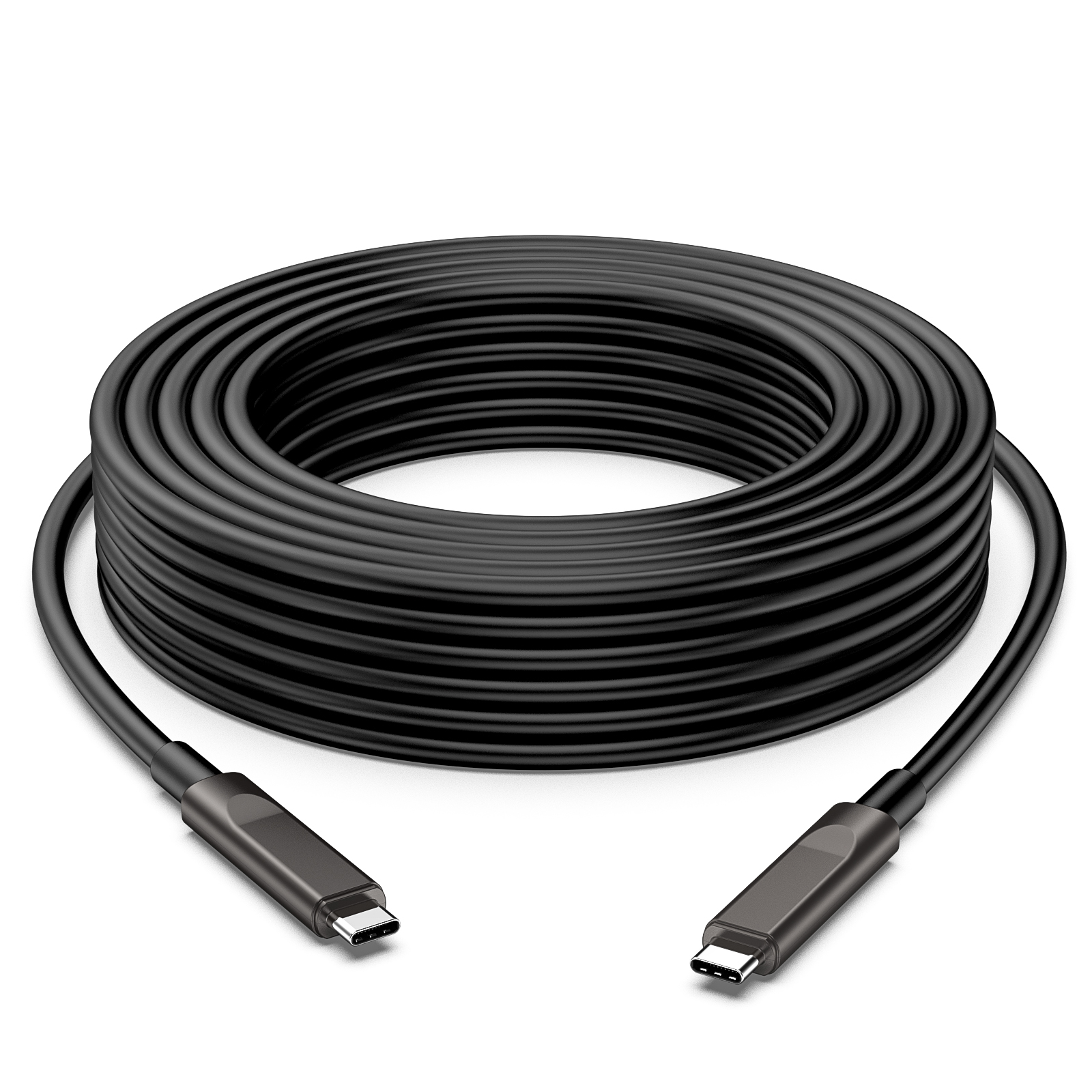

YDSAOC-10G-USB32-AV-CM-CM is an Audio and Video USB 3.2 Gen 2 Active Optical Cable (AOC), also known as a Fiber Optic USB Cable, that combines fiber optic technology with USB-C connectivity. It is engineered to overcome the distance, interference, and bandwidth limitations of traditional copper cables while delivering fast, reliable, high-performance connections.

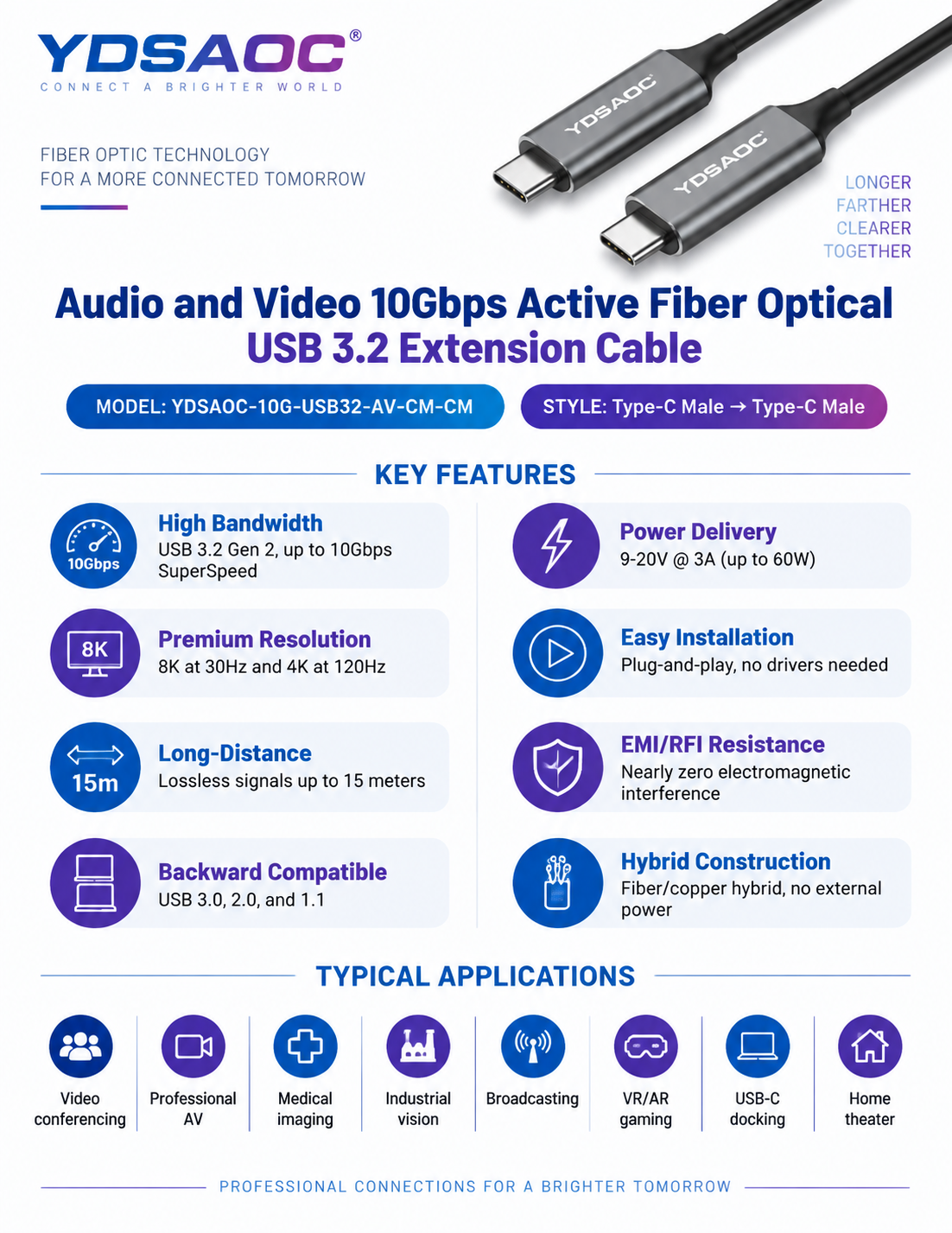

Key Features

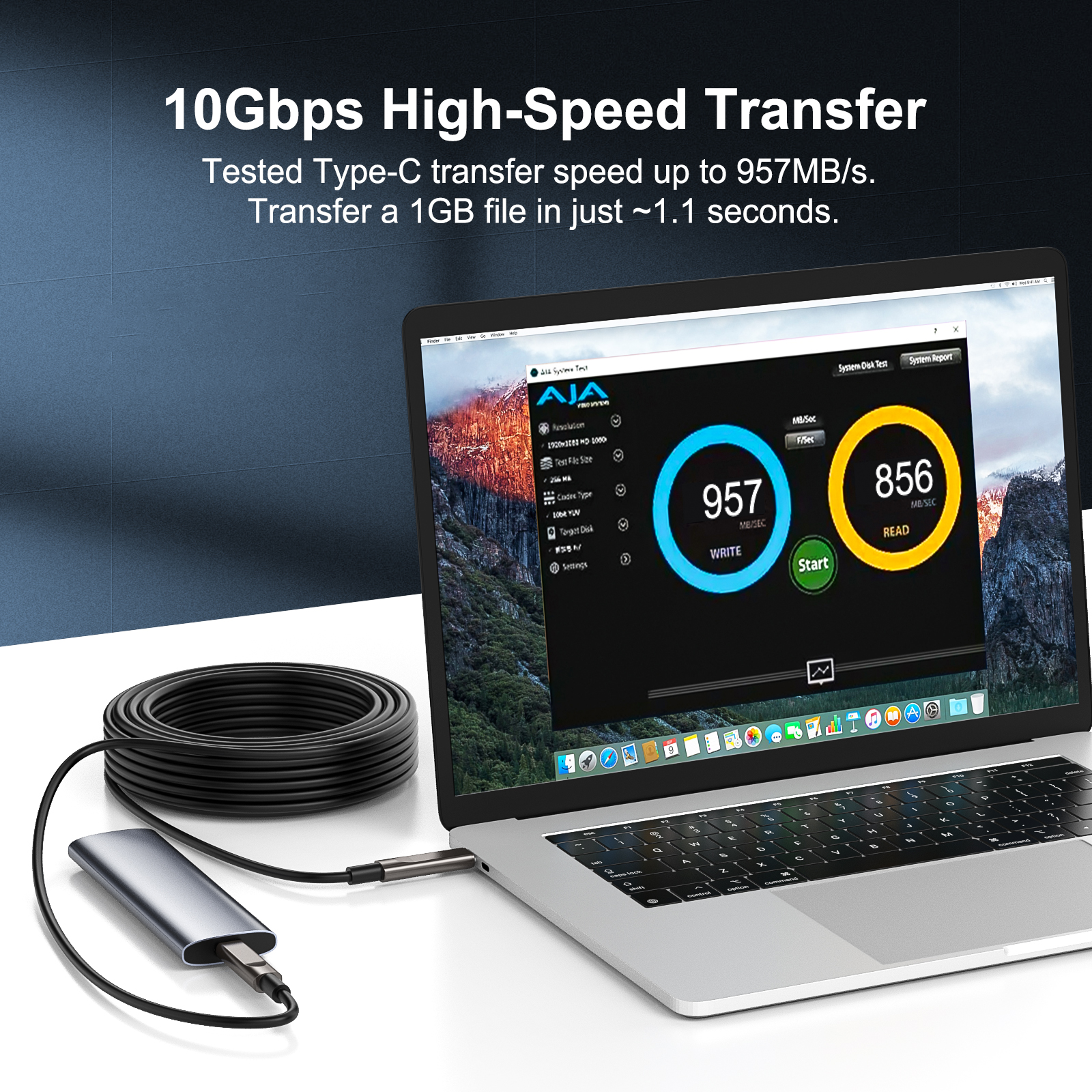

• High Bandwidth — Compliant with the latest USB 3.2 Gen 2 standard, supporting data rates up to 10Gbps SuperSpeed
• Premium Resolution — Supports 8K at 30Hz and 4K at 120Hz for high-fidelity video

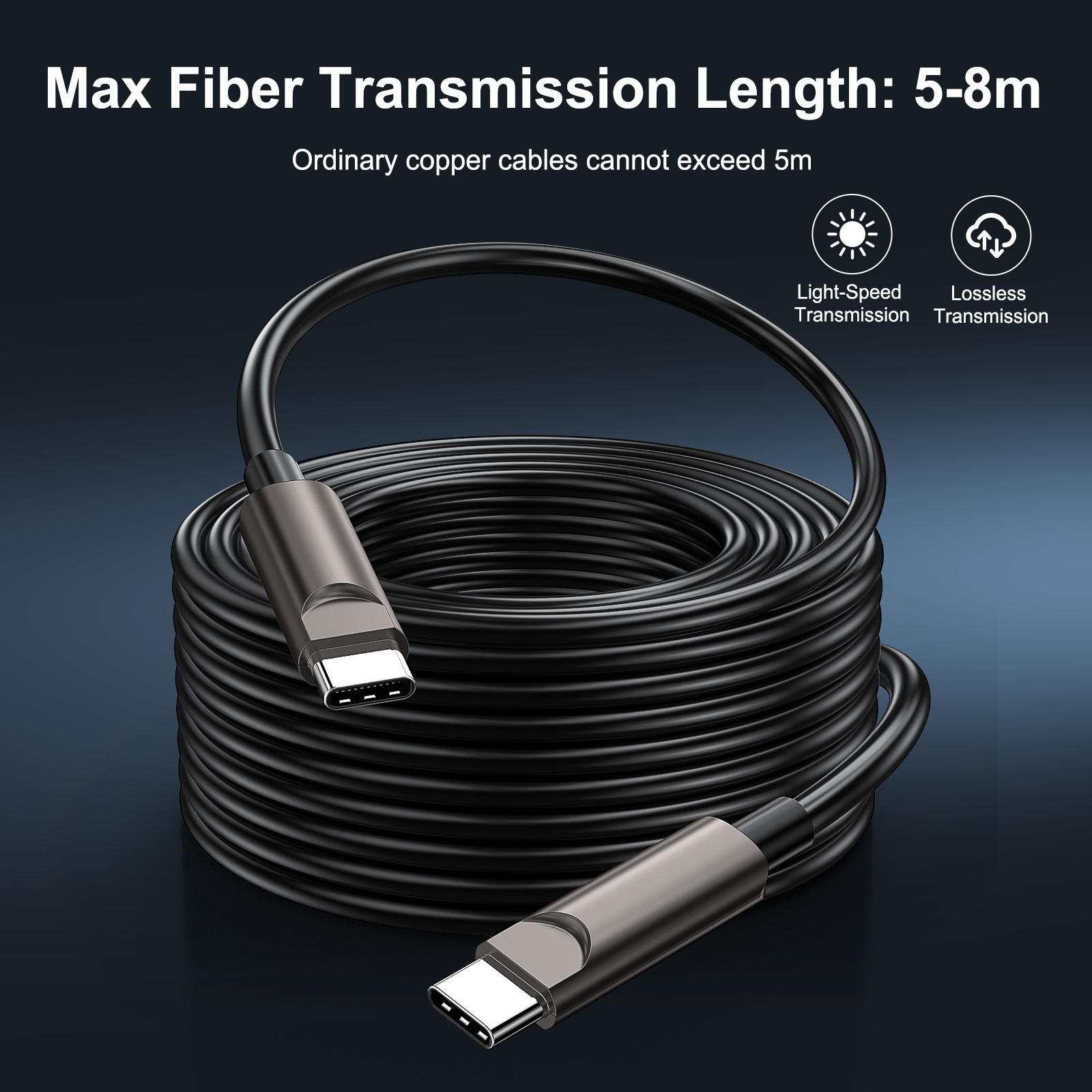

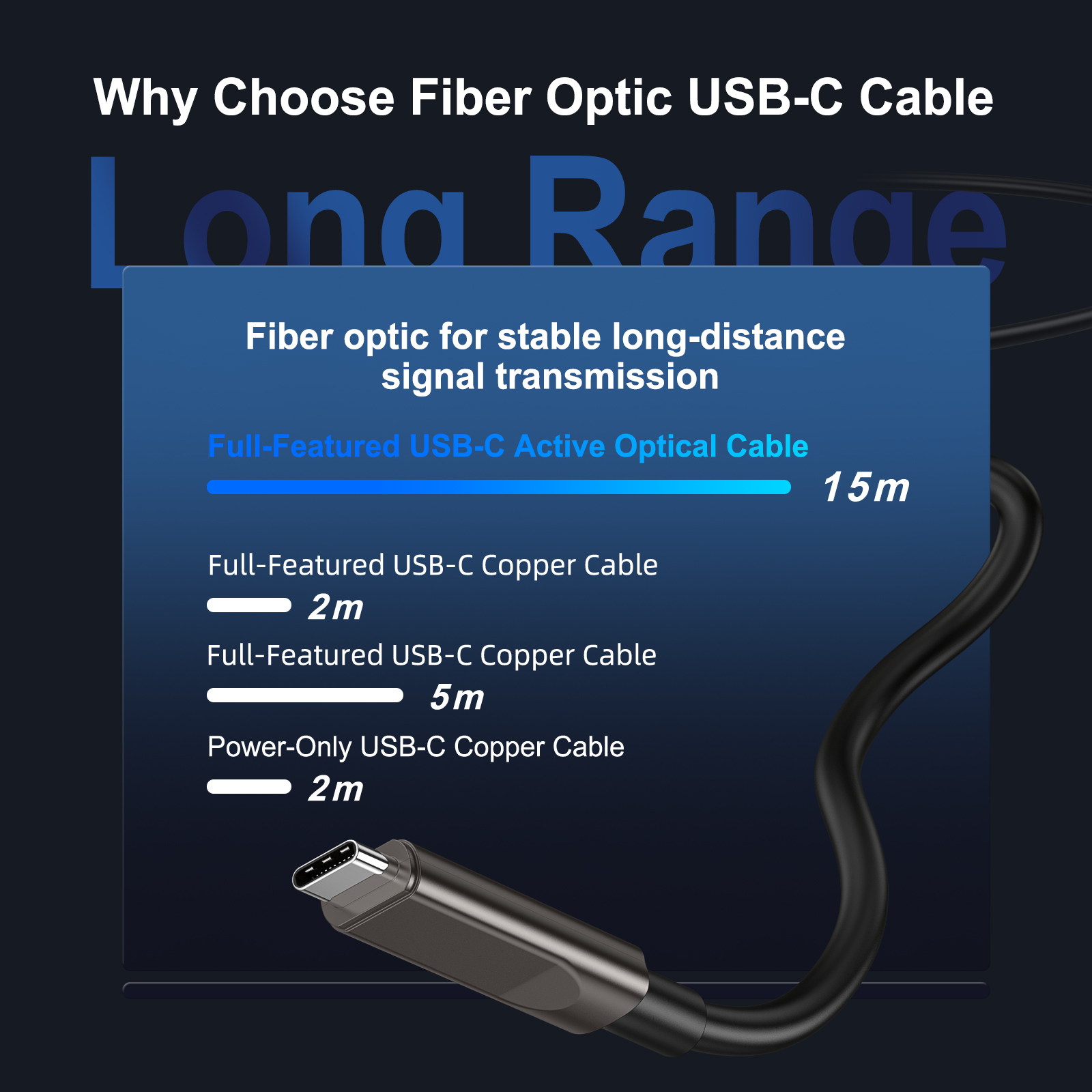

• Long-Distance Transmission — Delivers lossless signals over extended distances (up to 15 meters depending on configuration)
• Backward Compatible — Works with USB 3.0 (5Gbps), USB 2.0, and USB 1.1
• Power Delivery — Supports fast charging of 9–20V @ 3A (up to 60W) to the remote device
• Easy Installation — True plug-and-play on both ends with a unidirectional design; no external drivers or software required
• Nearly Zero EMI/RFI — High resistance to electromagnetic interference for a safe, radiation-free environment
• Hybrid Construction — Fiber/copper hybrid design requires no external power; features a zinc-alloy housing with corrosion-resistant gold-plated connectors
• Customizable — Available in custom lengths, with custom logo and packaging options (OEM/ODM supported)



Typical Applications

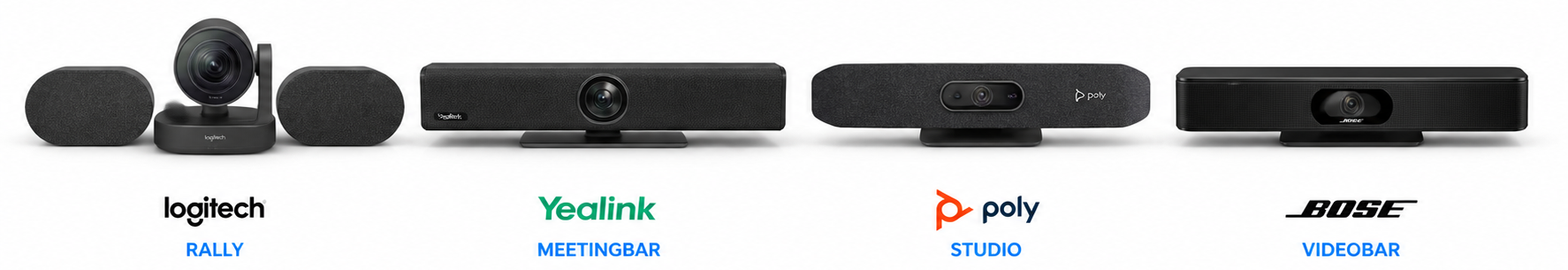

• Video conferencing systems (e.g., Logitech Rally, Yealink MeetingBar, Poly Studio, Bose Videobar)
• Professional AV and digital signage (interactive displays, LED video walls)
• Medical imaging and healthcare equipment
• Industrial vision and machine vision cameras
• Broadcasting and live streaming

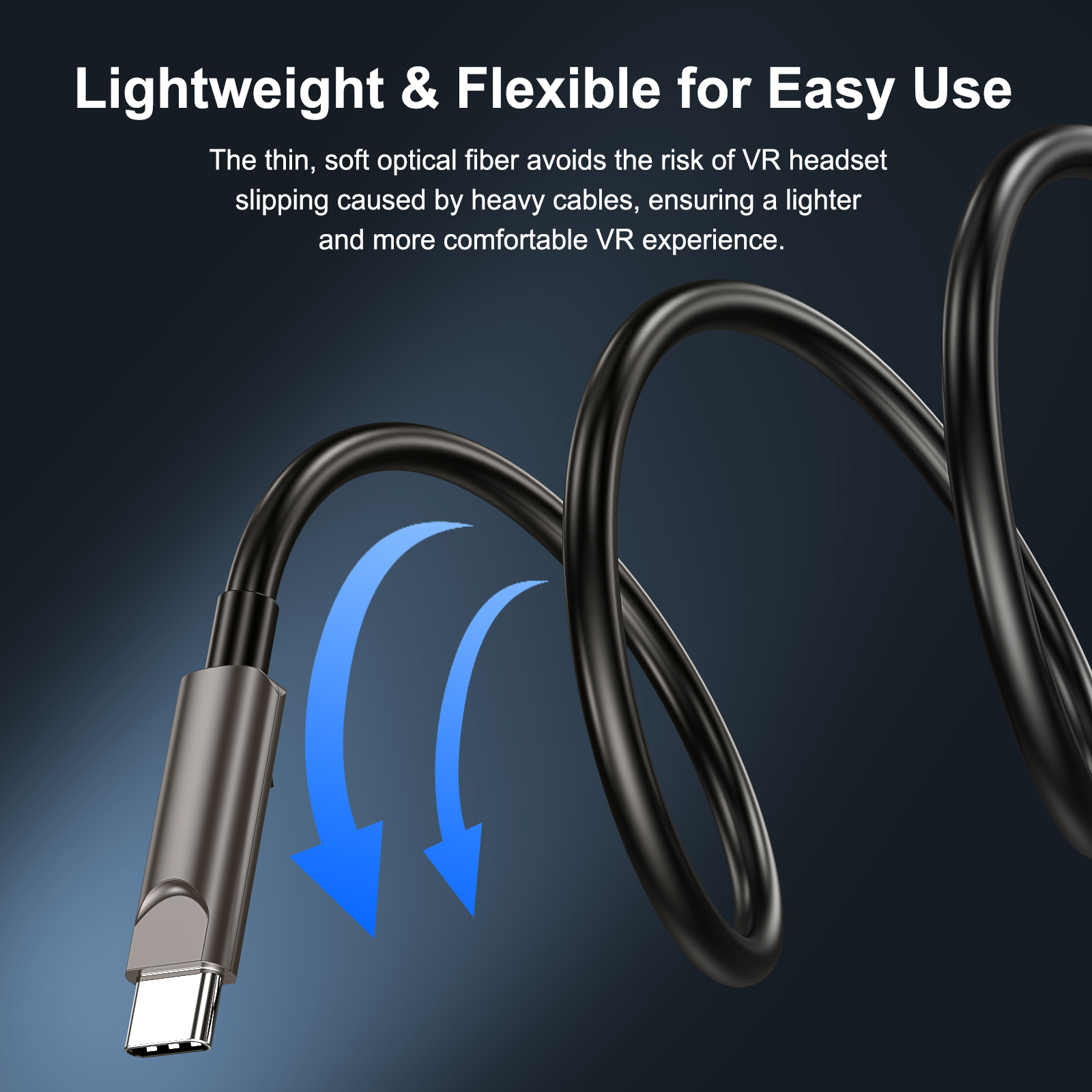

• VR/AR headsets and gaming setups
• USB-C docking stations and external storage
• Home theater, projectors, set-top boxes, and security monitoring



Ideal For

Environments that require extended data transmission distances without on-site power and demand high reliability in electromagnetically complex settings — where conventional copper cables reach their limits.

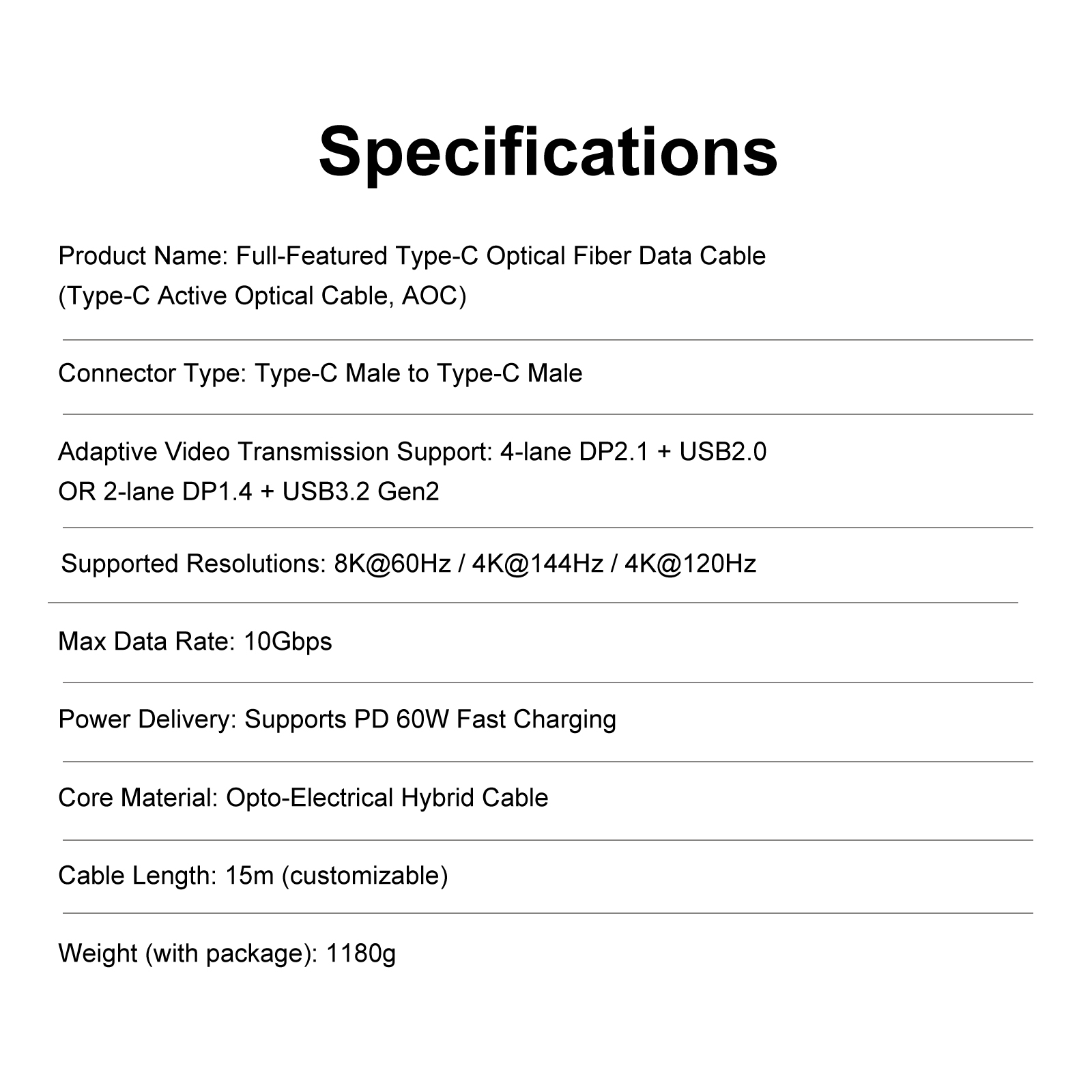

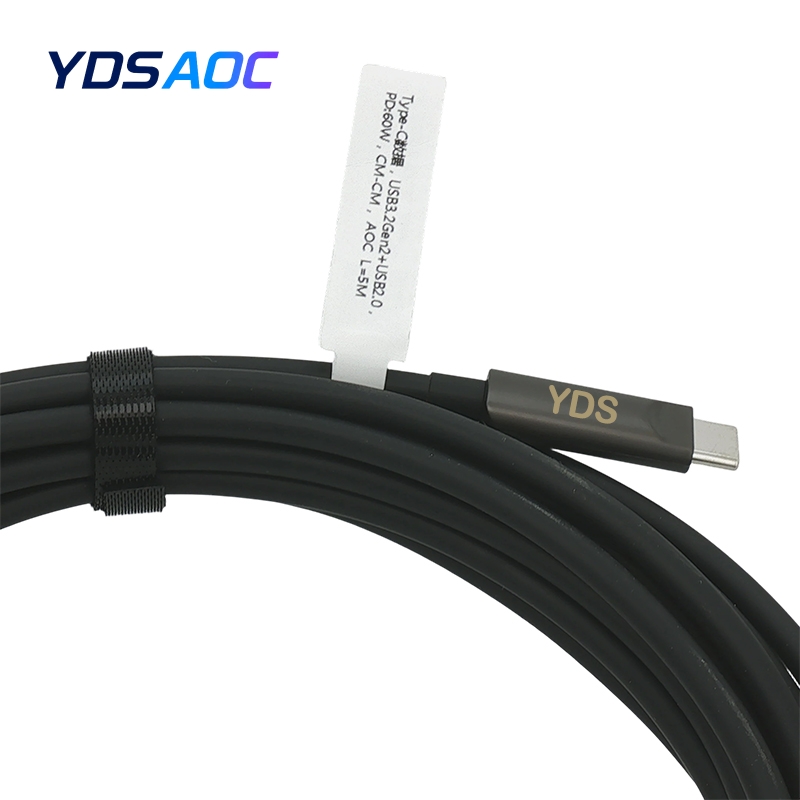

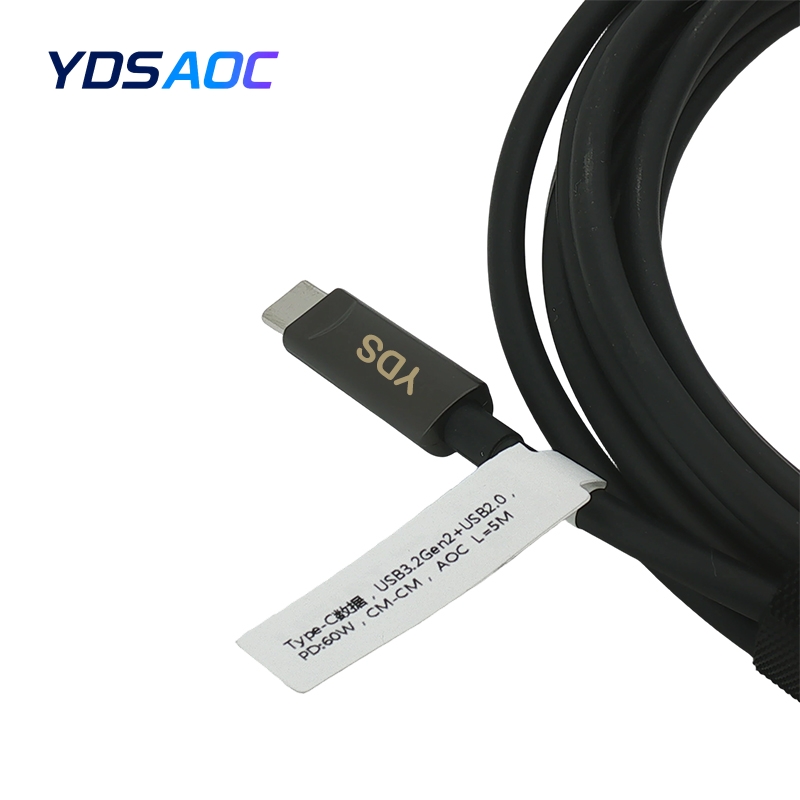

YDSAOC Model Number	YDSAOC-10G-USB32-AV-CM-CM
Order Part Numbers	YDSAOC-10G-USB32-AV-CM-CM-1003 YDSAOC-10G-USB32-AV-CM-CM-2006 YDSAOC-10G-USB32-AV-CM-CM-50015 YDSAOC-10G-USB32-AV-CM-CM-100030 YDSAOC-10G-USB32-AV-CM-CM-150045

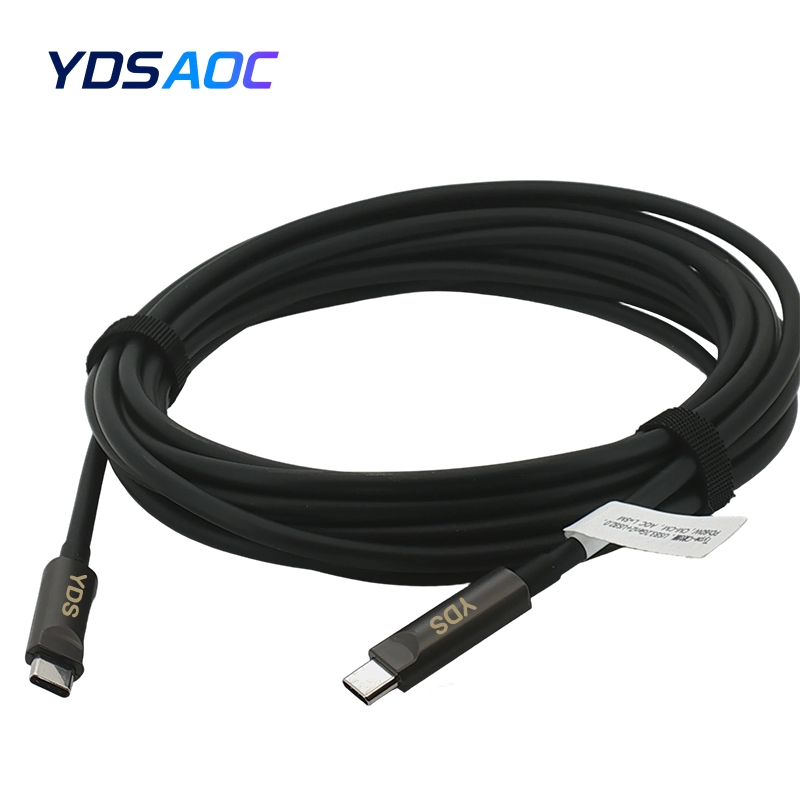

Length	1m(3ft), 2m(6ft), 5m(15ft), 10m(30t), 15m(45ft)
Maximum Support Length	up to 15m(45ft)
Maximum Data Speed	up to 10Gbps
Full Feature AV Functions	HPD, HDCP, HDR
Maximum Resolutions	8K 30Hz and 4K 120Hz

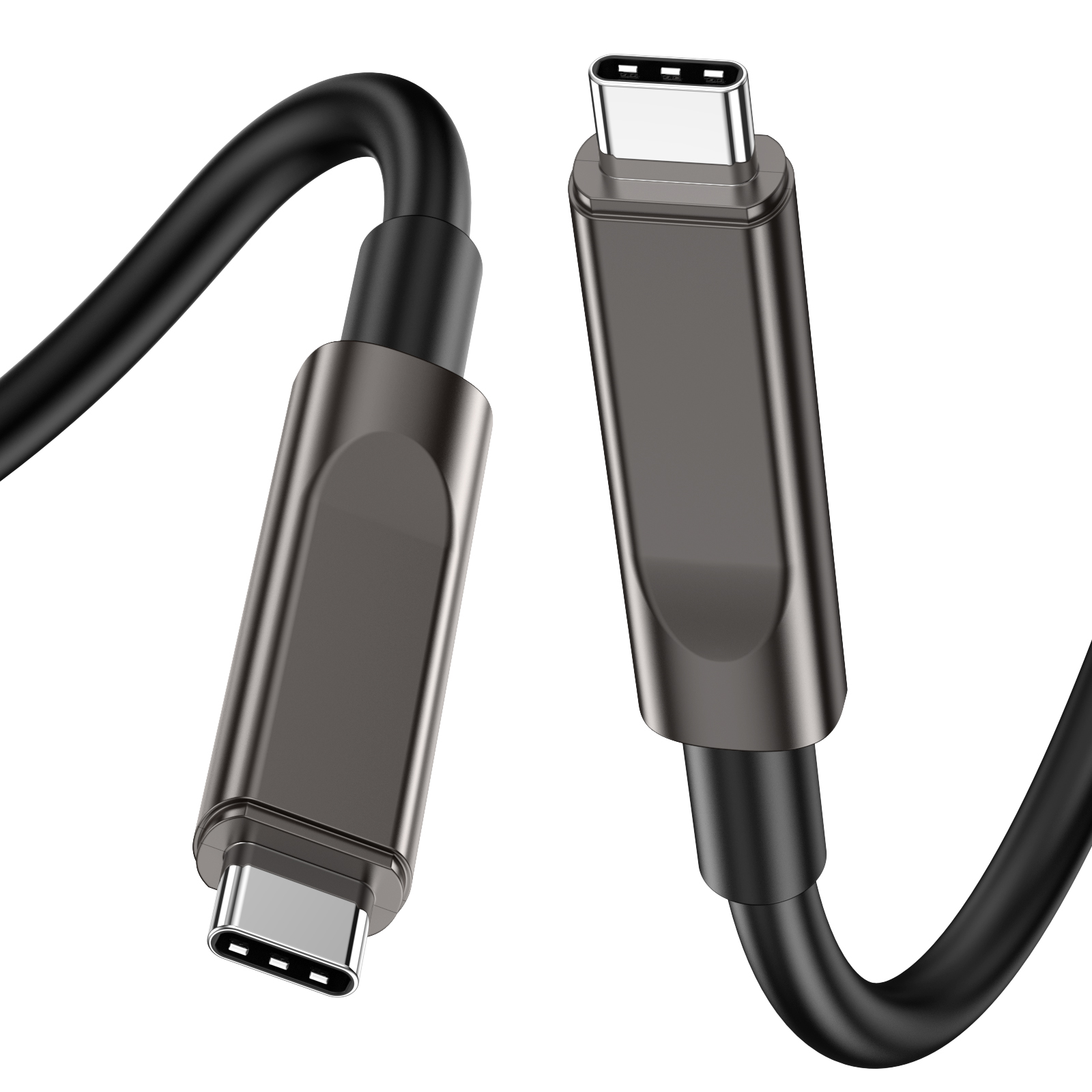

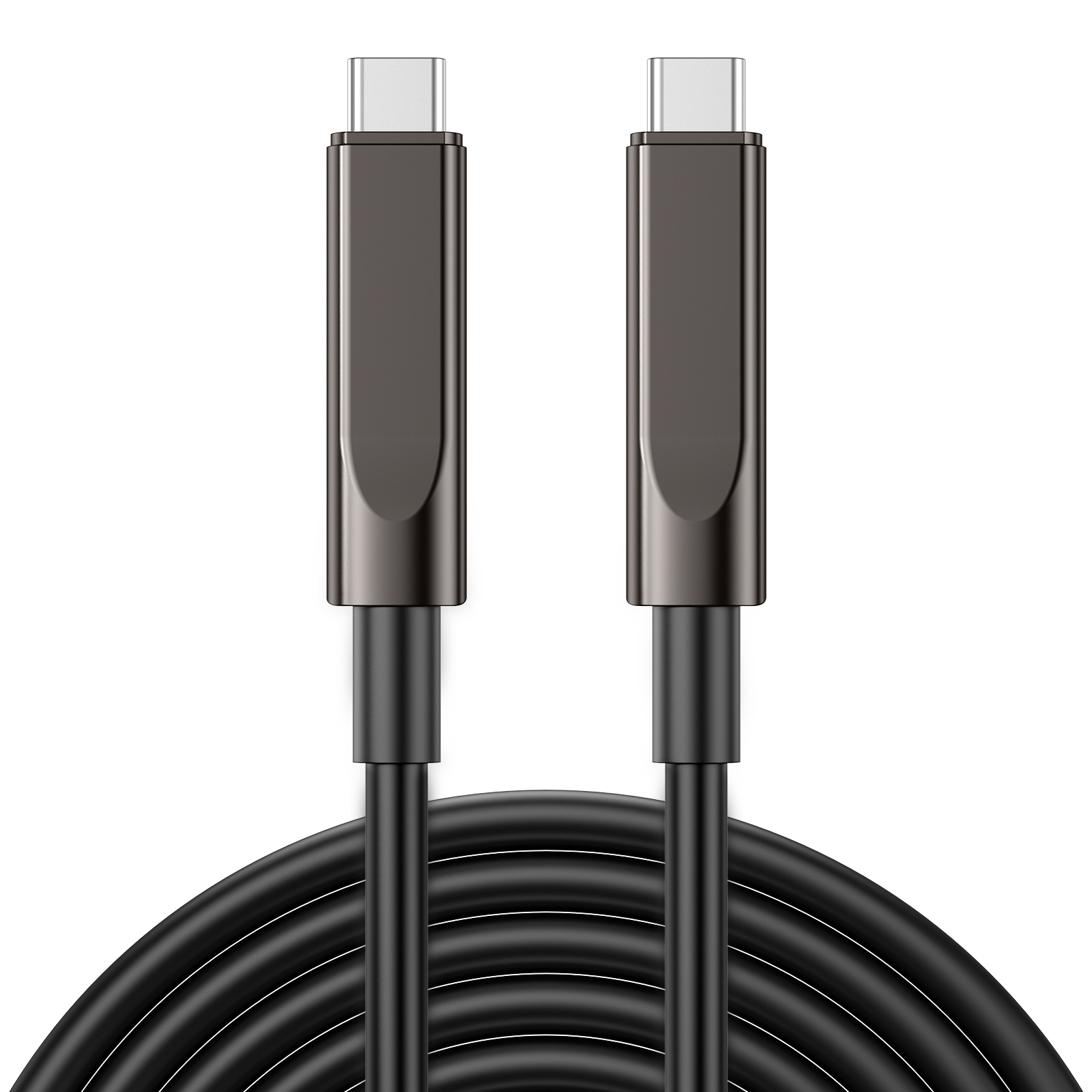

Connector A	USB 3.2 Type-C Male
Connector B	USB 3.2 Type-C Male
Display Port Protocols	4 Lane DP2.1, 2 Lane DP1.4
USB Protocols	USB 3.2 Gen 2, USB 3.1 Gen 2, USB 3.0, USB 2.0
Support Functions	Data Transfer, Power Transfer

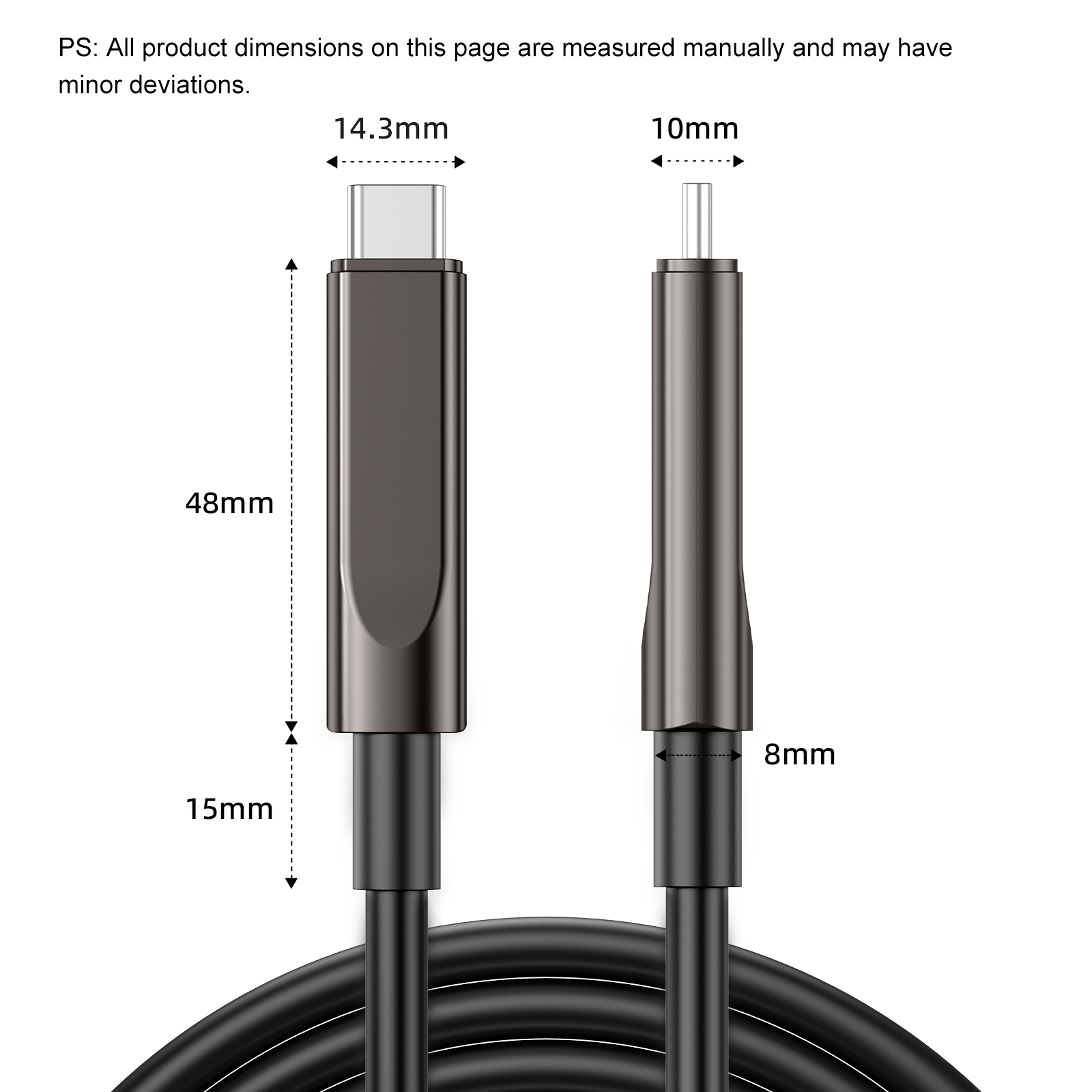

Cable Diameter	6.0mm
Cable Jacket Type	TPE
Cable Color	Black

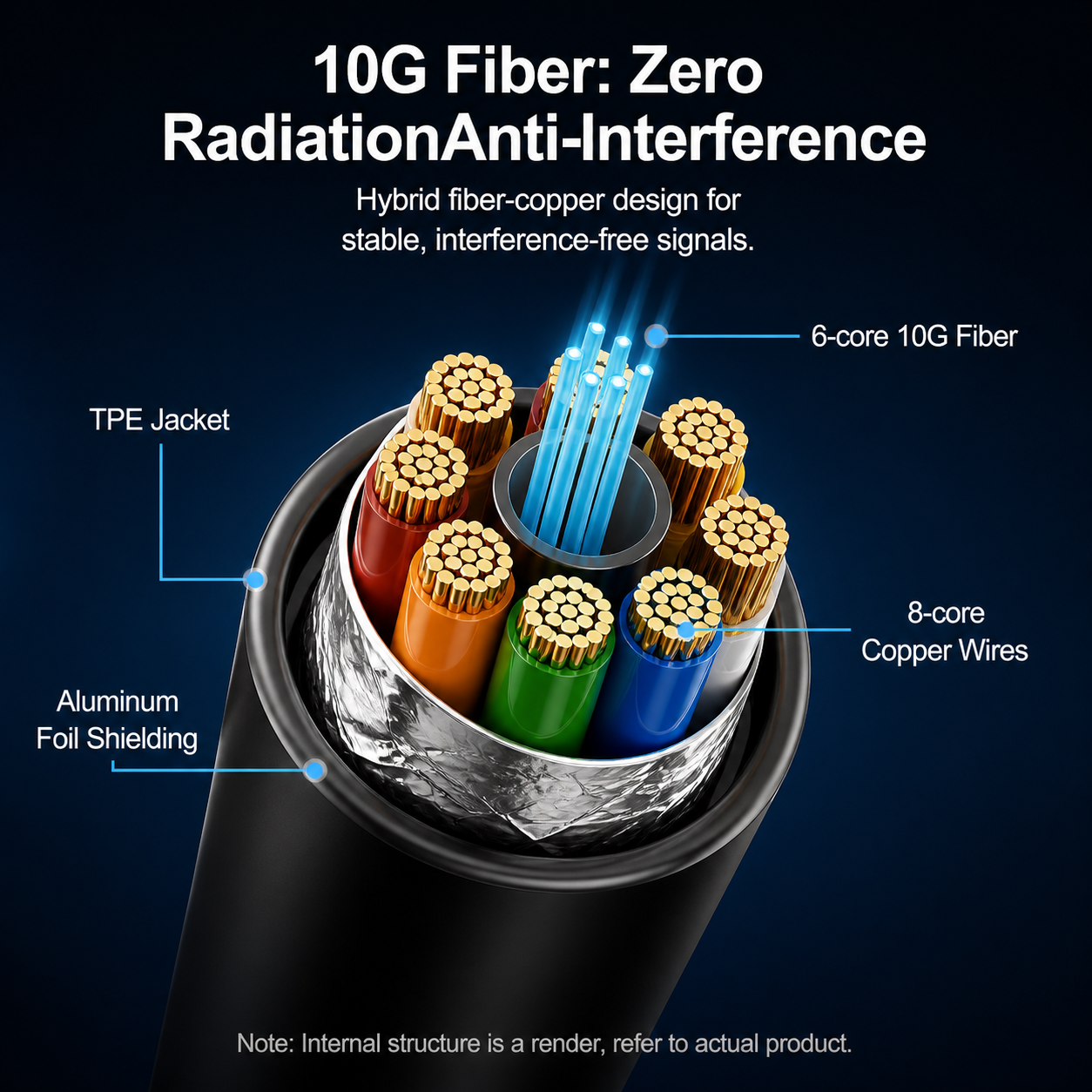

AOC Constructions	Hybrid, 6x Optical Fiber, 8x Copper Wire
Minimum Bending Radius	50mm
Operating Temperature	0ºC to 70ºC
Storage Temperature	–40ºC to 85ºC
Installation Direction	Bidirectional (Data), One Way Direction (Video)
Power Connect	No External Power is Required
Support Fast Charging	Maximum PD 60W, or PD 100W < 5m(15ft)
