YDSAOC APPLICATIONS

Active Optical Cable offers wide range of applications for AI Industry.

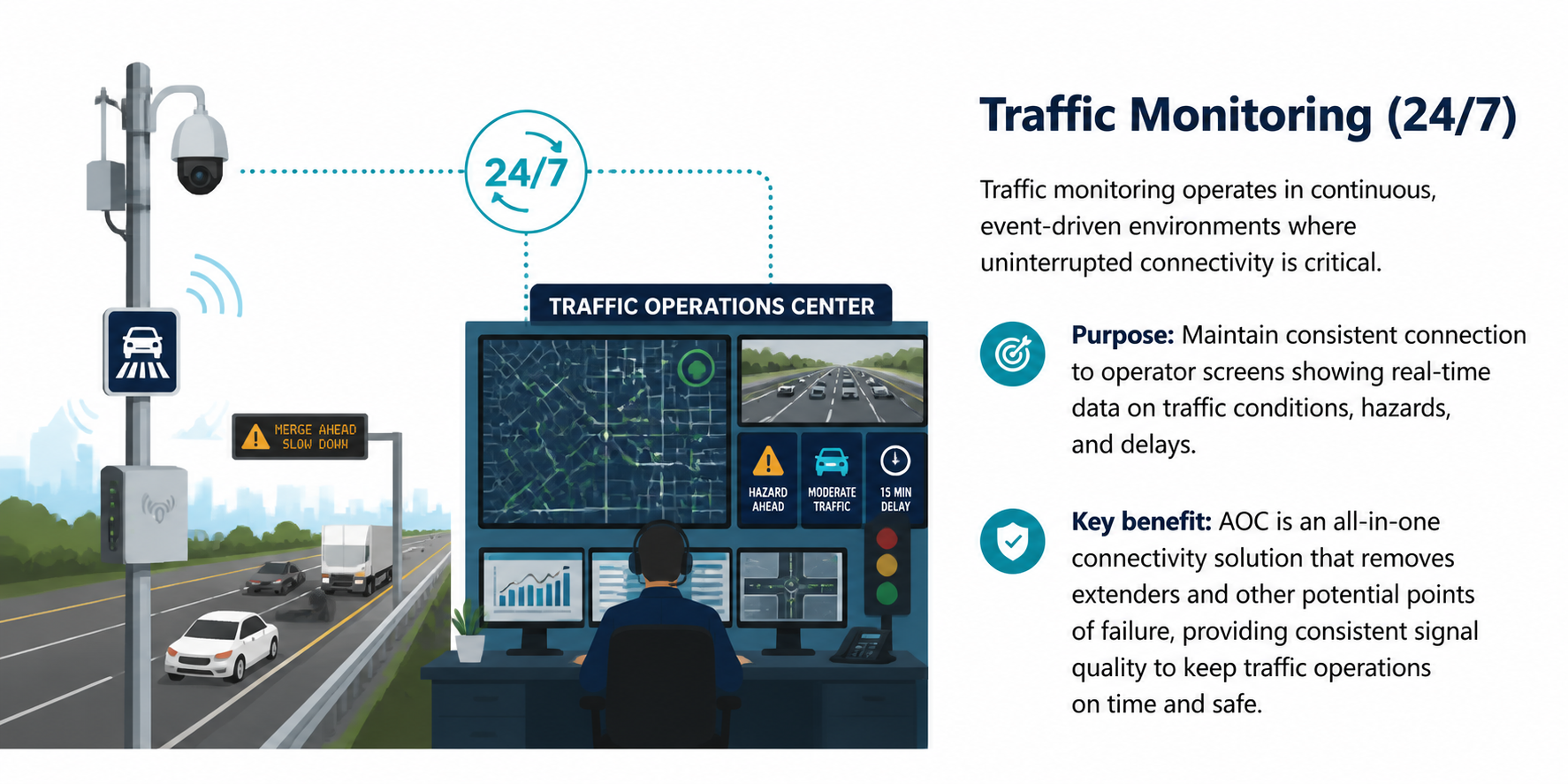

1. Traffic Monitoring (24/7)

Traffic monitoring operates in continuous, event-driven environments where uninterrupted connectivity is critical.

• Purpose: Maintain consistent connection to operator screens showing real-time data on traffic conditions, hazards, and delays.
• Key benefit: AOC is an all-in-one connectivity solution that removes extenders and other potential points of failure, providing consistent signal quality to keep traffic operations on time and safe.

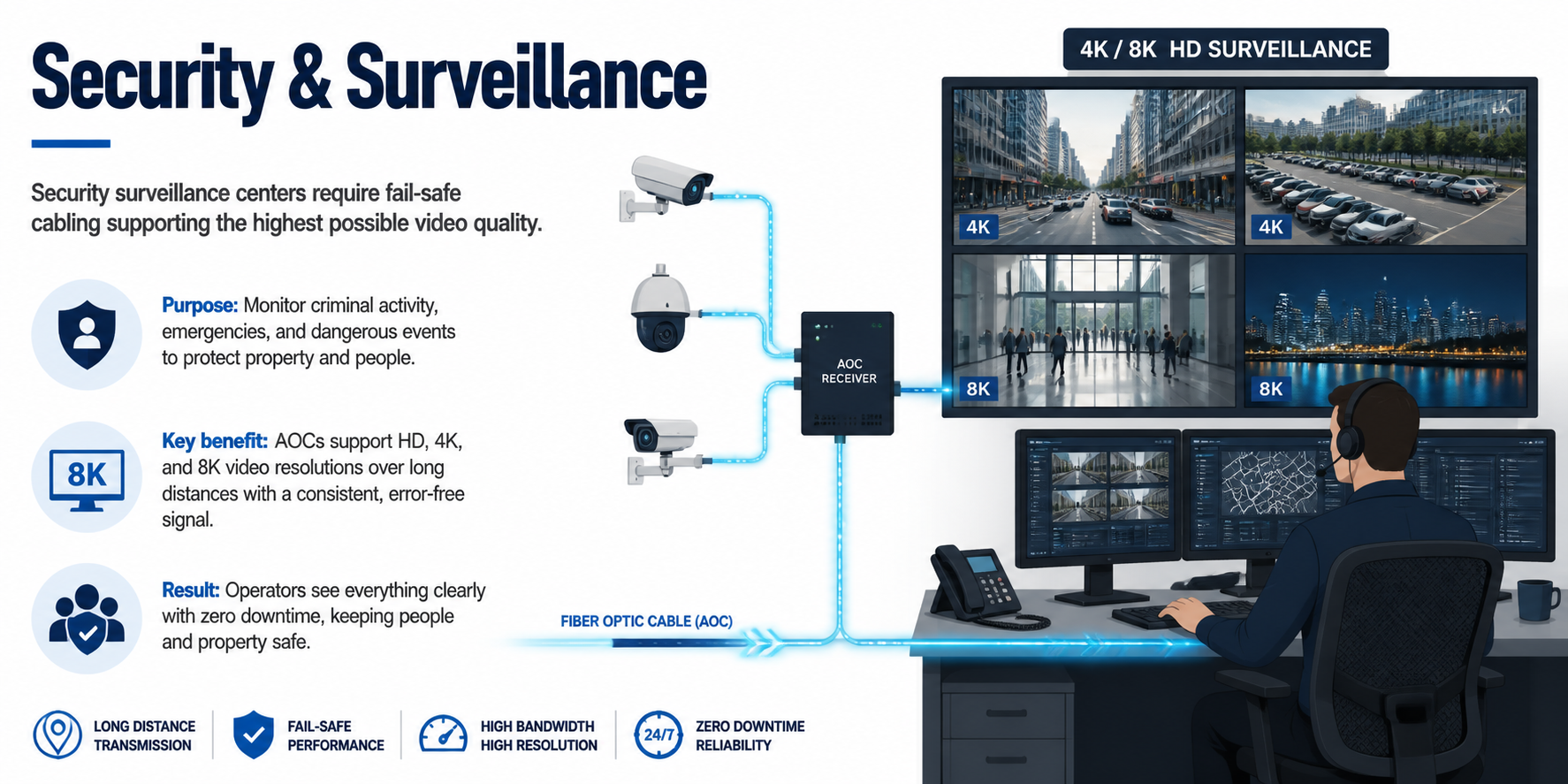

2. Security & Surveillance

Security surveillance centers require fail-safe cabling supporting the highest possible video quality.

• Purpose: Monitor criminal activity, emergencies, and dangerous events to protect property and people.
• Key benefit: AOCs support HD, 4K, and 8K video resolutions over long distances with a consistent, error-free signal.
• Result: Operators see everything clearly with zero downtime, keeping people and property safe.

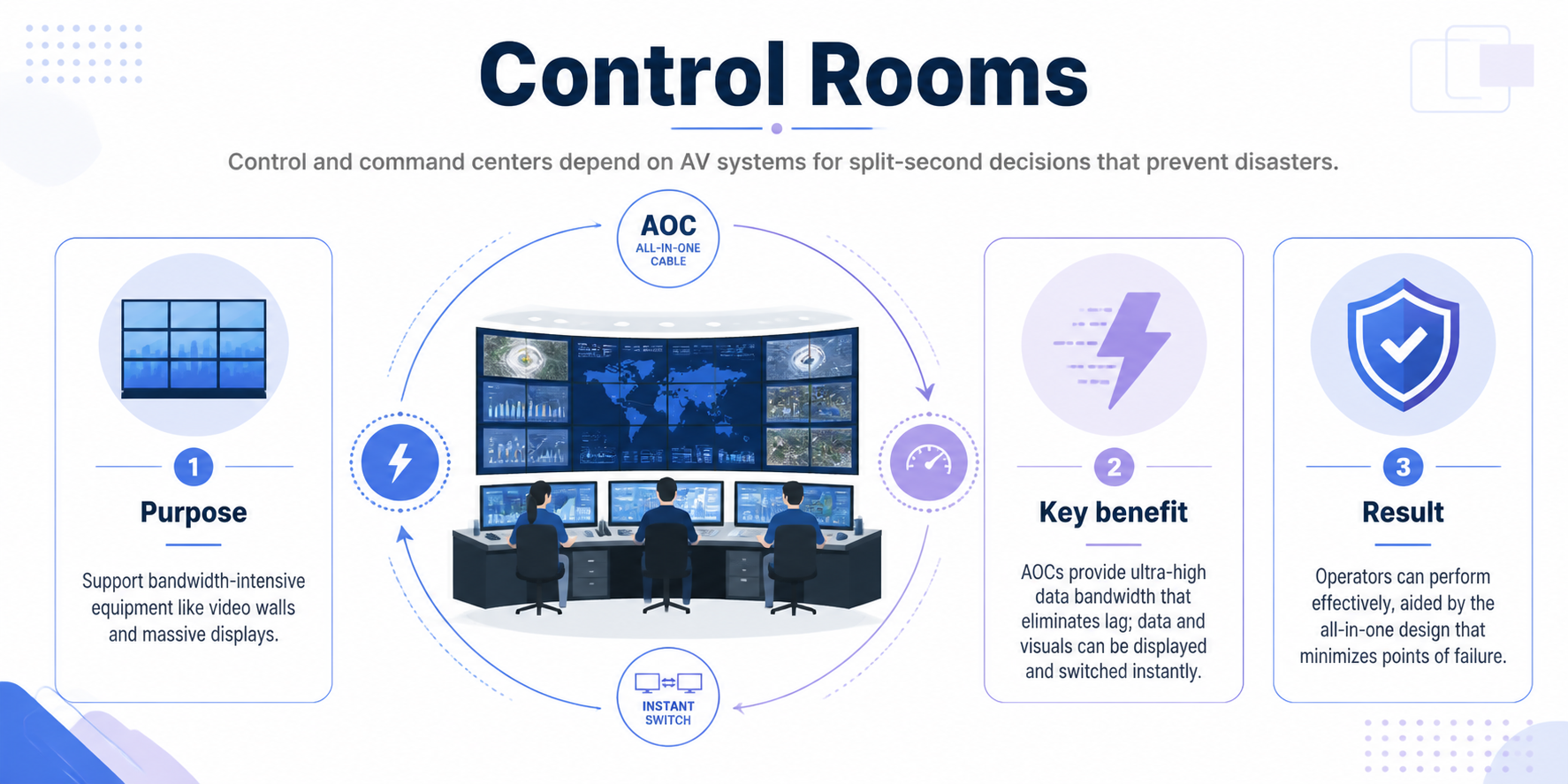

3. Control Rooms

Control and command centers depend on AV systems for split-second decisions that prevent disasters.

• Purpose: Support bandwidth-intensive equipment like video walls and massive displays.
• Key benefit: AOCs provide ultra-high data bandwidth that eliminates lag; data and visuals can be displayed and switched instantly.
• Result: Operators can perform effectively, aided by the all-in-one design that minimizes points of failure.

4. Healthcare & Medical

Hospitals rely on AV systems in imaging centers, labs, and other critical areas where disruption puts patients at risk.

• Key benefit: Unlike copper, AOCs feature a zero RFI/EMI profile that eliminates electromagnetic interference (critical around sensitive medical equipment).
• Result: Reliable signal transmission in operations where zero downtime is a must.

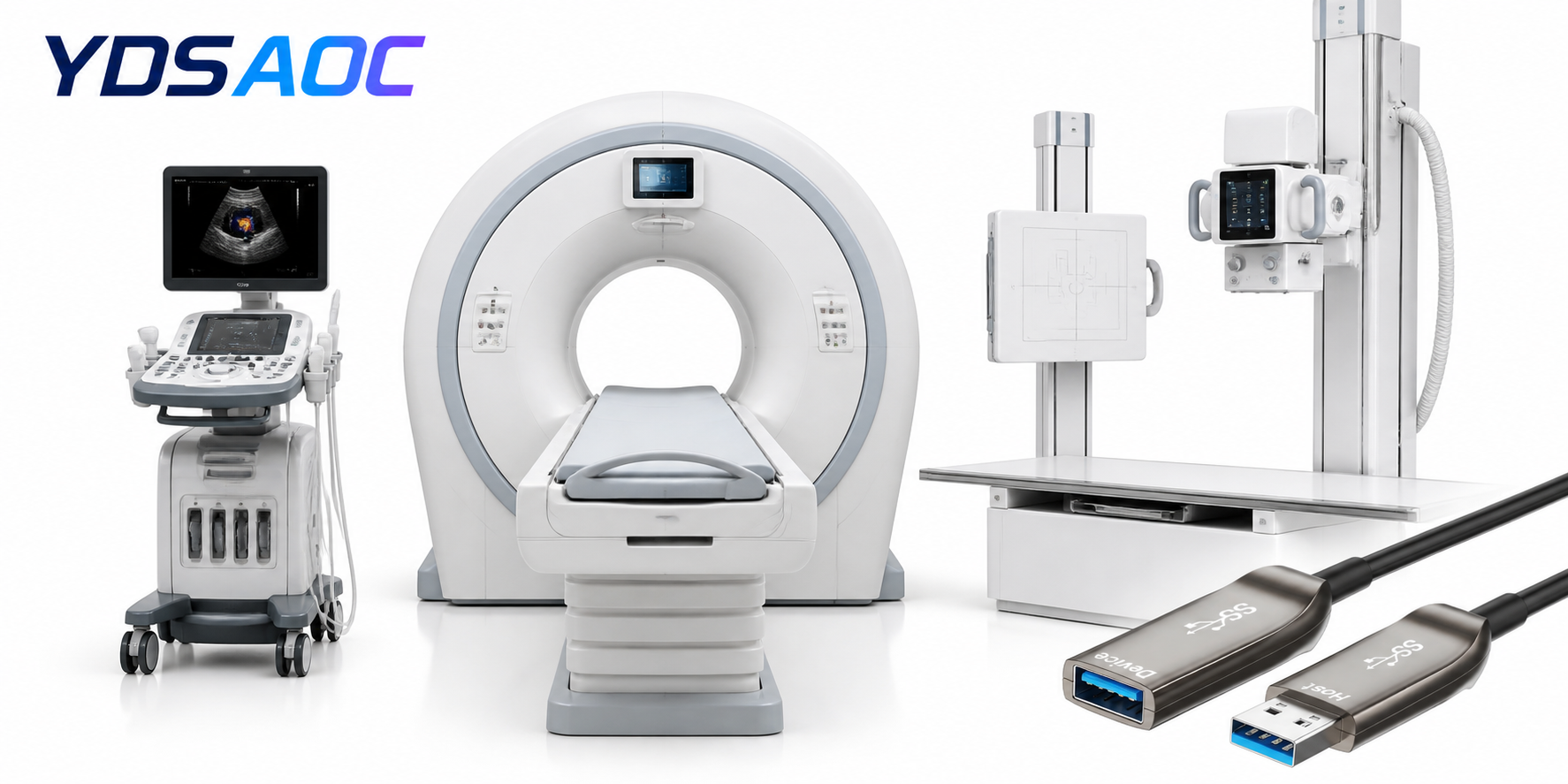

Sub-Applications:

• Medical Imaging: High-speed, low-latency, reliable transmission of high-quality image data between imaging devices, monitors, and workstations — improving diagnostic accuracy.
• MRI Scan Imaging: Tailored fiber solutions for comfortable patient experiences and guided interventions.
• CT Scan Imaging: Custom/retrofitted cables that enhance imaging quality for computer tomography scanners.
• Diagnostics & Treatment: Sensor-based and spectroscopic applications enabling early detection and cost-effective treatment.

5. Education

Lecture halls are large spaces with numerous screens displaying lessons to hundreds of students.

• Problem: Copper cable struggles to extend to many screens without failure-prone extenders in large rooms.
• Key benefit: AOCs extend UHD video hundreds of meters without extra software or devices — ideal for lecture halls with multiple screens.
• Sub-applications:
  • AR/VR: Virtual Reality Headset Cables enable immersive, interactive learning experiences.
  • HD Video Conference Systems: Uninterrupted communication for distance learning.
  • Simulation Systems: Real-time data transfer for fields like medical training.
  • Remote Learning: Seamless online lessons, workshops, and seminars.

6. Digital Signage

Businesses need to inform, persuade, and engage audiences memorably.

• Key benefit: AOCs support the UHD resolutions and color quality needed for captivating displays, with consistent signal transmission ensuring content is always shown without issue.
• Related: LED Digital Signage Systems — high-resolution content delivery, longer distances, and reliable performance for vibrant displays.

7. Conference Rooms

Presenters with limited technical experience must connect devices to screens easily.

• Key benefit: AOCs are a plug-and-play solution requiring no training or technician assistance.

HD Conferencing / Video Conference Systems

• Key benefit: Deliver extended reach, flexible installation, and EMI immunity for high-definition video and audio.
• Support high-resolution video streams, crystal-clear audio, and low-latency transmission.
• Ideal for video conferencing, telepresence, and conference room setups.

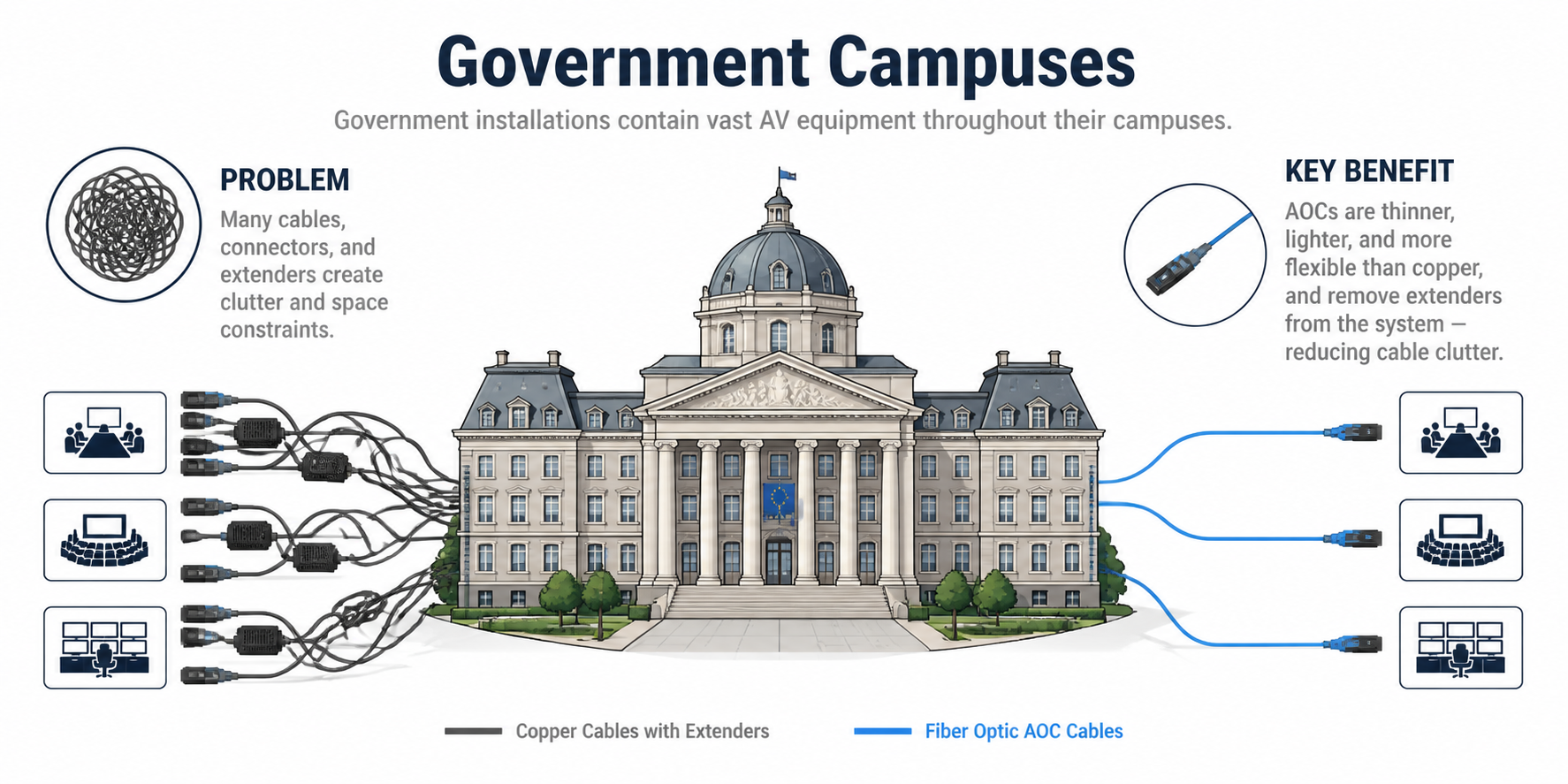

8. Government Campuses

Government installations contain vast AV equipment throughout their campuses.

• Problem: Many cables, connectors, and extenders create clutter and space constraints.
• Key benefit: AOCs are thinner, lighter, and more flexible than copper, and remove extenders from the system — reducing cable clutter.

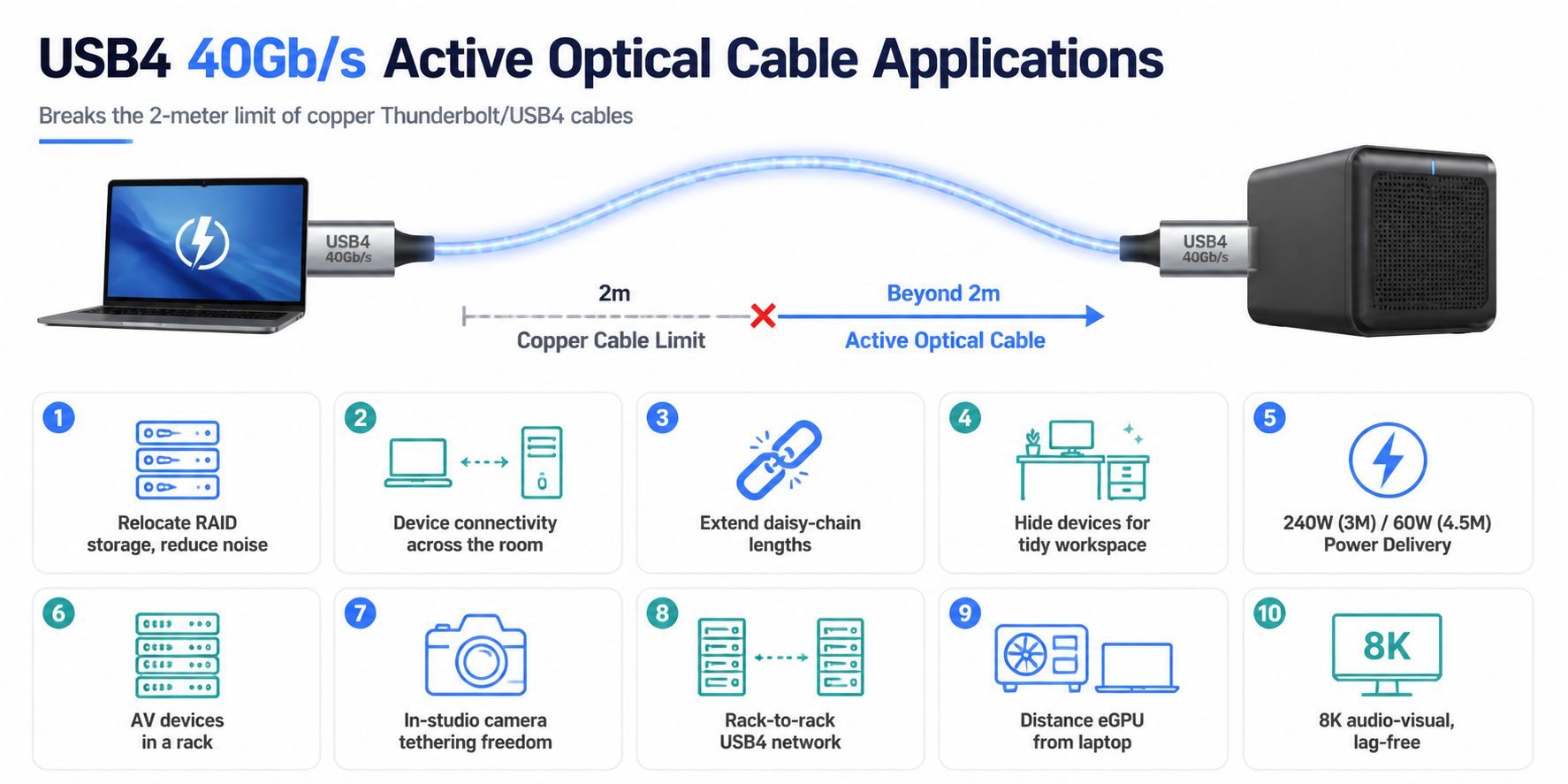

9. USB4 40Gbs Active Optical Cable Applications

This cable breaks the two-meter distance limit of copper Thunderbolt/USB4 cables, enabling:

• Relocating high-performance RAID storage to reduce noise distraction.
• Thunderbolt Share connectivity between devices at greater distances in the same room.
• Expanding device daisy-chain lengths.
• Placing/hiding externally powered devices for a more aesthetic work environment.
• Powering notebooks via Thunderbolt (USB-C) Power Delivery — up to 240W (3M) or 60W (4.5M).
• Enhancing cable management by placing AV devices in a rack.
• Camera freedom with tethering during in-studio shoots.
• Extending Thunderbolt/USB4 network connectivity between rack-mounted devices.
• Gaming: Distancing an eGPU from a laptop for full immersion while freeing room for monitors, mic, and camera.
• Audio Visual: Crystal-clear audio, vibrant visuals, up to 8K resolution, and lag-free transmission.

10. Audio Visual (AV) / Home Theater & Entertainment

• Home Theater: Immersive audio and video with superior signal quality and high-speed transmission.
• Gaming & Cinema Systems: Faster data transfers, reduced latency, exceptional image and sound quality.

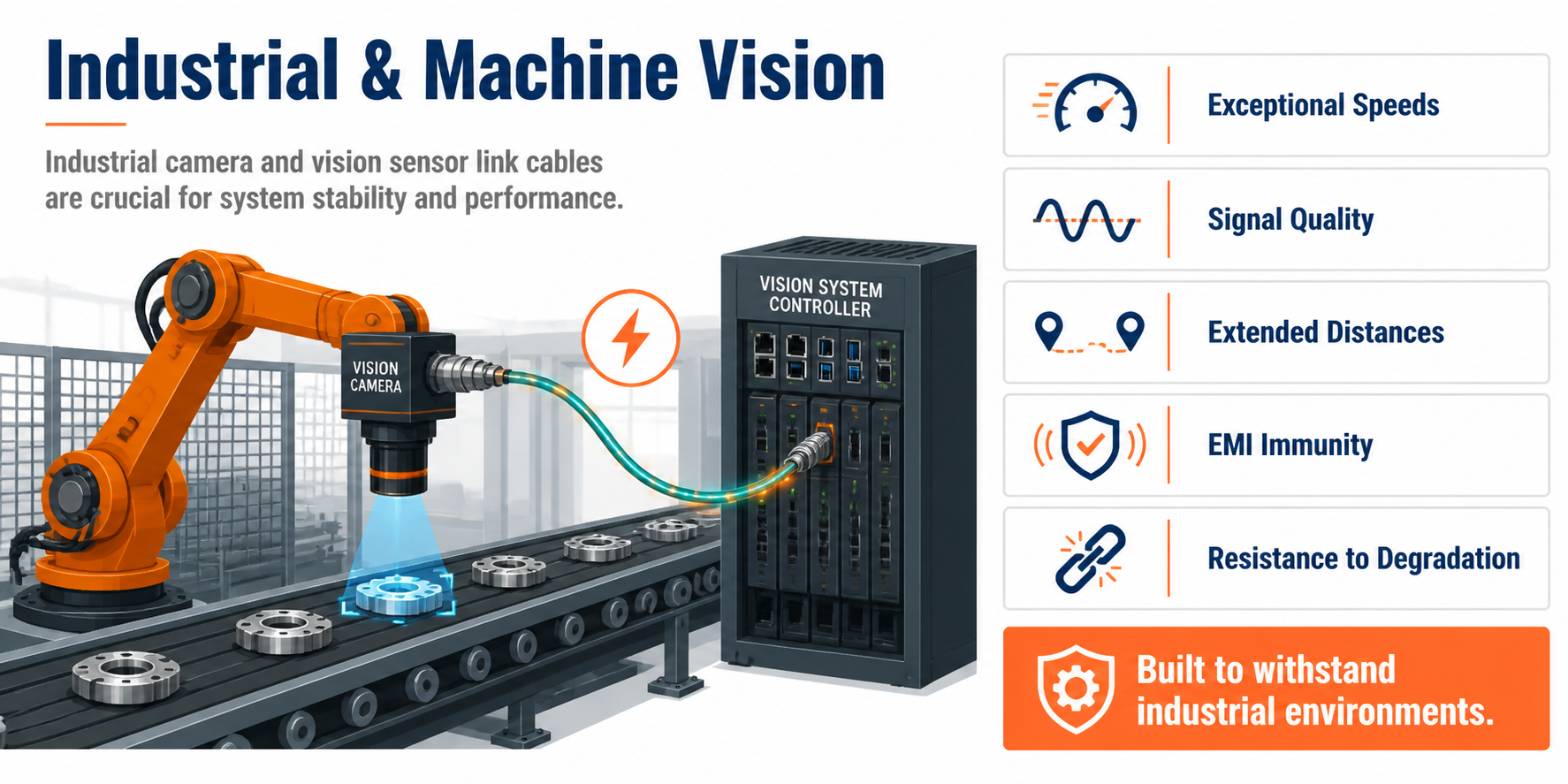

11. Industrial & Machine Vision

Industrial camera and vision sensor link cables are crucial for system stability and performance.

• Key benefit: Active fiber optic USB cables offer exceptional speeds, signal quality, extended distances, EMI immunity, and resistance to degradation — built to withstand industrial environments.

Sub-Applications:

• AOI Inspection (Automated Optical Inspection): USB 3.0 Vision cables detect defects in PCB/soldering production, improving accuracy and reducing manual inspection costs.
• Manufacturing / Pharmacy: Ensures pill blister pack integrity, measures filling levels, verifies barcodes/QR codes, and checks package inserts.
• Printing Industry: Detects color, material, printing, and QR code defects with high resolution, fast frame speed, and long cable length.
• Food Packaging: Ensures package integrity, checks liquid levels and bottle caps, inspects appearance, and provides accurate counting.
• Somatosensory Applications: Extends USB signals for VR, AR, gaming, education, and medical treatment.
• 3D Scanning: Extended distance and ultra-soft cable enable seamless integration of HD cameras and robot arms.

12. Broadcast Systems

• Purpose: Transform broadcasting operations with ultra-high bandwidth, low latency, and reliable transmission for flawless live broadcasting and content distribution.

13. Simulation Systems

• Purpose: Enhance training and simulation with real-time data transfer, low latency, and high-fidelity visuals and audio for realistic, immersive simulations.

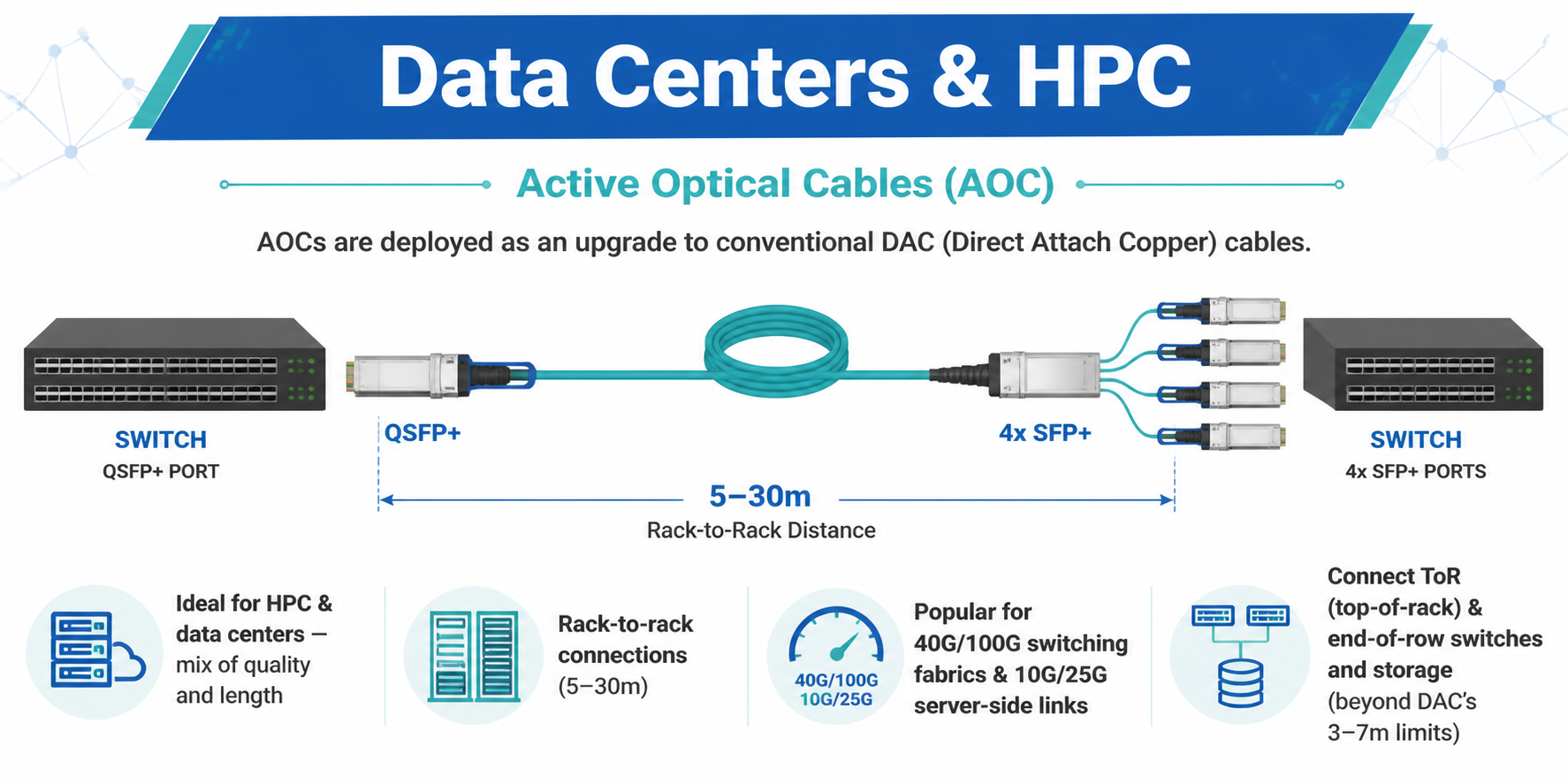

14. Data Centers & High-Performance Computing (HPC)

AOCs are deployed as an upgrade to conventional DAC (Direct Attach Copper) cables.

• Ideal for high-performance computing and data centers where a mix of quality and length is required.
• Rack-to-rack connections (5–30 meters).
• Popular in planning 40G/100G switching fabrics and 10G/25G server-side connections.
• Connect top-of-row (ToR) and end-of-row switches to each other and to storage subsystems (exceeding DAC's 3–7m limits).
• Example: A 40G QSFP+ to 4×SFP+ AOC connects two switches.
• Common in PCs, HDTV, electronics, and supercomputers/mainframes.

15. Consumer Electronics & IT

• High-resolution displays, virtual reality devices, and high-bandwidth applications like gaming and streaming.
• Data centers: Rapid interconnectivity between servers, storage devices, and networking equipment with low-latency connections.

16. Aerospace, Defense & Automotive

• AOCs find applications in these sectors where high-speed and robust connectivity are vital.

Summary of Core AOC Benefits

Benefit	Description
Reliability	All-in-one design reduces points of failure
Long distance	Extends UHD video and data over hundreds of meters
EMI/RFI immunity	Zero electromagnetic interference profile
High bandwidth	Supports 10Gbps–40Gb/s data rates and 4K/8K video
Flexible installation	Thinner, lighter, more flexible than copper
Power delivery	Up to 240W via USB4/Thunderbolt
Plug-and-play	No training, software, or technicians required
