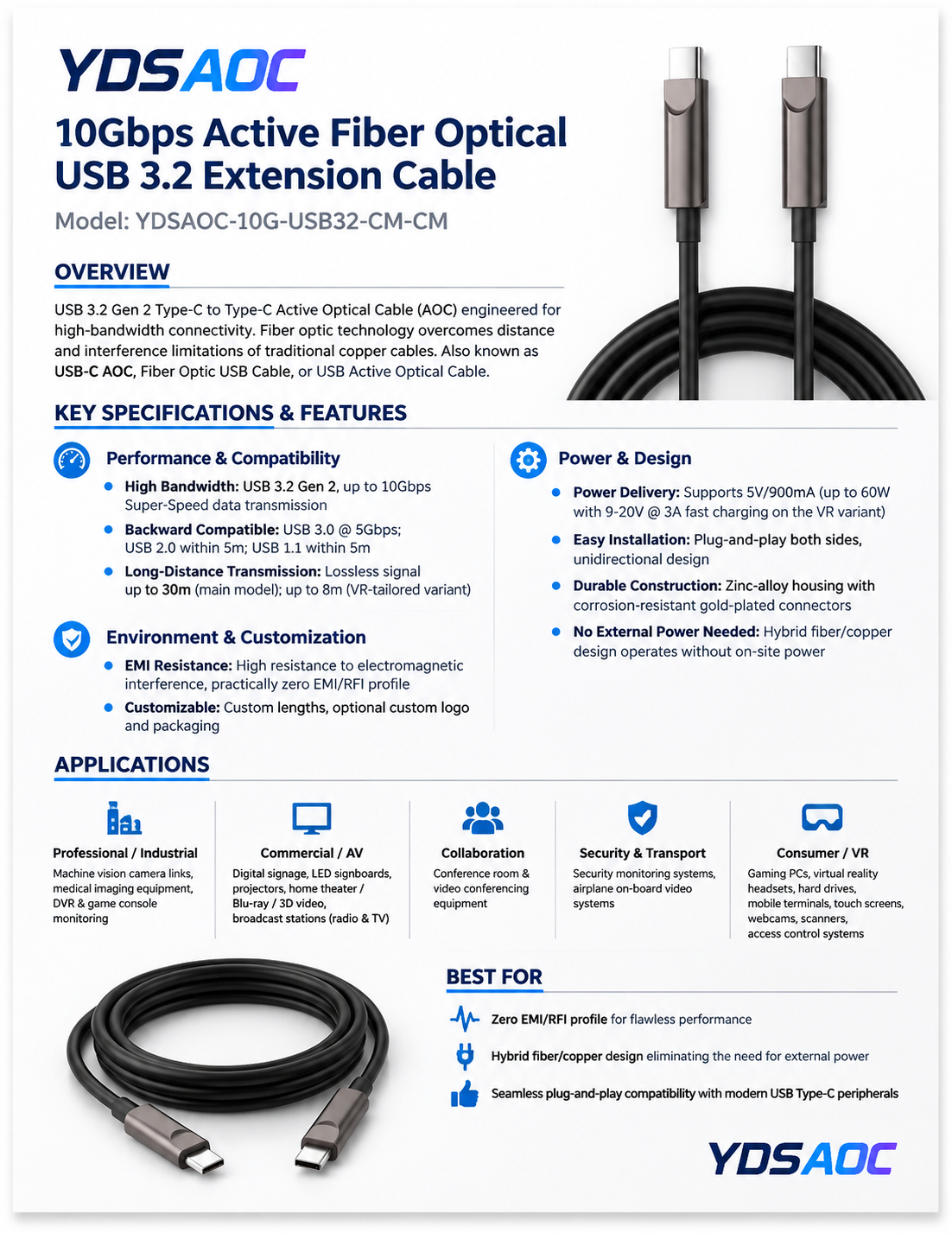

Overview

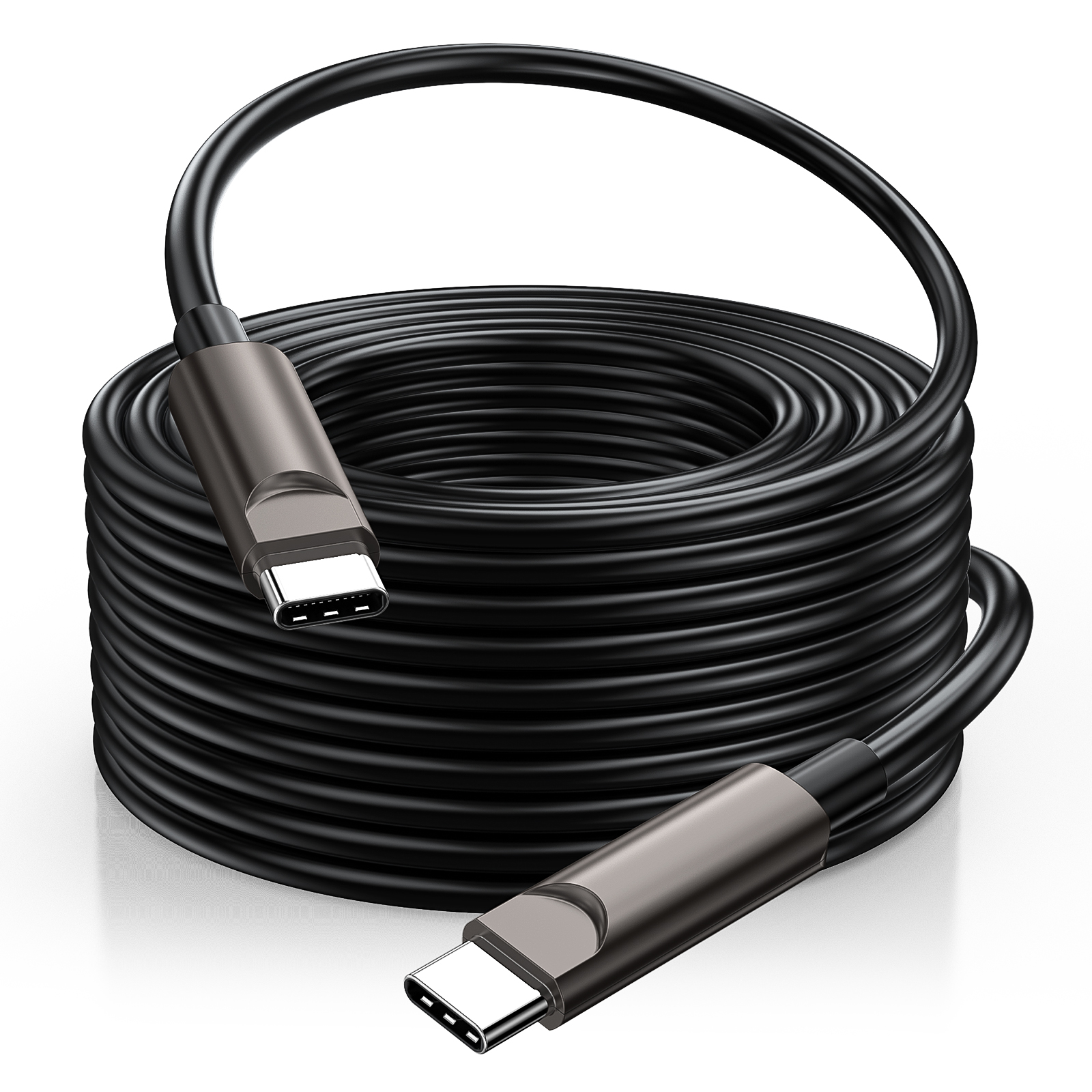

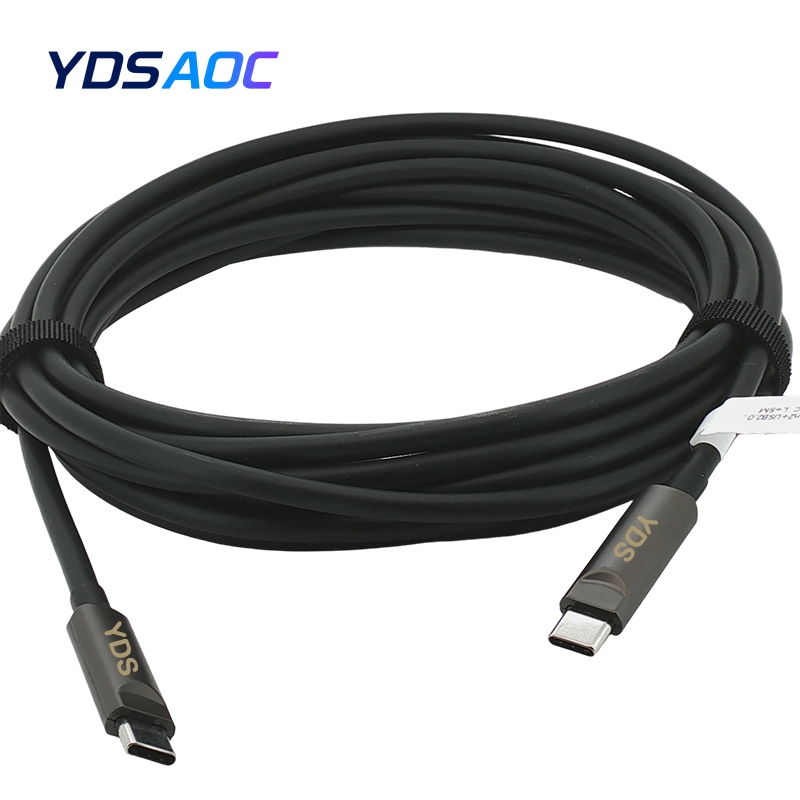

YDSAOC-10G-USB32-CM-CM is a USB 3.2 Gen 2 Type-C to Type-C Active Optical Cable (AOC) engineered for high-bandwidth connectivity. By combining fiber optic technology with USB connectivity, it overcomes the distance and interference limitations of traditional copper cables while delivering reliable, high-performance connections. It is also referred to as a USB-C AOC, Fiber Optic USB Cable, or USB Active Optical Cable.



Key Specifications & Features



Performance & Compatibility

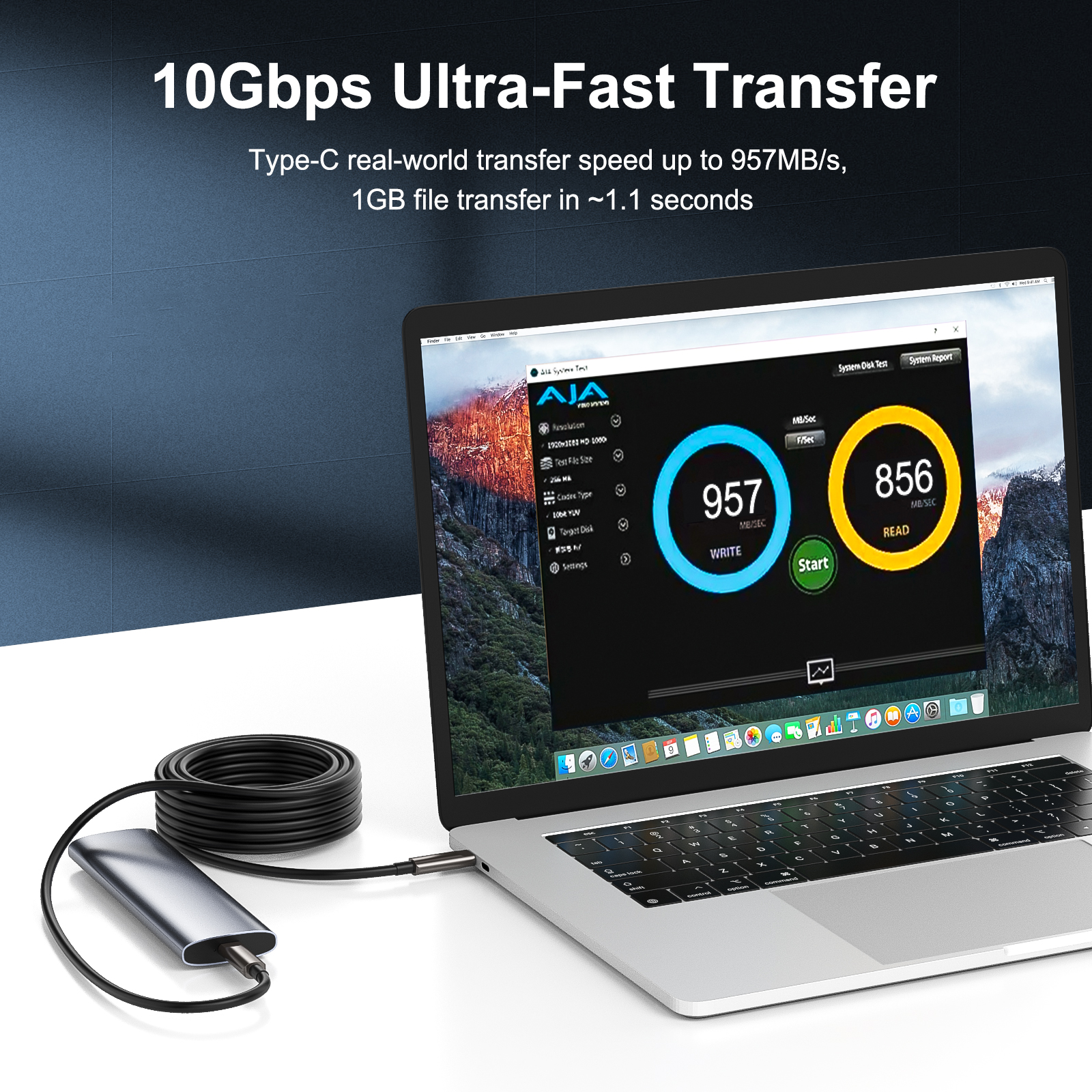

• High Bandwidth: Complies with USB 3.2 Gen 2 standards, delivering up to 10Gbps Super-Speed data transmission
• Backward Compatible: Supports USB 3.0 @ 5Gbps, and USB 2.0 within 5m, and USB 1.1 within 5m

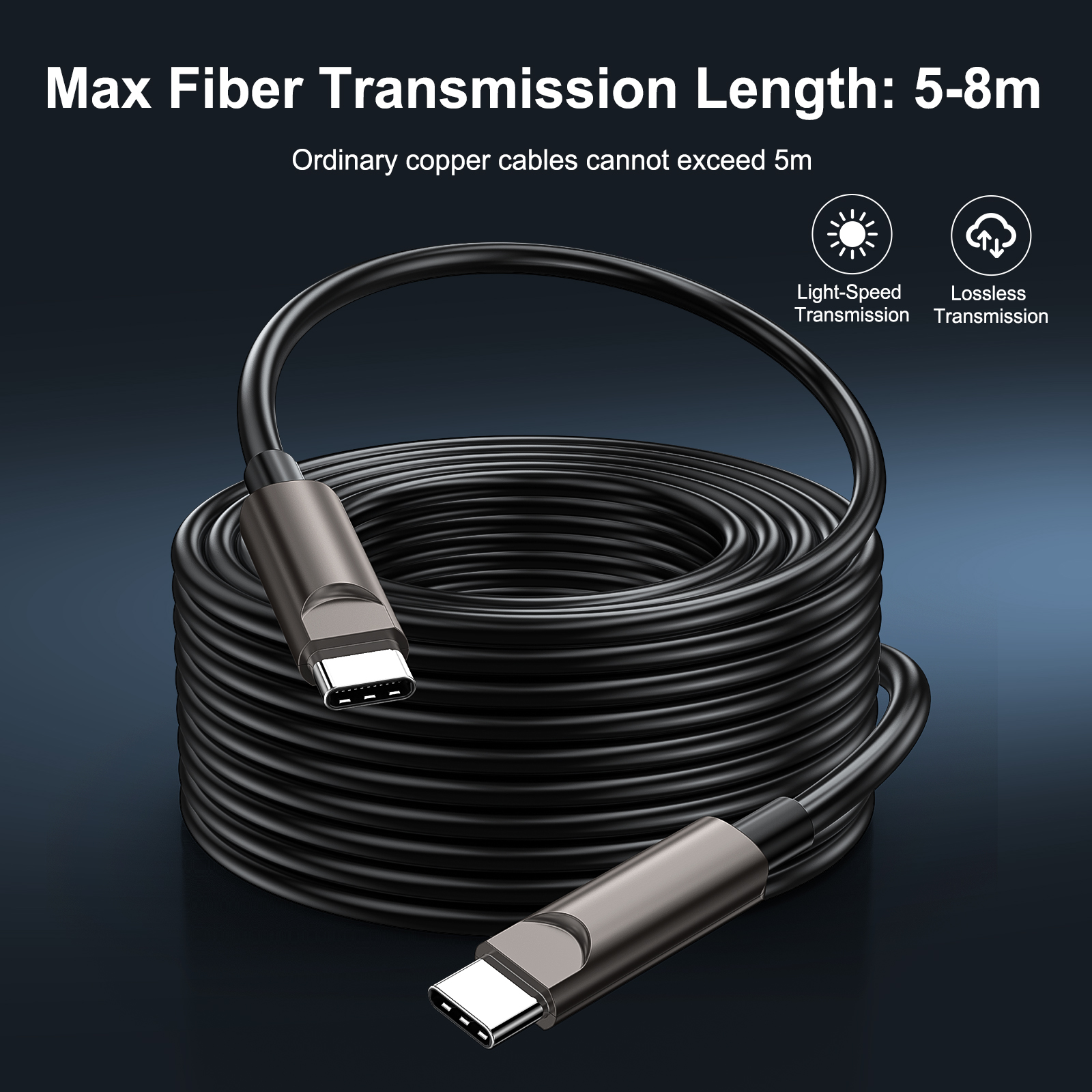

• Long-Distance Transmission: Delivers lossless signals over extended distances (up to 30m for the main model; up to 8m for the VR-tailored variant)



Power & Design

• Power Delivery: Supports 5V/900mA (up to 60W with 9–20V@3A fast charging on the VR variant)
• Easy Installation: Plug-and-play on both sides with a unidirectional design—no complicated setup required

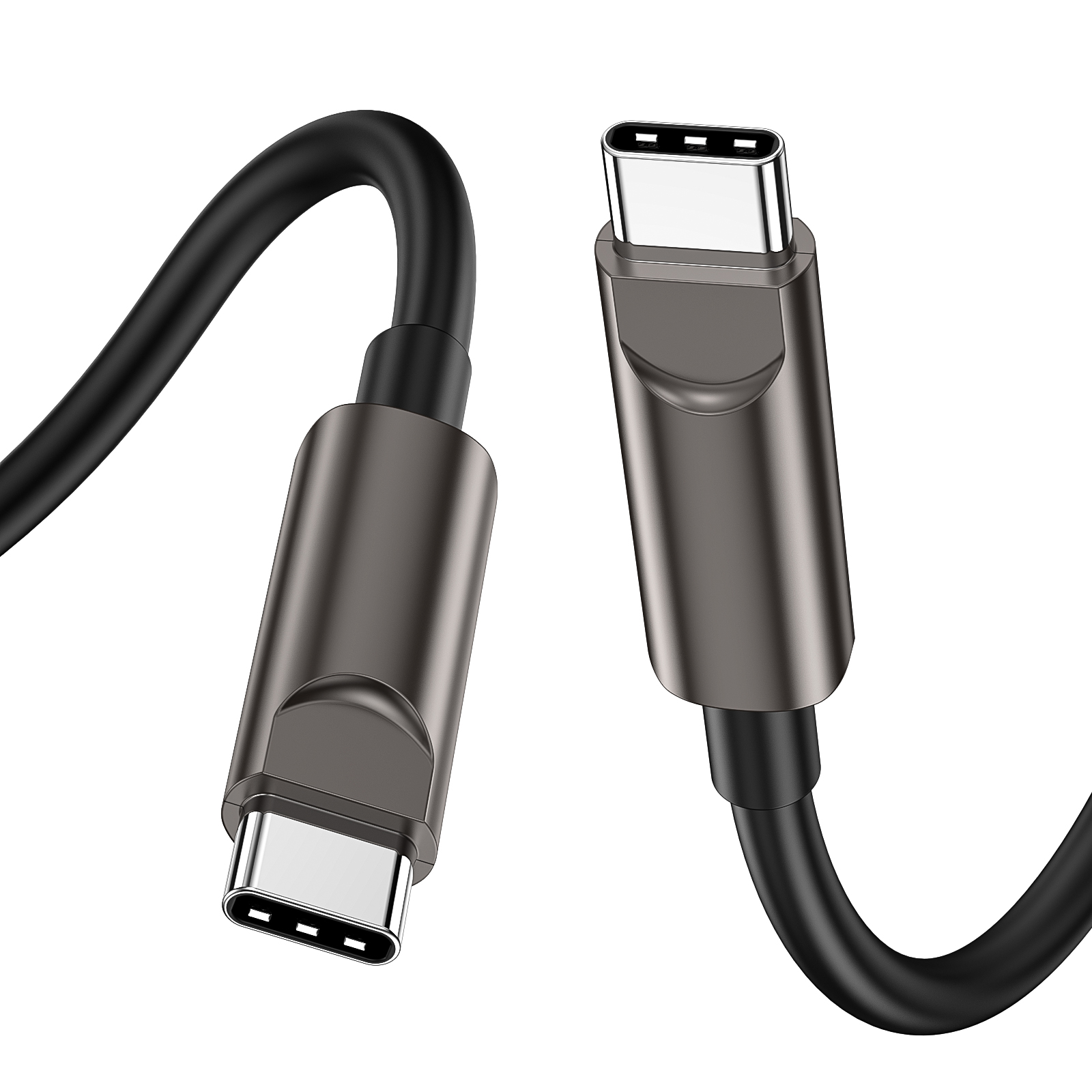

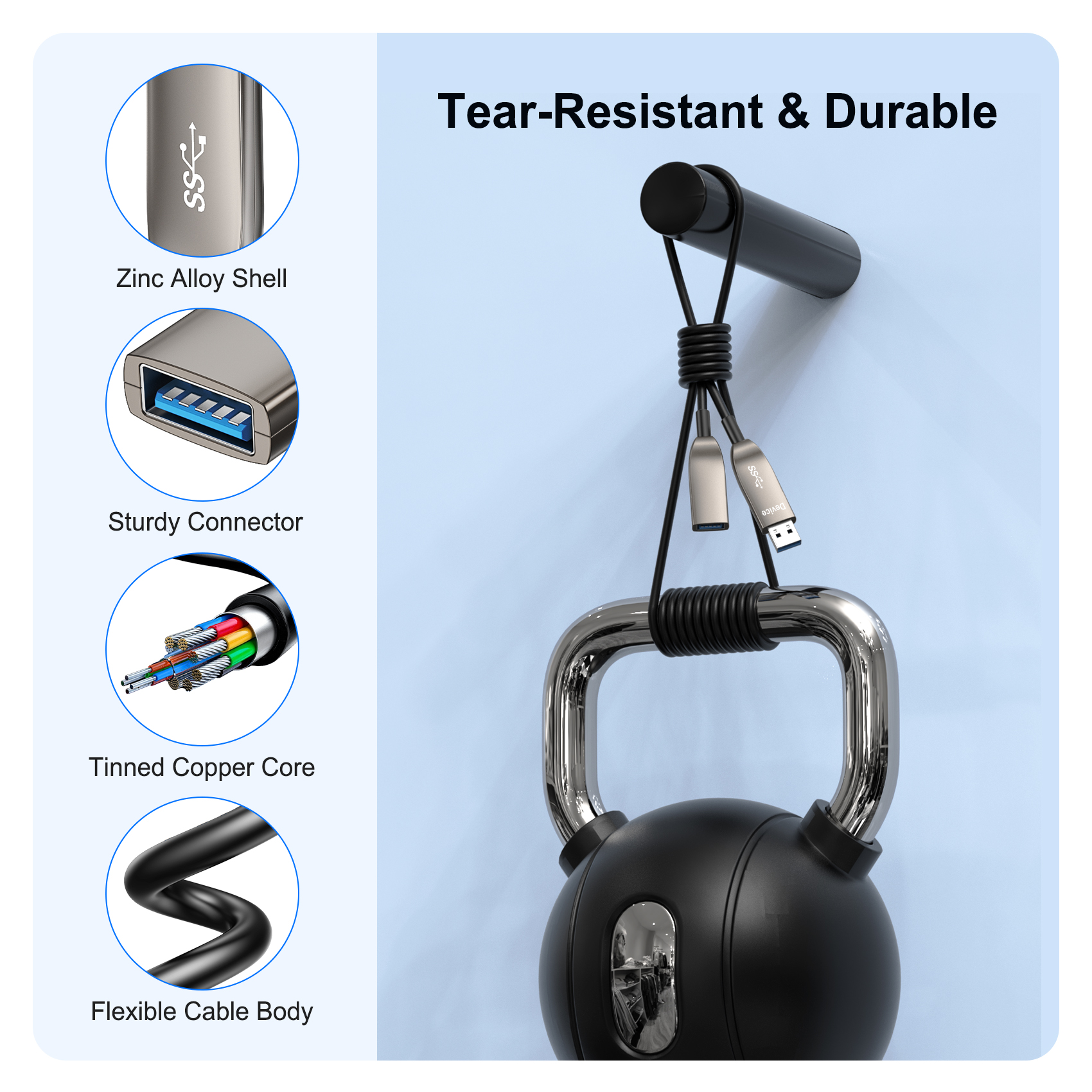

• Durable Construction: Zinc-alloy housing with corrosion-resistant gold-plated connectors
• No External Power Needed: Hybrid fiber/copper design operates without on-site power



Environment & Customization

• EMI Resistance: High resistance to electromagnetic interference for a safe, radiation-free environment with a practically zero EMI/RFI profile
• Customizable: Available in custom lengths, with optional custom logo and packaging



Applications

The cable suits a broad range of demanding use cases:

• Professional/Industrial: Machine vision camera links, medical imaging equipment, DVR & game console monitoring
• Commercial/AV: Digital signage, LED signboards, projectors, home theater/Blu-ray/3D video, broadcast stations (radio & TV)
• Collaboration: Conference room & video conferencing equipment
• Security & Transport: Security monitoring systems, airplane on-board video systems

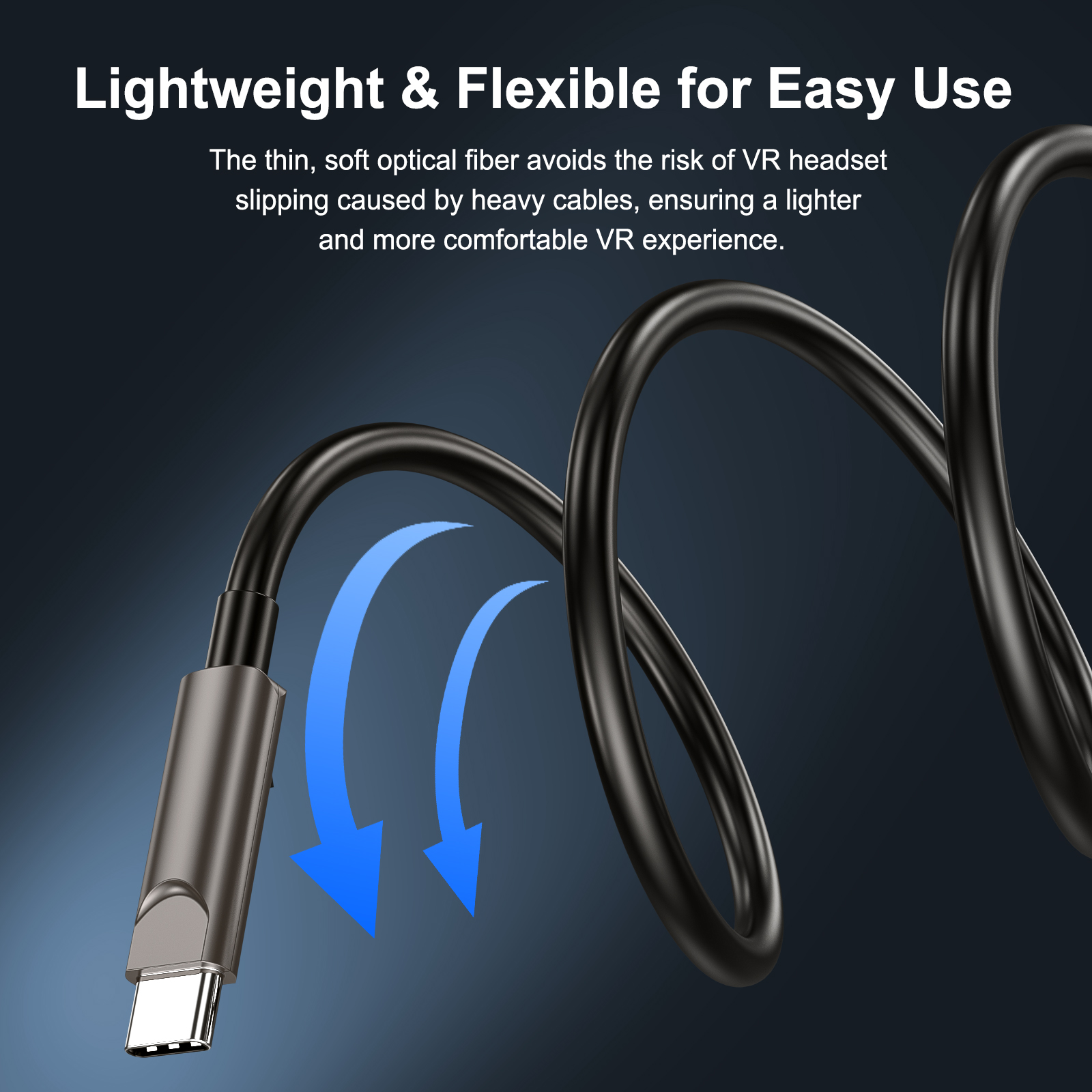

• Consumer/VR: Gaming PCs, virtual reality headsets, hard drives, mobile terminals, touch screens, webcams, scanners, and access control systems



Best For

This cable is ideal for environments requiring extended data transmission distances without on-site power, offering high reliability in electromagnetically complex settings.

Specific strengths include:

• Zero EMI/RFI profile for flawless performance
• Hybrid fiber/copper design eliminating the need for external power
• Seamless plug-and-play compatibility with modern USB Type-C peripherals

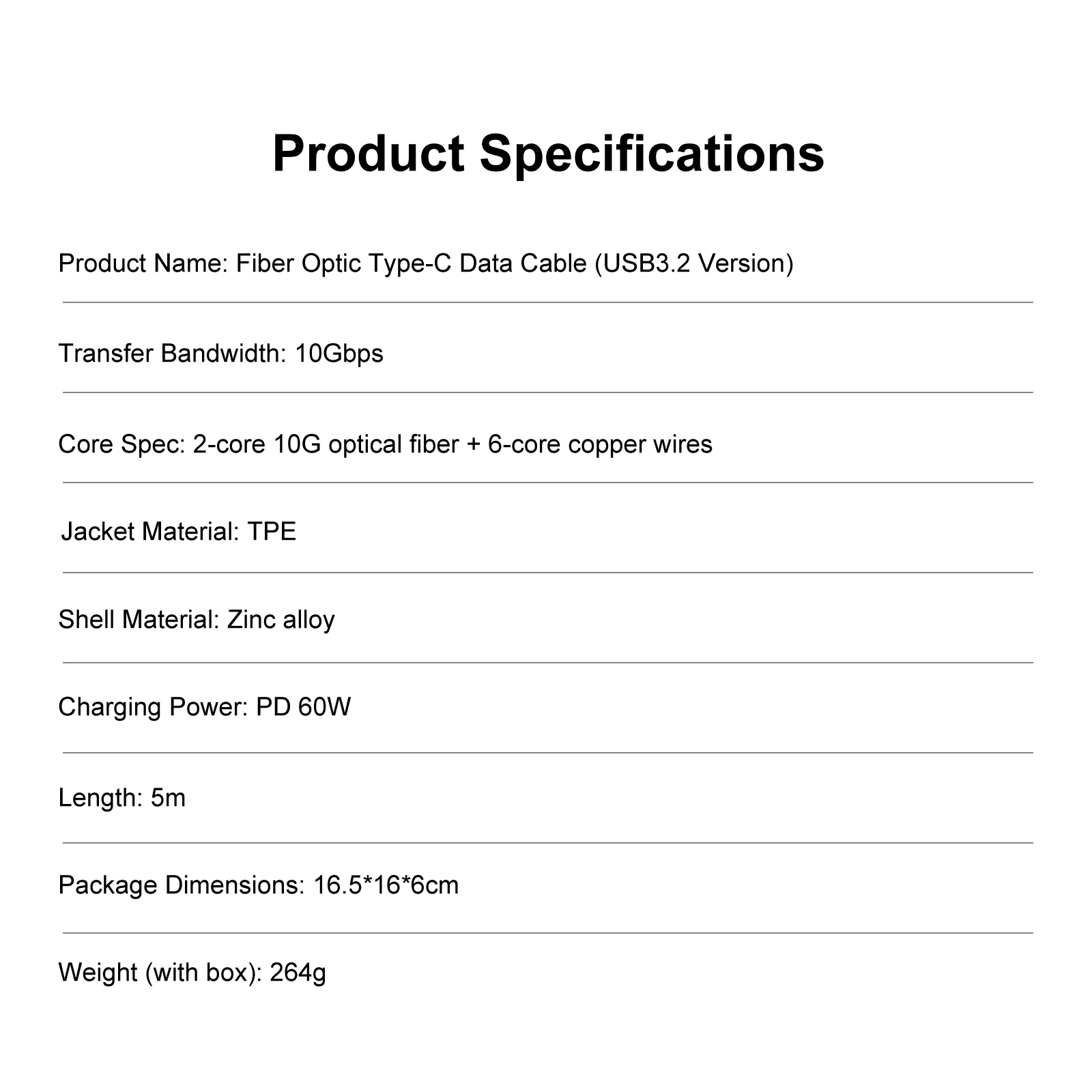

YDSAOC Model Number	YDSAOC-10G-USB32-CM-CM
Order Part Numbers	YDSAOC-10G-USB32-CM-CM-1003 YDSAOC-10G-USB32-CM-CM-2006 YDSAOC-10G-USB32-CM-CM-50015 YDSAOC-10G-USB32-CM-CM-100030 YDSAOC-10G-USB32-CM-CM-150045
Length	1m(3ft), 2m(6ft), 5m(15ft), 10m(30t), 15m(45ft)
Maximum Support Length	up to 30m(90ft) for main model, upto 8m for VR
Maximum Data Speed	up to 10Gbps

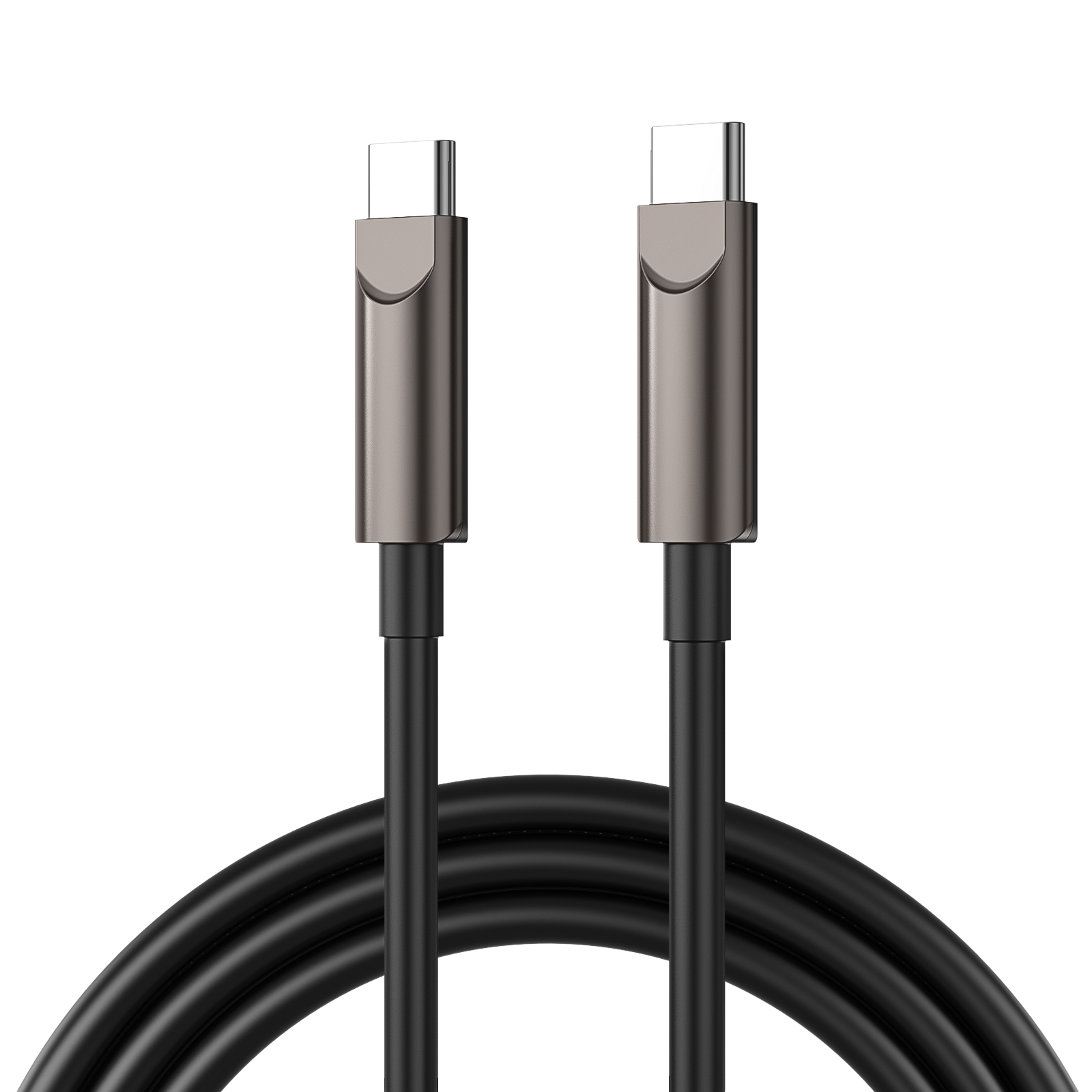

Connector A	USB 3.2 Type-C Male
Connector B	USB 3.2 Type-C Male
USB Protocols	USB 3.2 Gen 2, USB 3.1 Gen 2, USB 3.0, USB 2.0/1.1
Support Functions	Data Transfer, Power Transfer

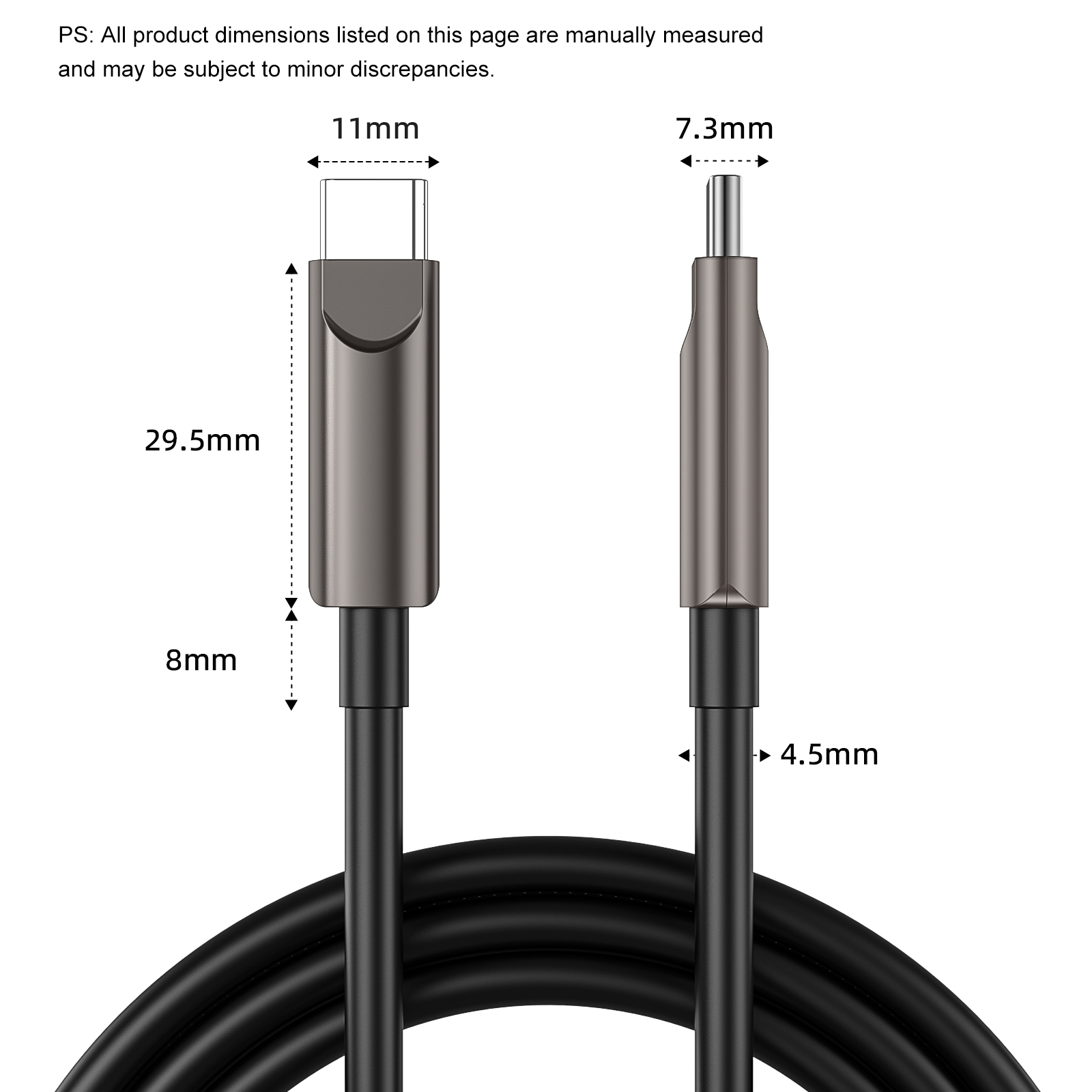

Cable Diameter	4.6mm
Cable Jacket Type	TPE
Cable Color	Black

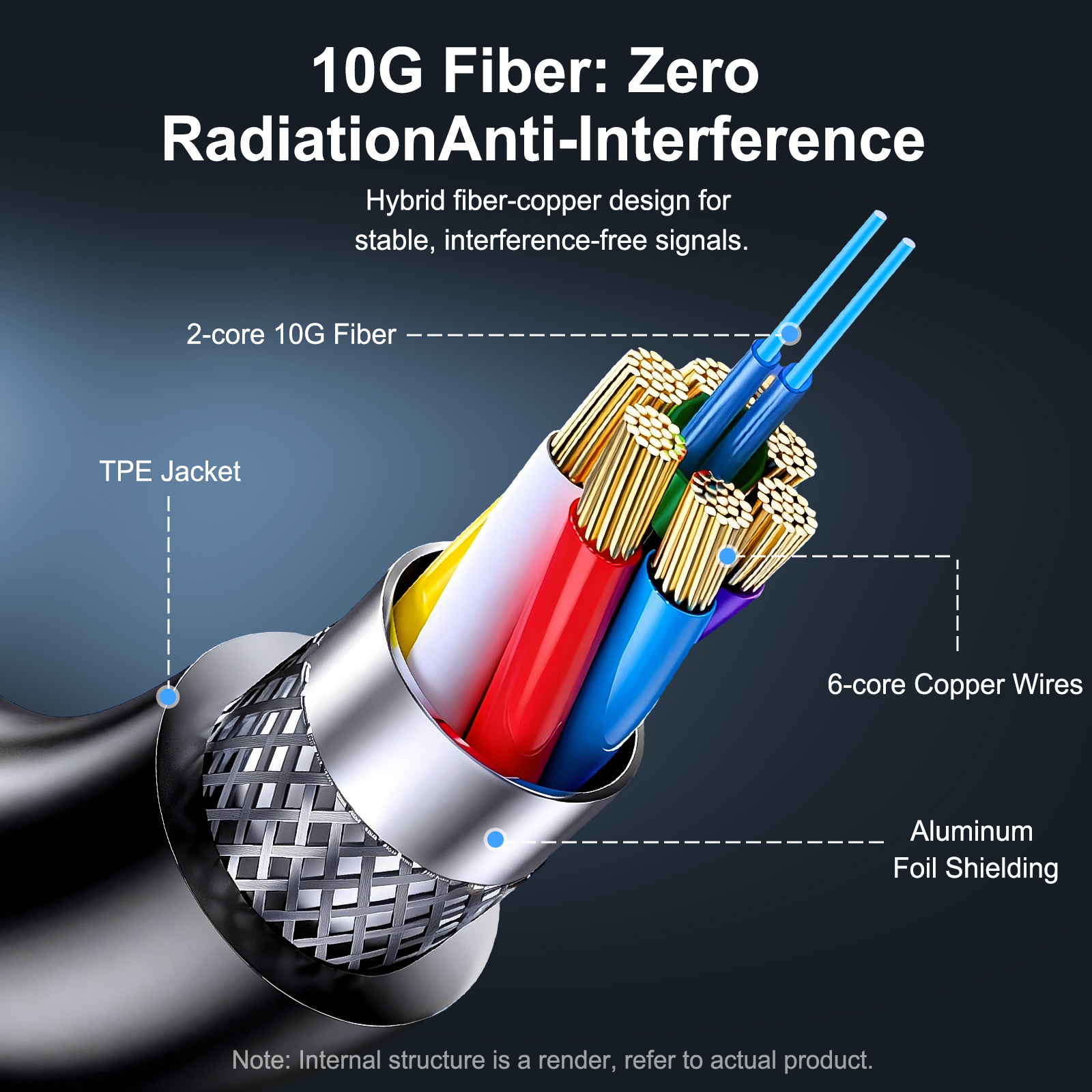

AOC Constructions	Hybrid, 2x Optical Fiber, 6x Copper Wire
Minimum Bending Radius	50mm
Operating Temperature	0ºC to 70ºC
Storage Temperature	–40ºC to 85ºC
Installation Direction	Bidirectional, No Check on Directions
Power Connect	No External Power is Required
Support Fast Charging	Maximum PD 60W, or PD 100W < 5m(15ft)
