Overview

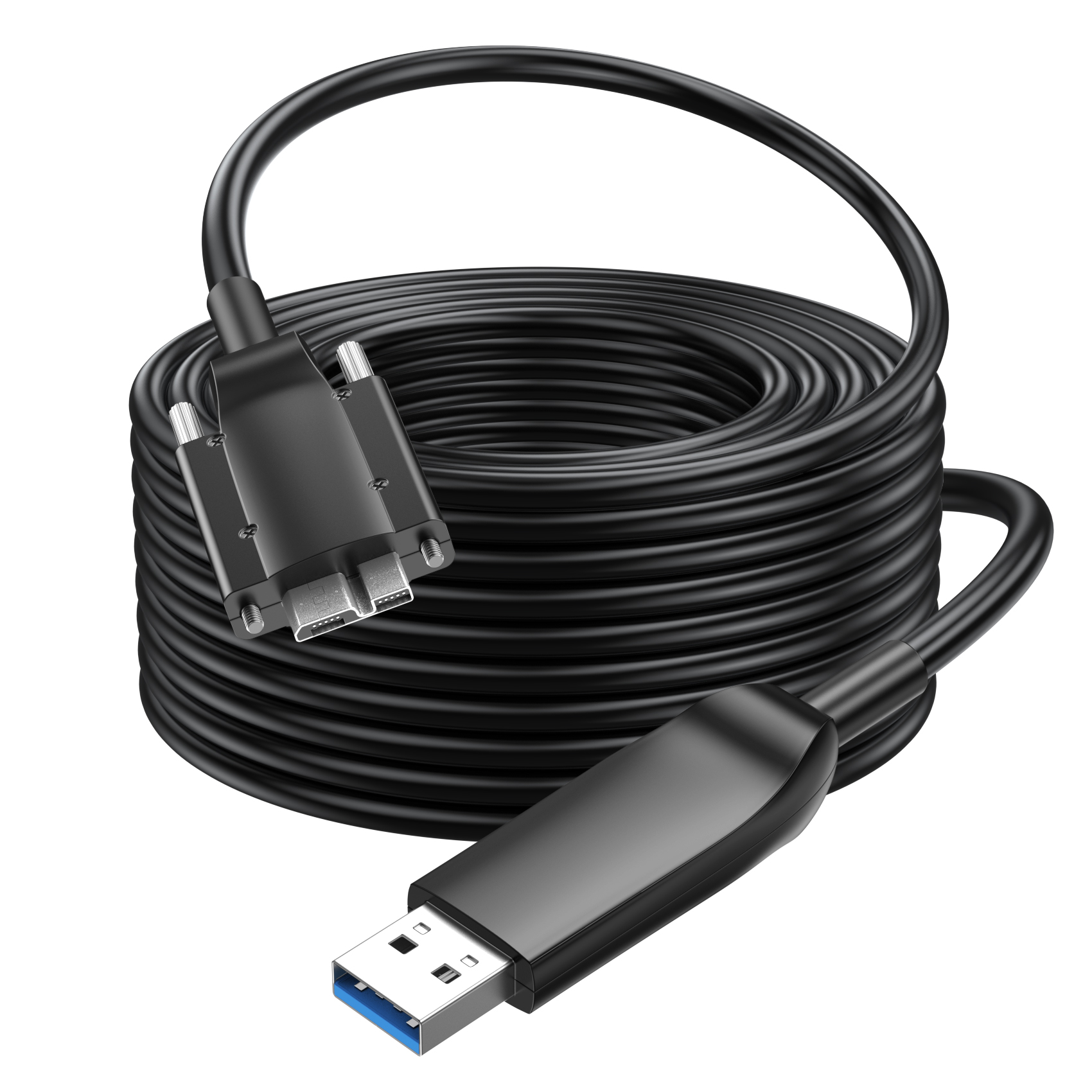

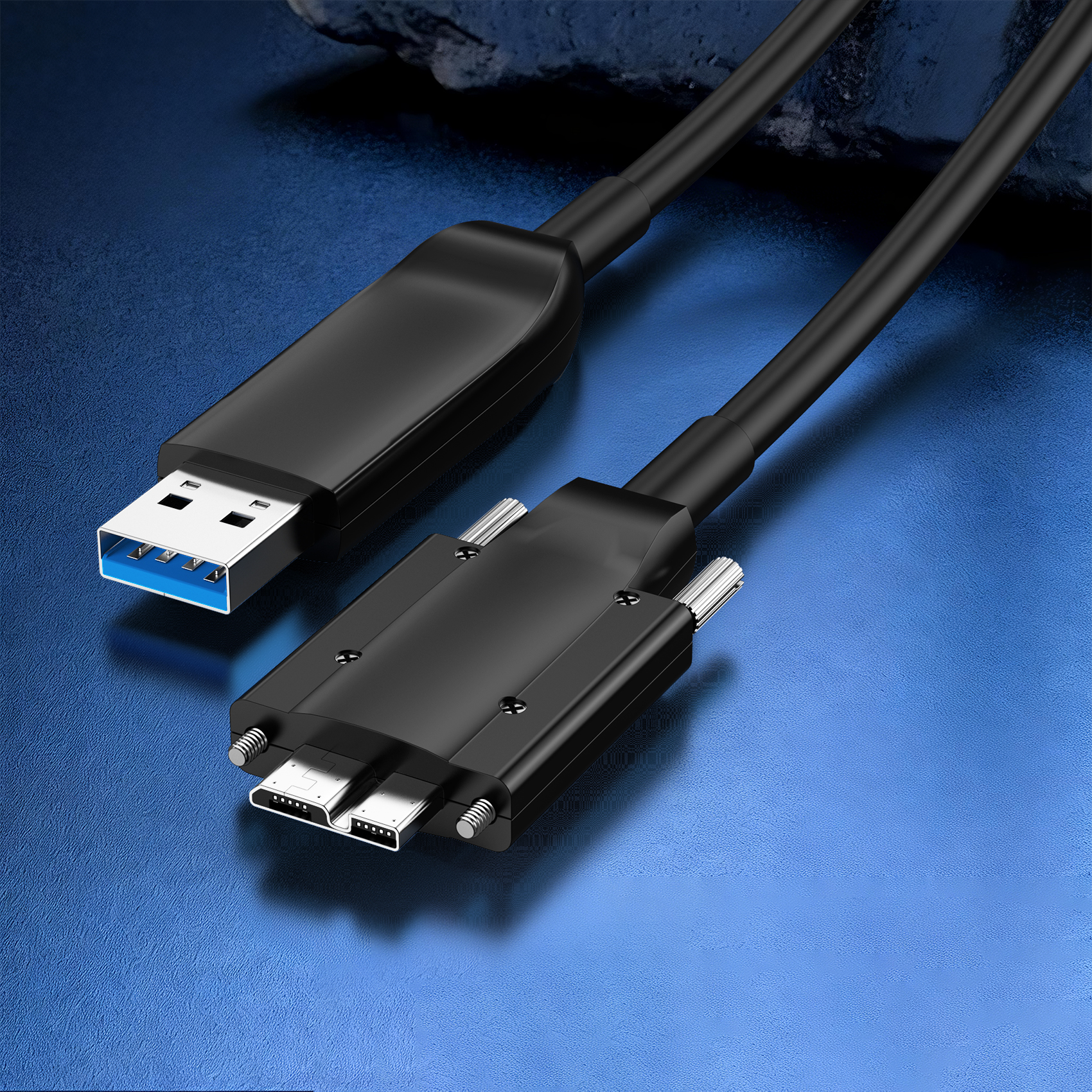

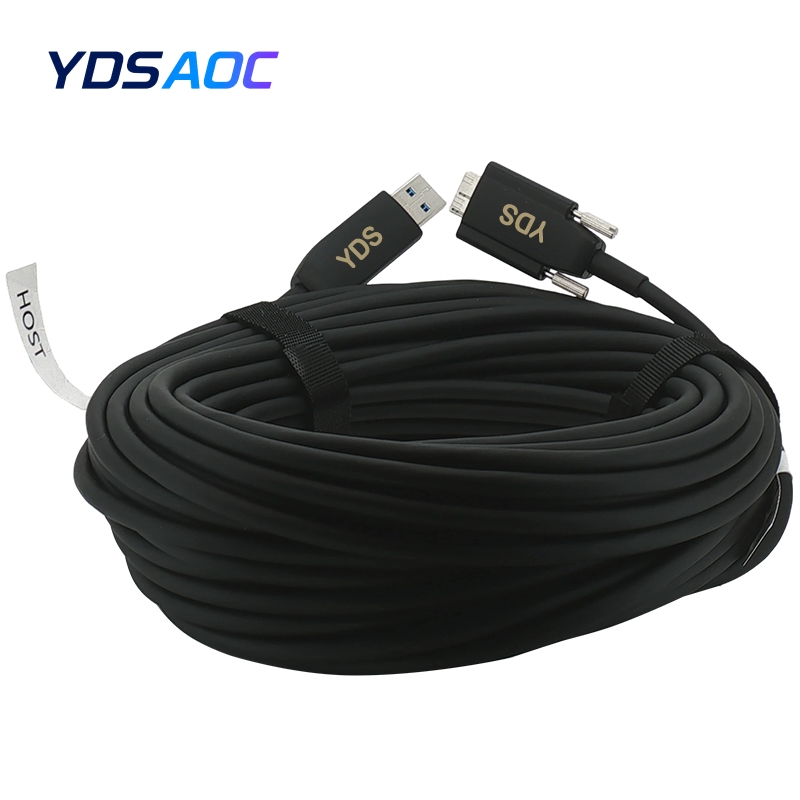

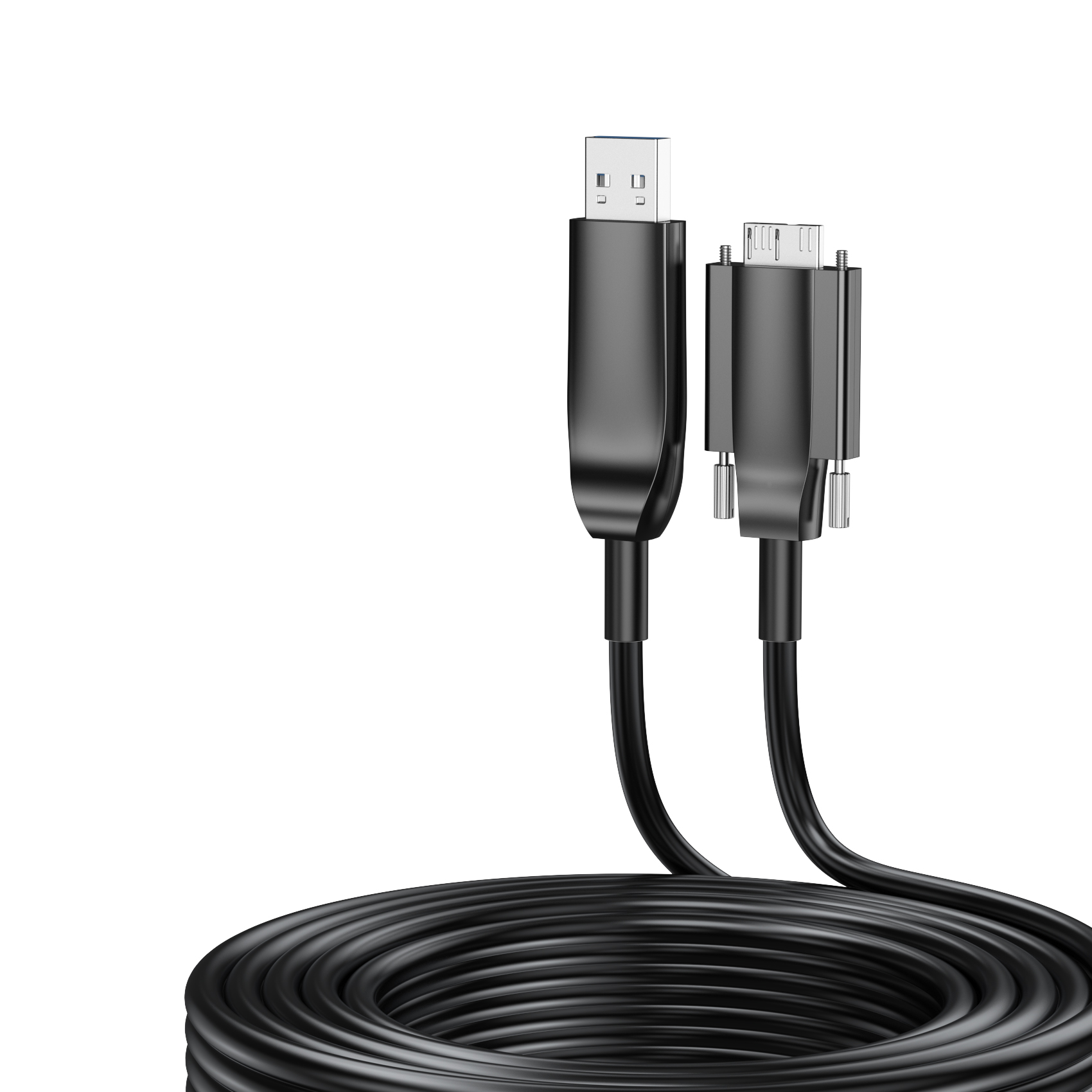

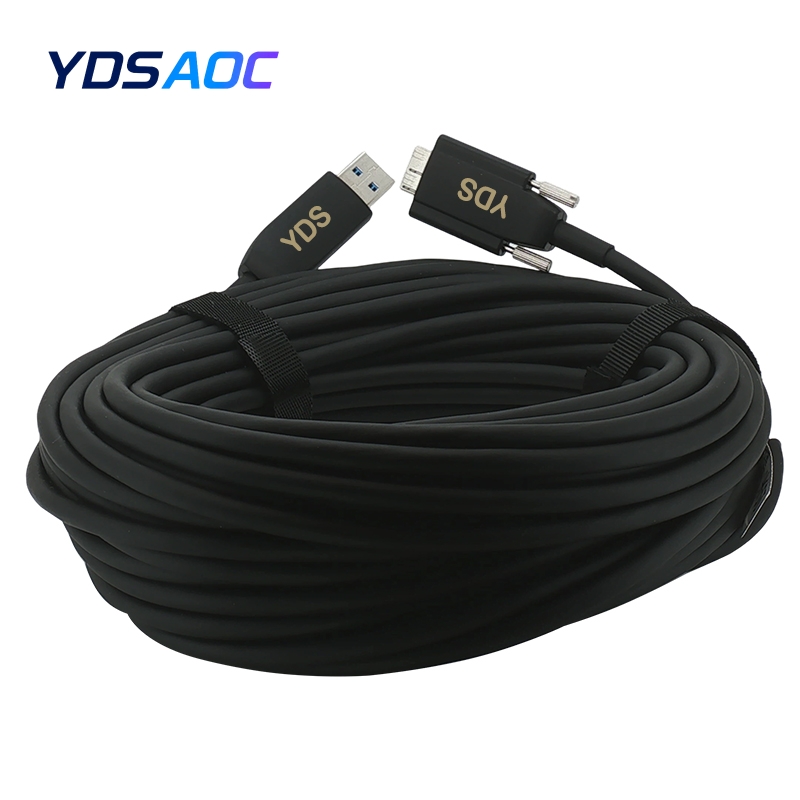

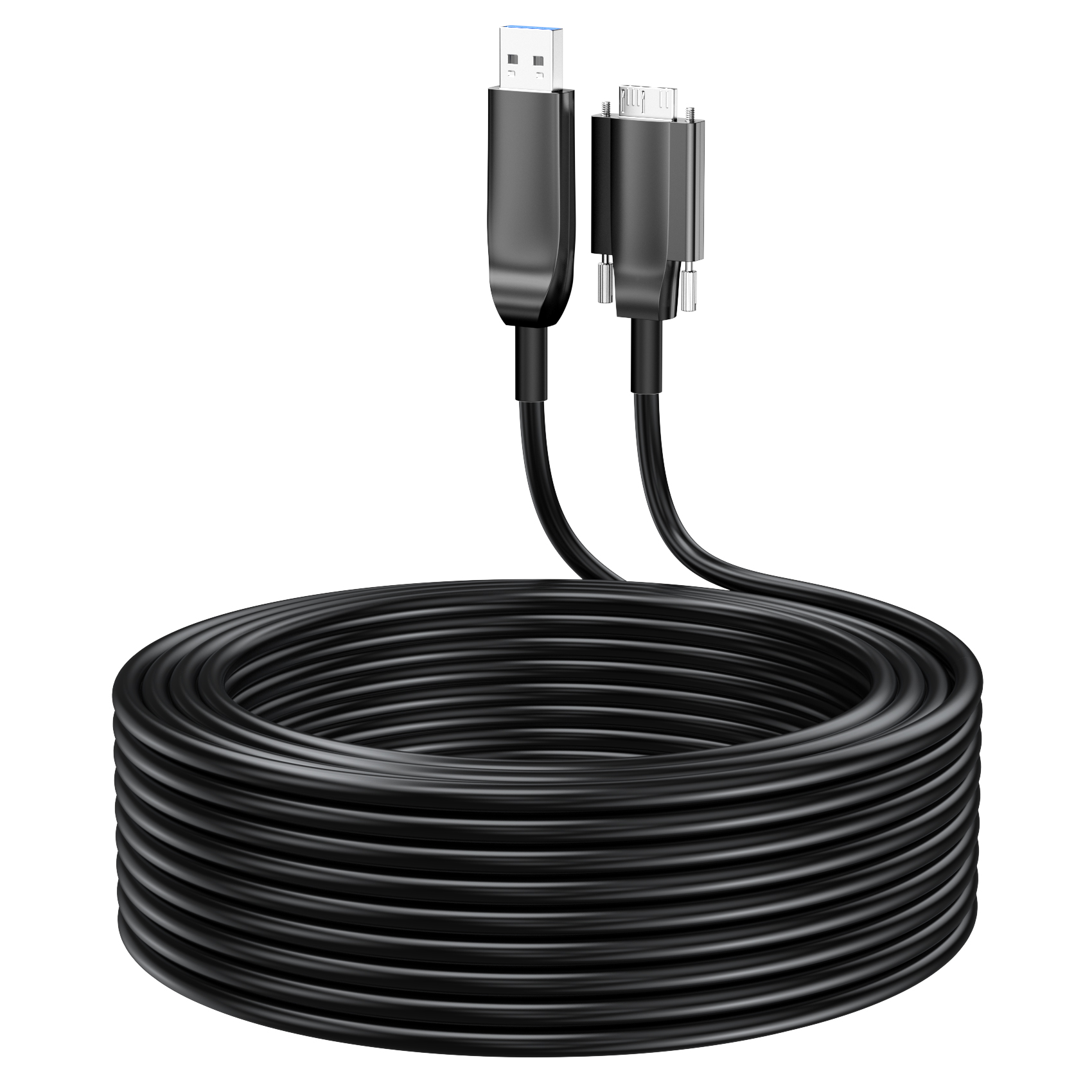

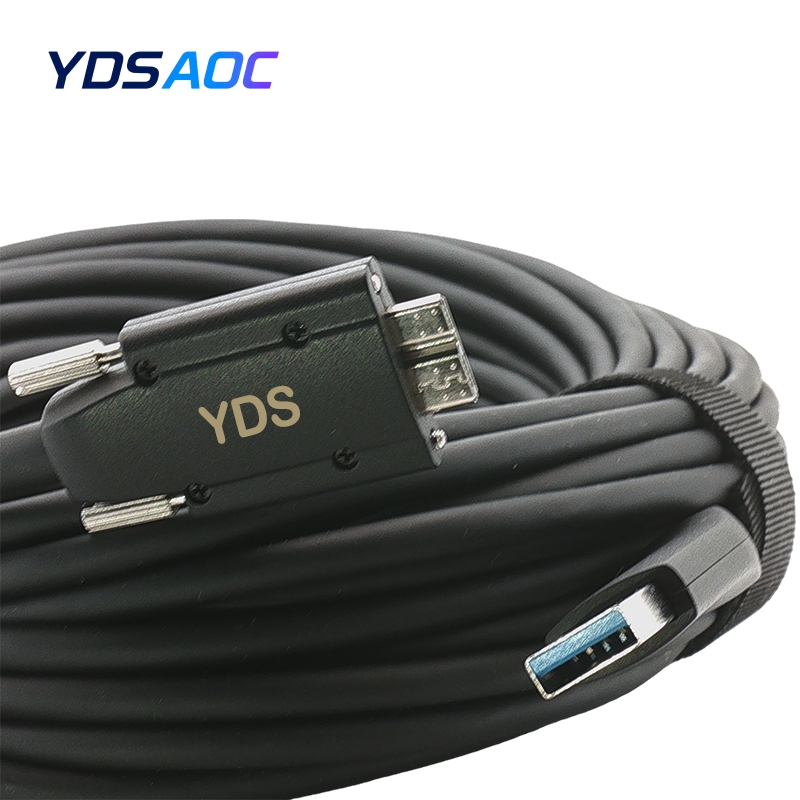

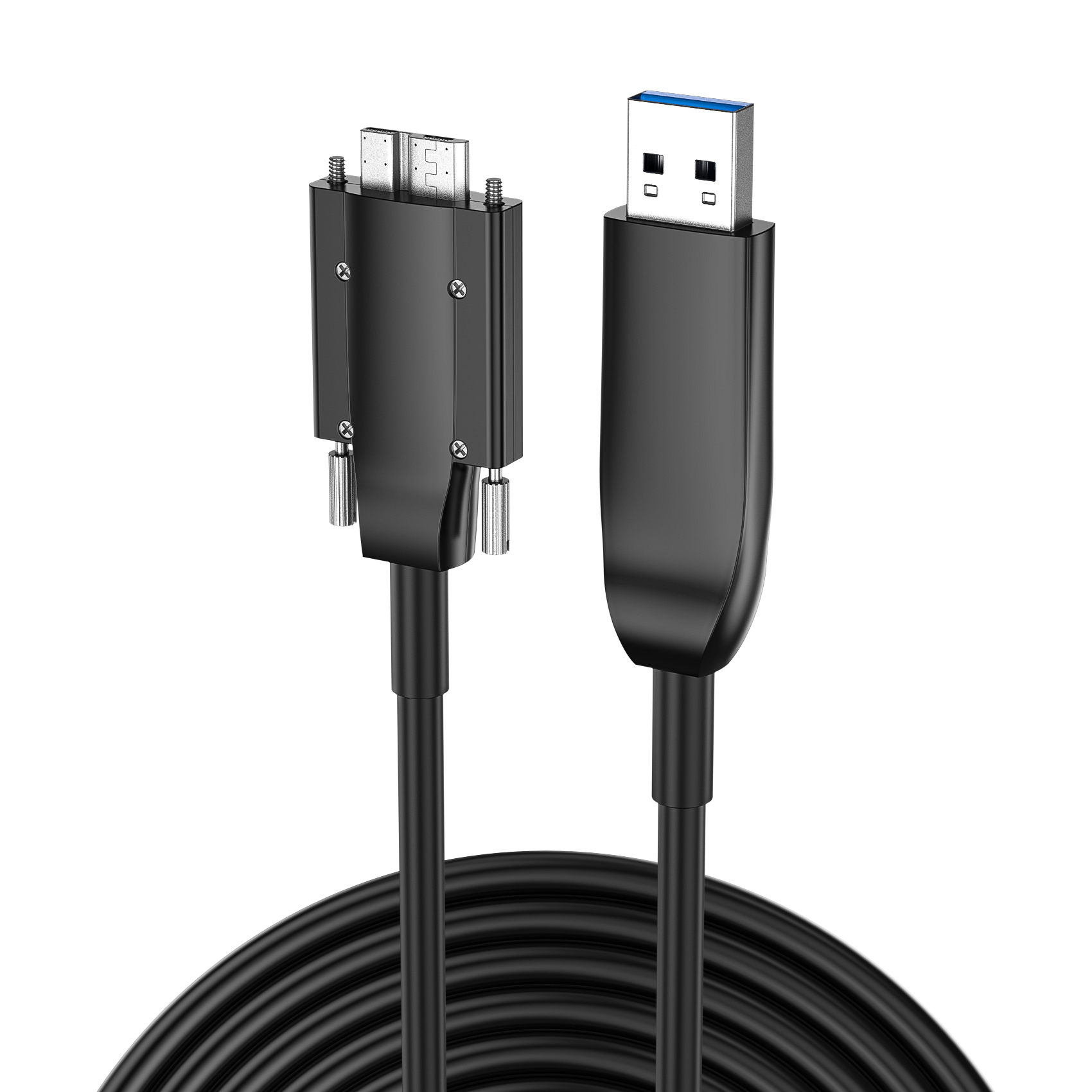

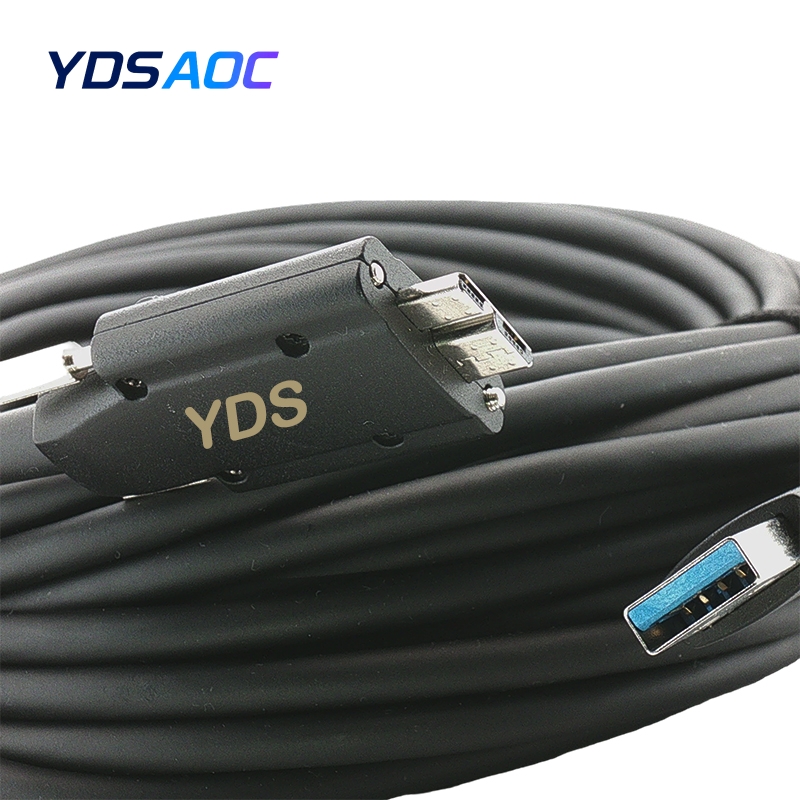

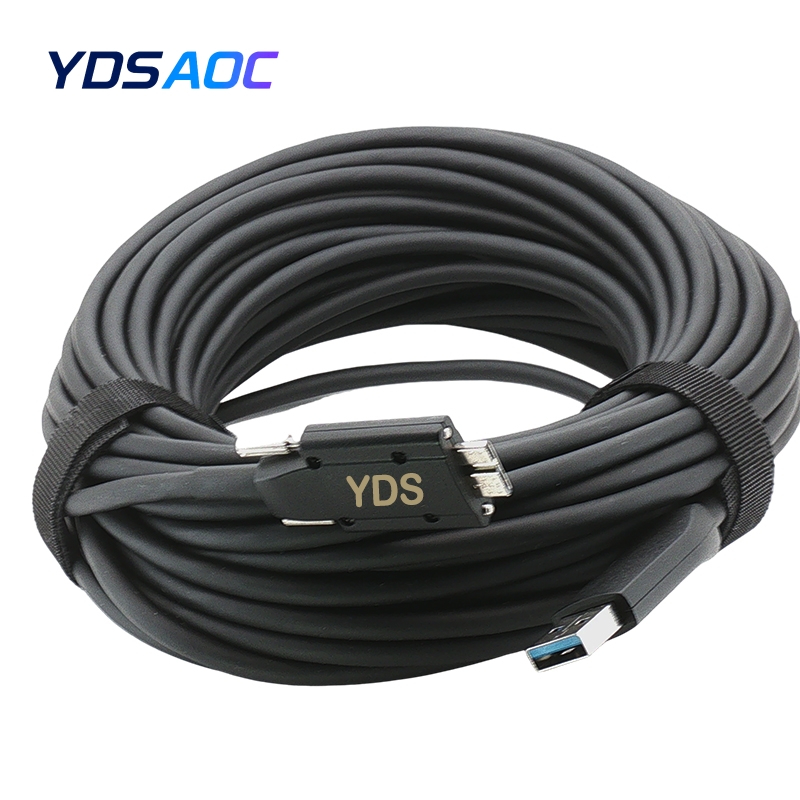

YDSAOC-5G-USB3-AM-MBM-SW is a high-performance USB 3.0 Active Optical Cable (AOC) that combines fiber-optic technology with USB connectivity to overcome the distance and signal limitations of traditional copper cables. Adopting a hybrid copper-and-optical-fiber design, it converts USB electrical signals to optical signals, enabling extended and reliable high-bandwidth data transmission over long distances. Connectors: USB 3.0 Type-A Male to USB 3.0 Micro Type-B Male (with screws)



Highlight Features

• High bandwidth — conforms to latest USB 3.0 standard with SuperSpeed performance up to 5Gbps
• Long-distance transmission — supports lossless signals over a maximum of 30m, exceeding copper cable limits
• Backward compatible — supports USB 3.0 and USB 2.0/1.1/1.0 within 5m

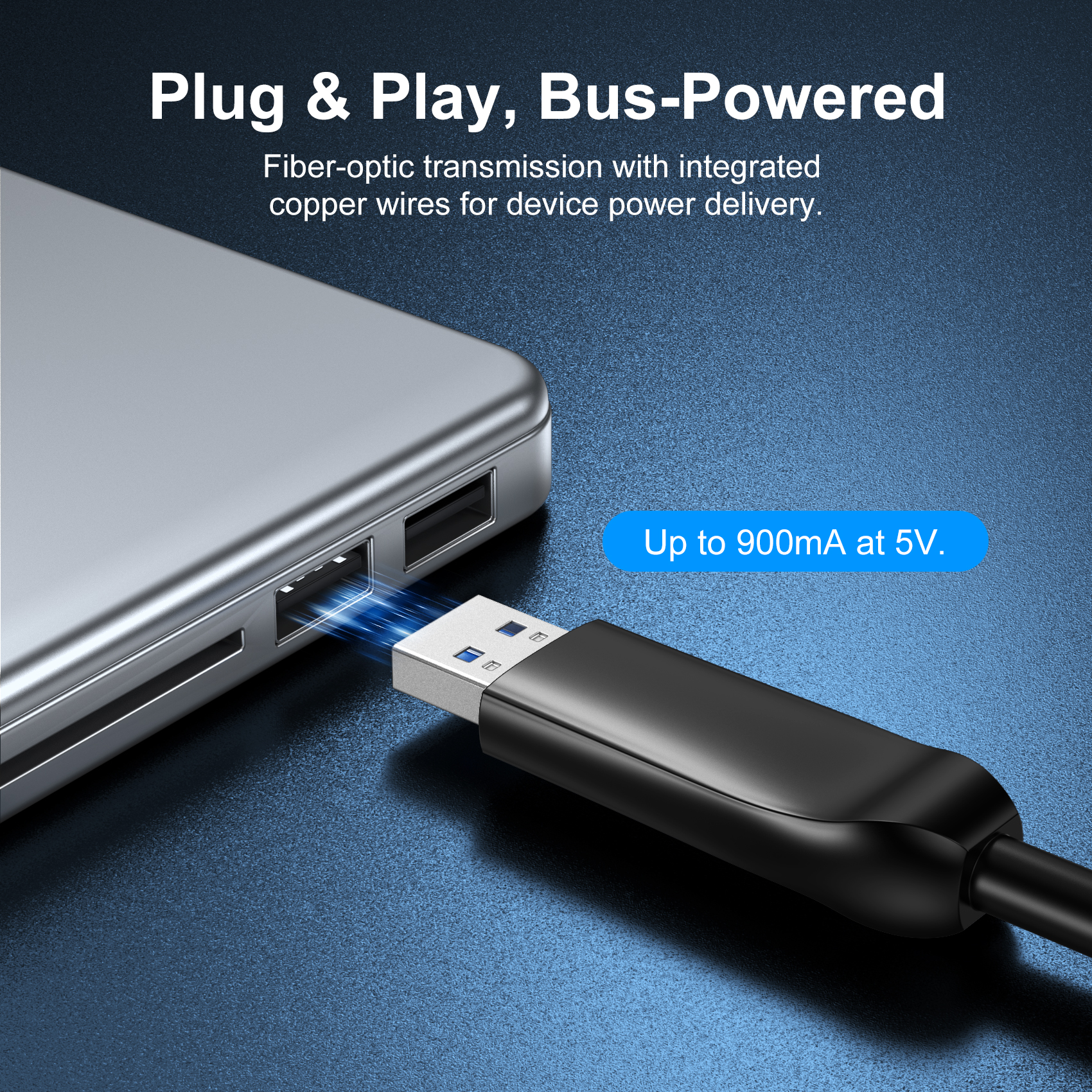

• Remote device power — supports up to 5V/900mA
• Easy installation — truly plug-and-play; no on-site power supply required

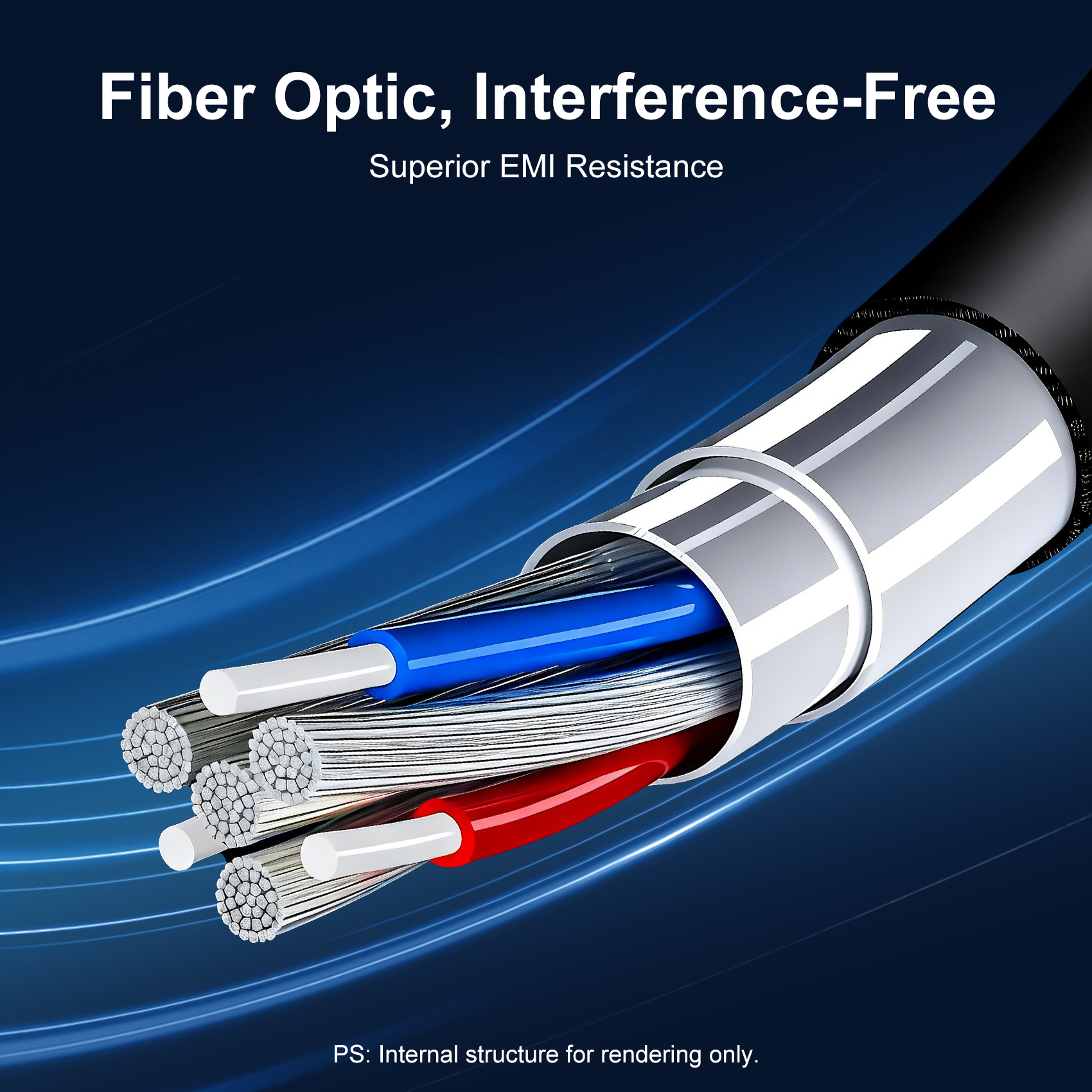

• High EMI/RFI resistance — nearly zero electromagnetic/radio-frequency interference for stable, safe, radiation-free operation in complex environments
• OS compatibility — supports Windows, Mac OS, and Linux
• Scalability — number of connected devices can be increased using additional hubs
• Low power consumption — integrated fully-featured optical transceiver (receiver + transmitter); designed for self-powered peripherals
• Customizable — custom lengths (up to 30m), logos, and packaging available



Applications

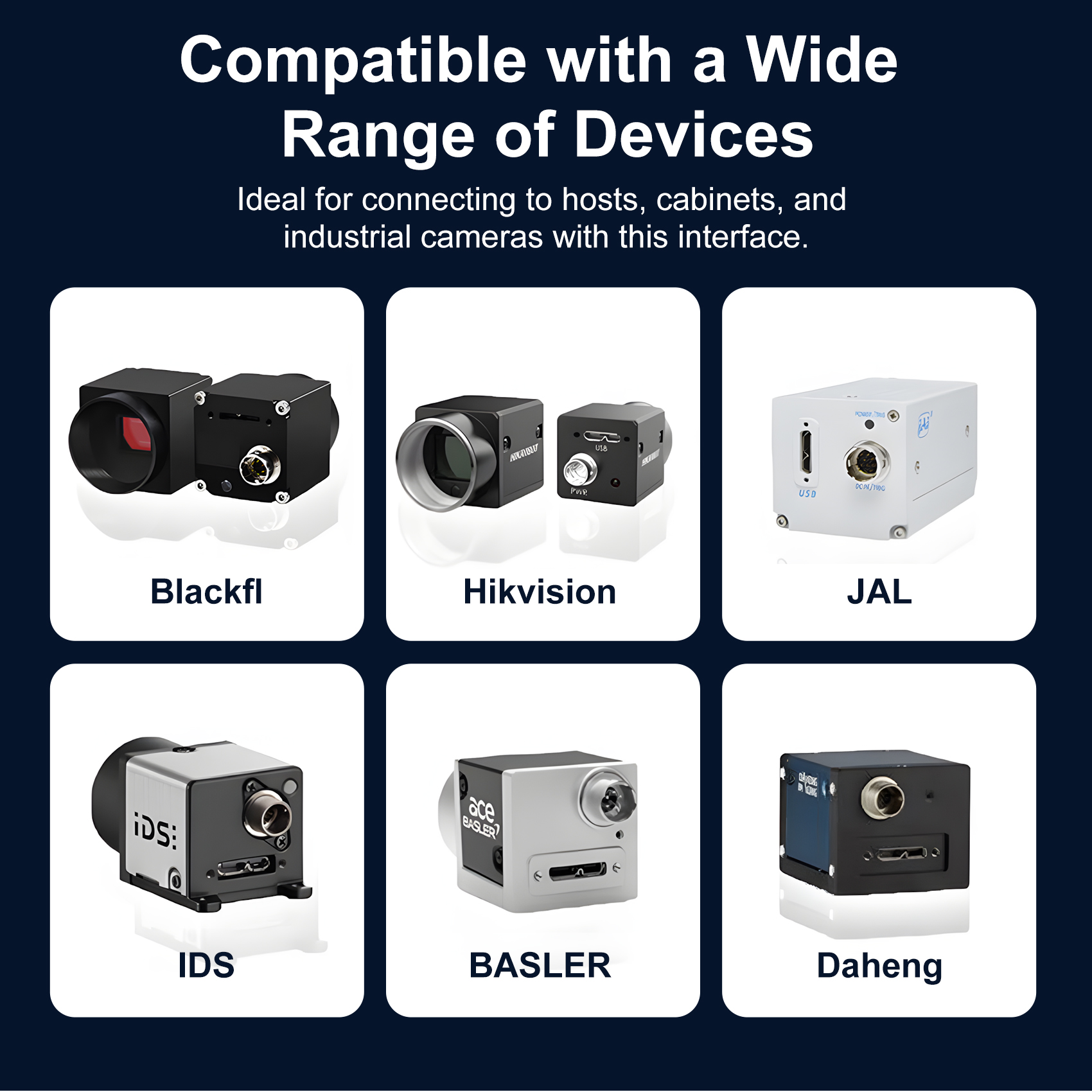

• Machine vision / Camera Link systems

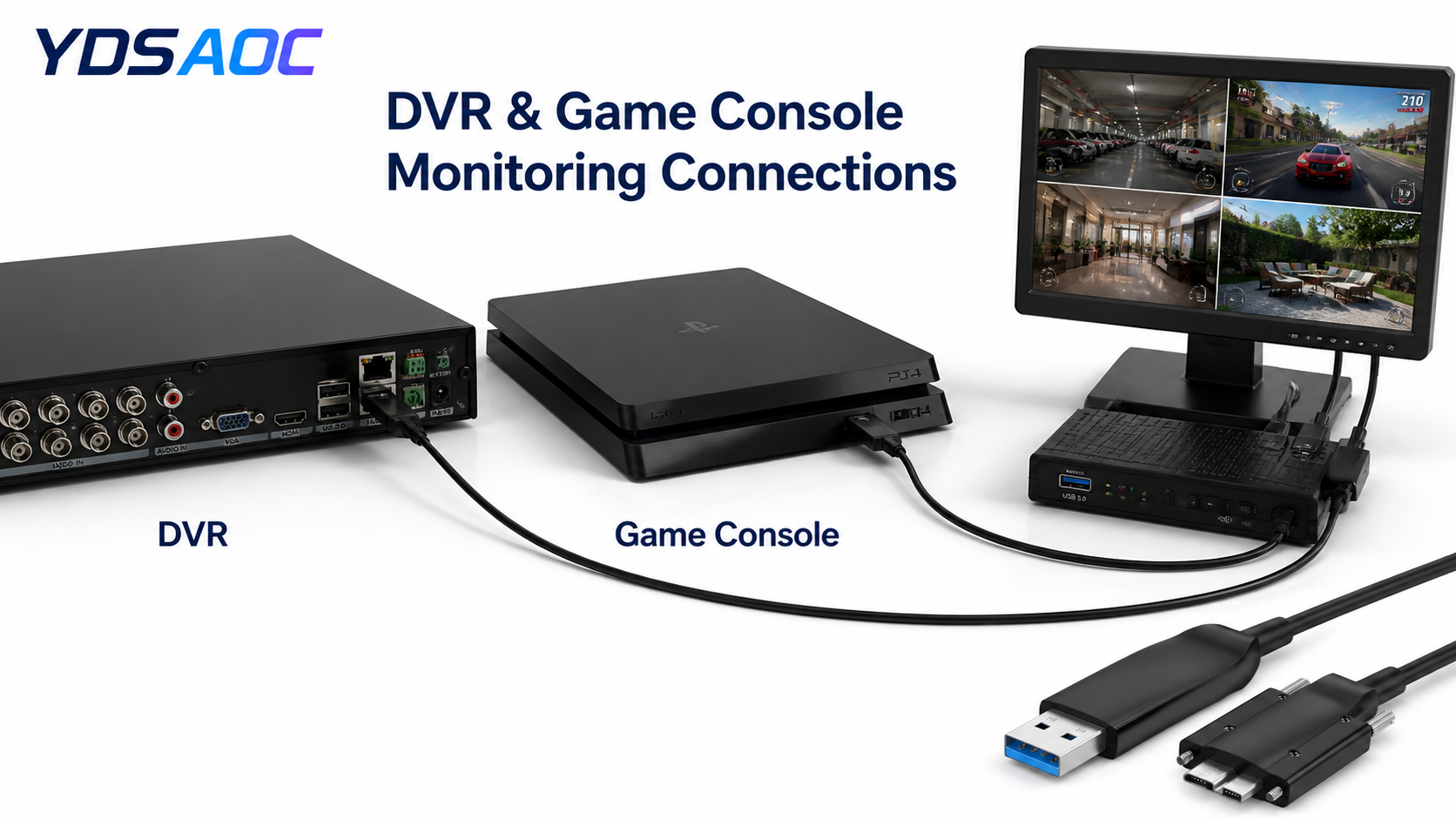

• Home theater, Blu-ray, 3D video, projectors, set-top boxes, DVR, game console control and monitor connection
• Medical imaging equipment and device connectivity
• LED signboards & monitors
• Radio and TV broadcast stations
• Airplane on-board video systems
• Conference rooms and conference room cameras
• Digital signage
• Video conferencing equipment
• Security monitoring systems (web cameras, access control)
• Industrial control and medical machine control
• Home network integration
• KVM extension and remote desktop USB 3.0 connections

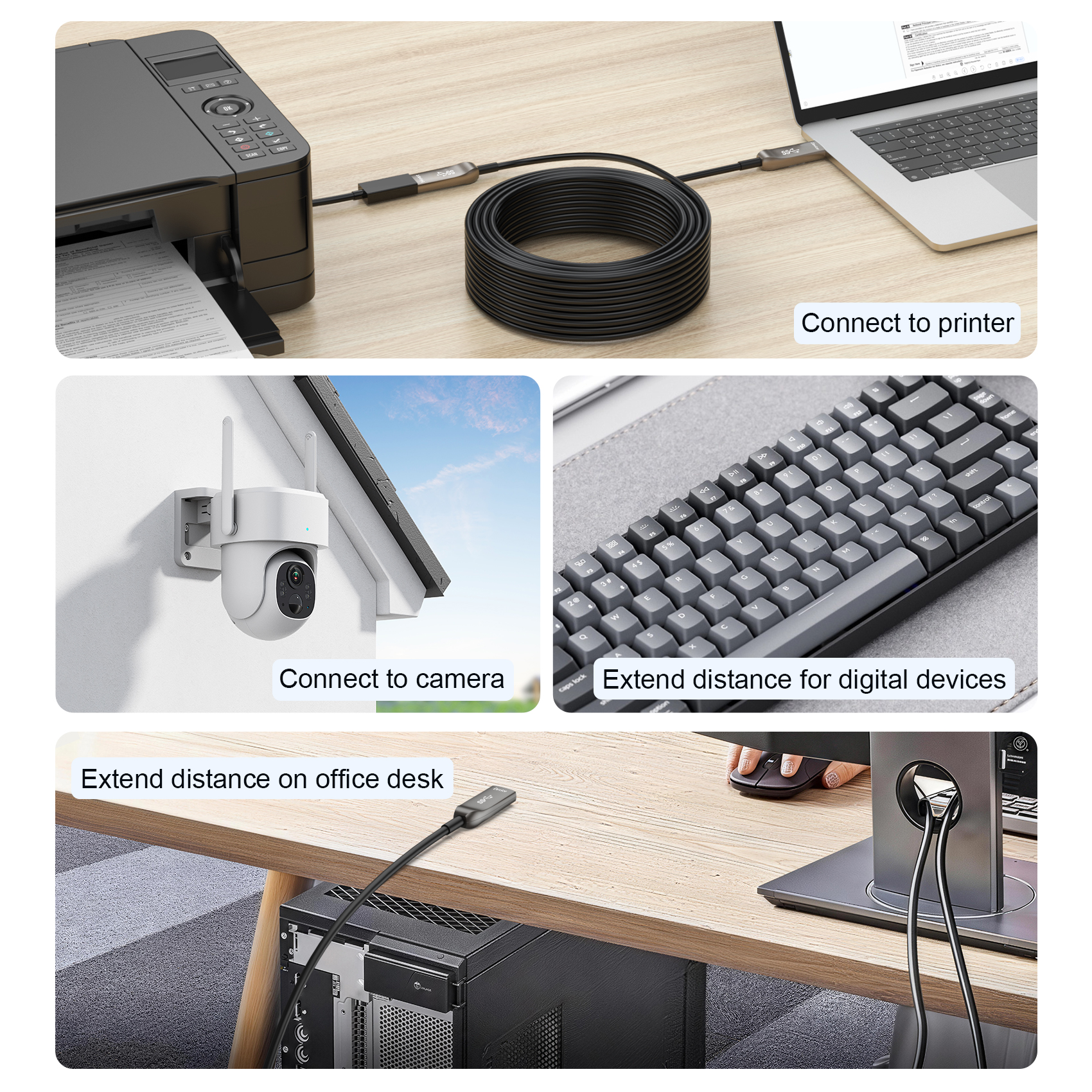

• USB 3.0 device sharing (print, scan, storage)
• Immersive AR/VR experiences



Ideal Use Case



Best suited for environments requiring extended data transmission distances without on-site power supply, and where high reliability is needed in electromagnetically complex environments — such as industrial, medical, and broadcast settings.

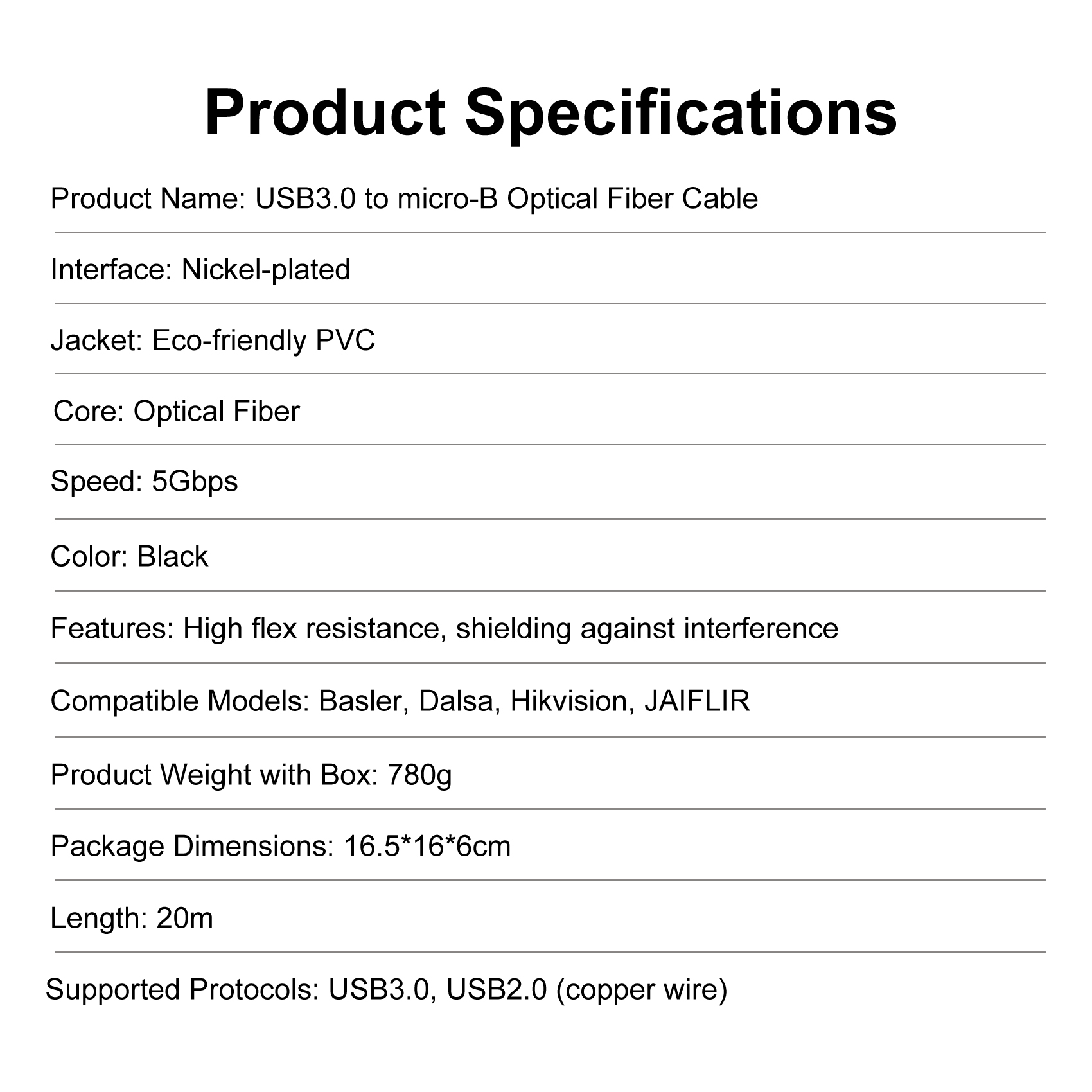

YDSAOC Model Number	YDSAOC-5G-USB3-AM-MBM-SW
Order Part Numbers	YDSAOC-5G-USB3-AM-MBM-SW-1003 YDSAOC-5G-USB3-AM-MBM-SW-2006 YDSAOC-5G-USB3-AM-MBM-SW-50015 YDSAOC-5G-USB3-AM-MBM-SW-100030 YDSAOC-5G-USB3-AM-MBM-SW-200060
Length	1m(3ft), 2m(6ft), 5m(15ft), 10m(30t), 20m(60ft)
Maximum Support Length	up to 30m(90ft)
Maximum Data Speed	up to 5Gbps
Connector A	USB 3.0 Type-A Male

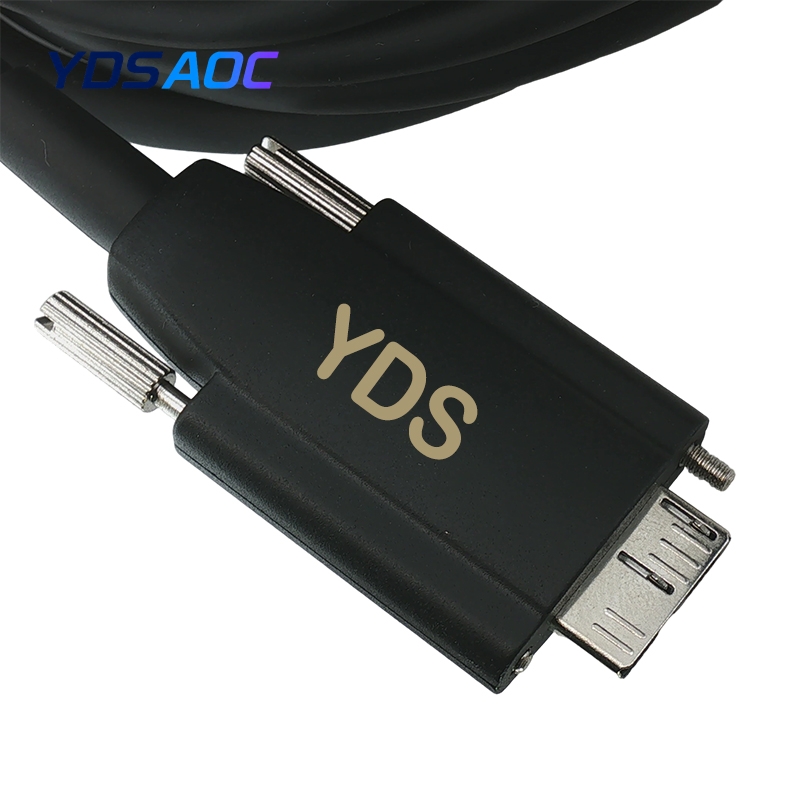

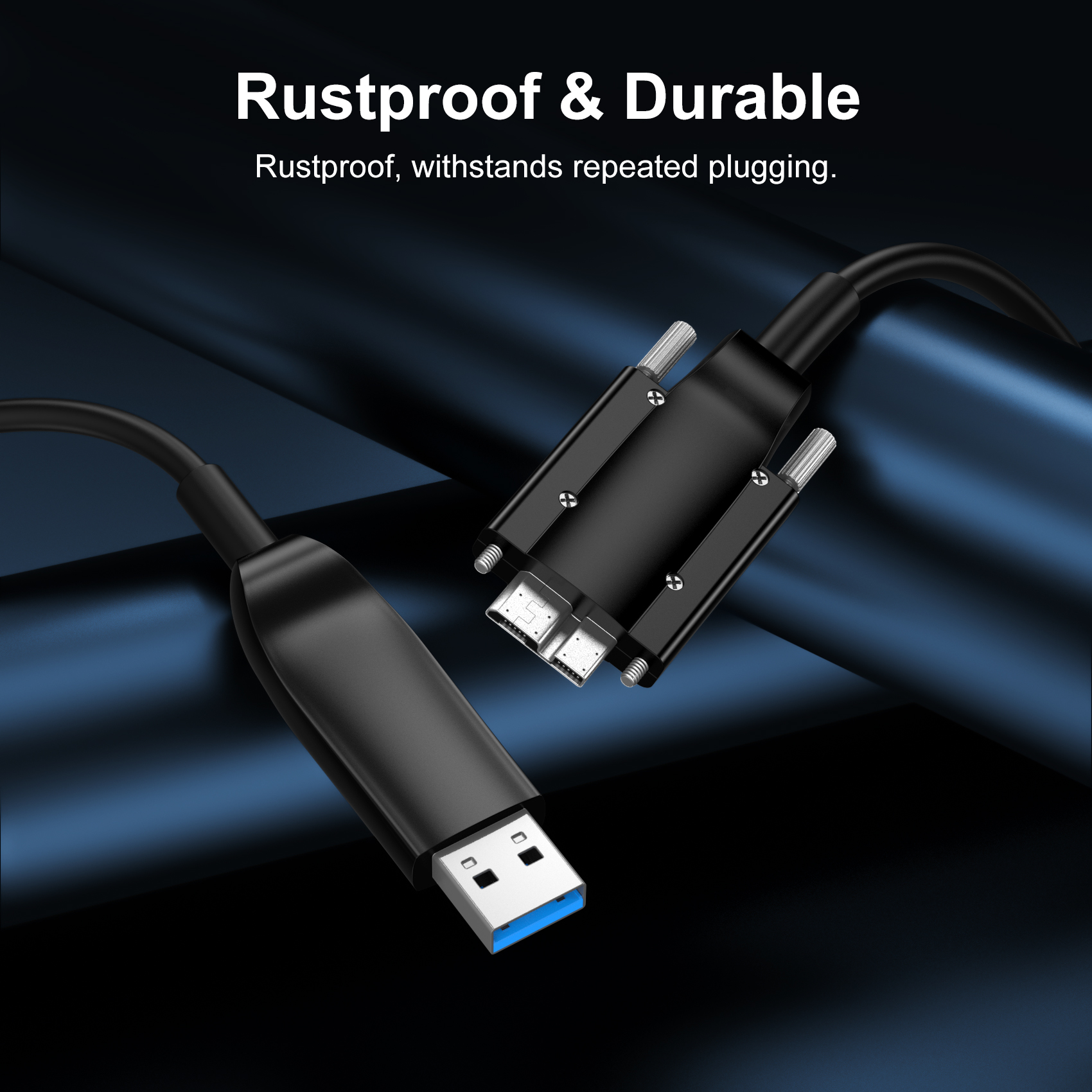

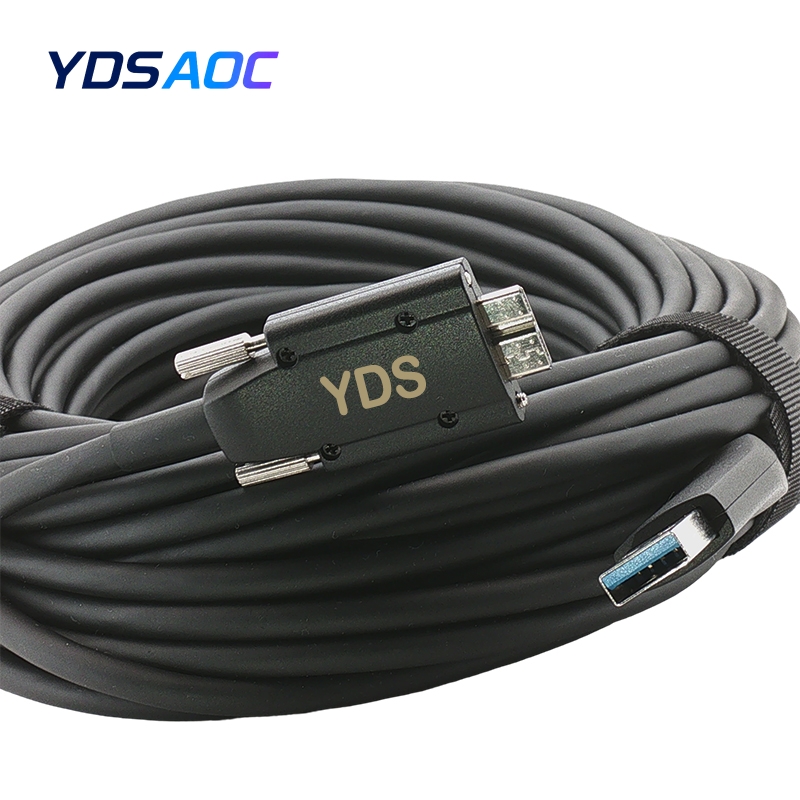

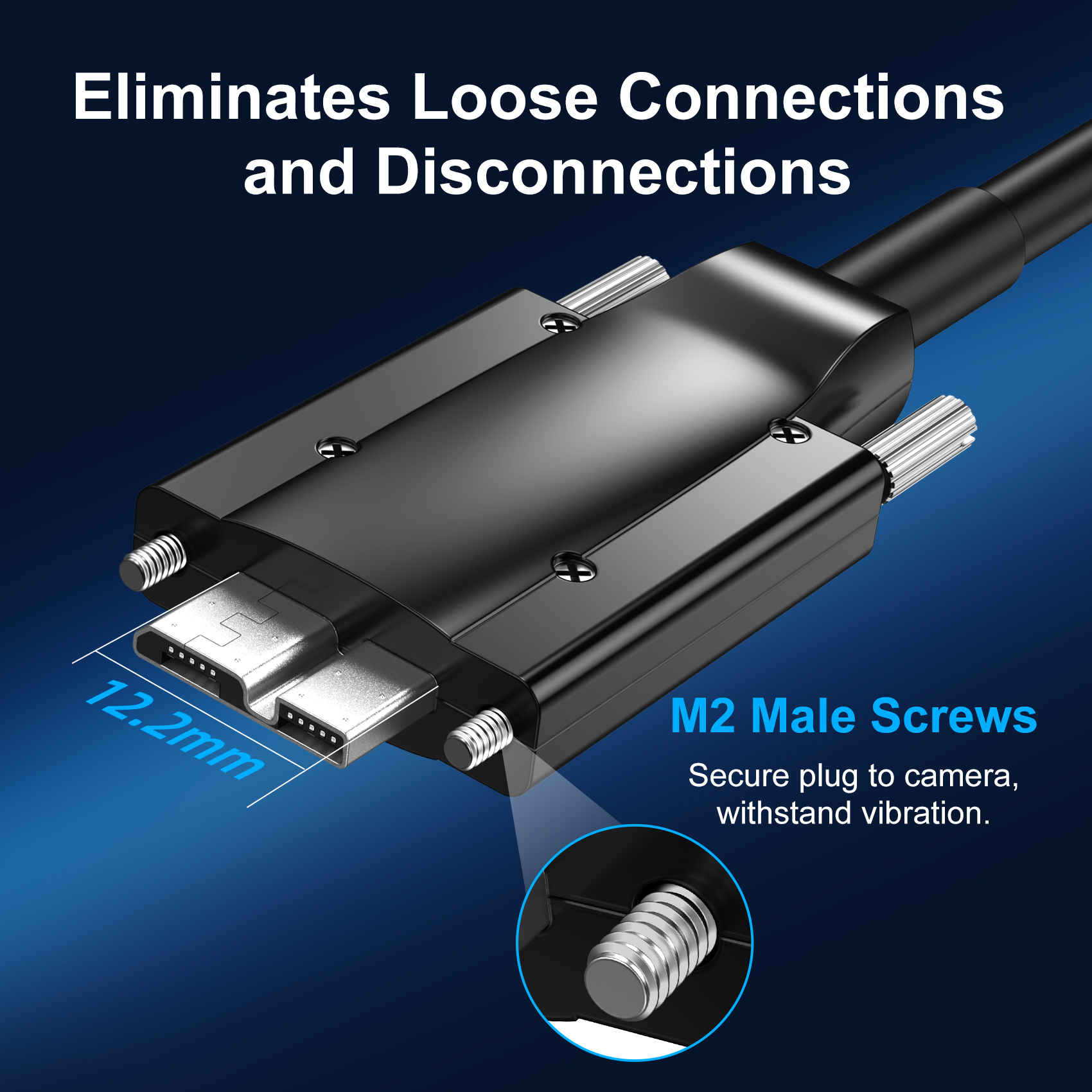

Connector B	USB 3.0 Micro Type-B Male with Screws
USB Protocols	USB 3.0,  and USB 2.0, USB 1.1, USB 1.0 within 5m
Support Functions	Data Transfer, Power Transfer
Cable Diameter	4.8mm
Cable Jacket Type	PVC
Cable Color	Black

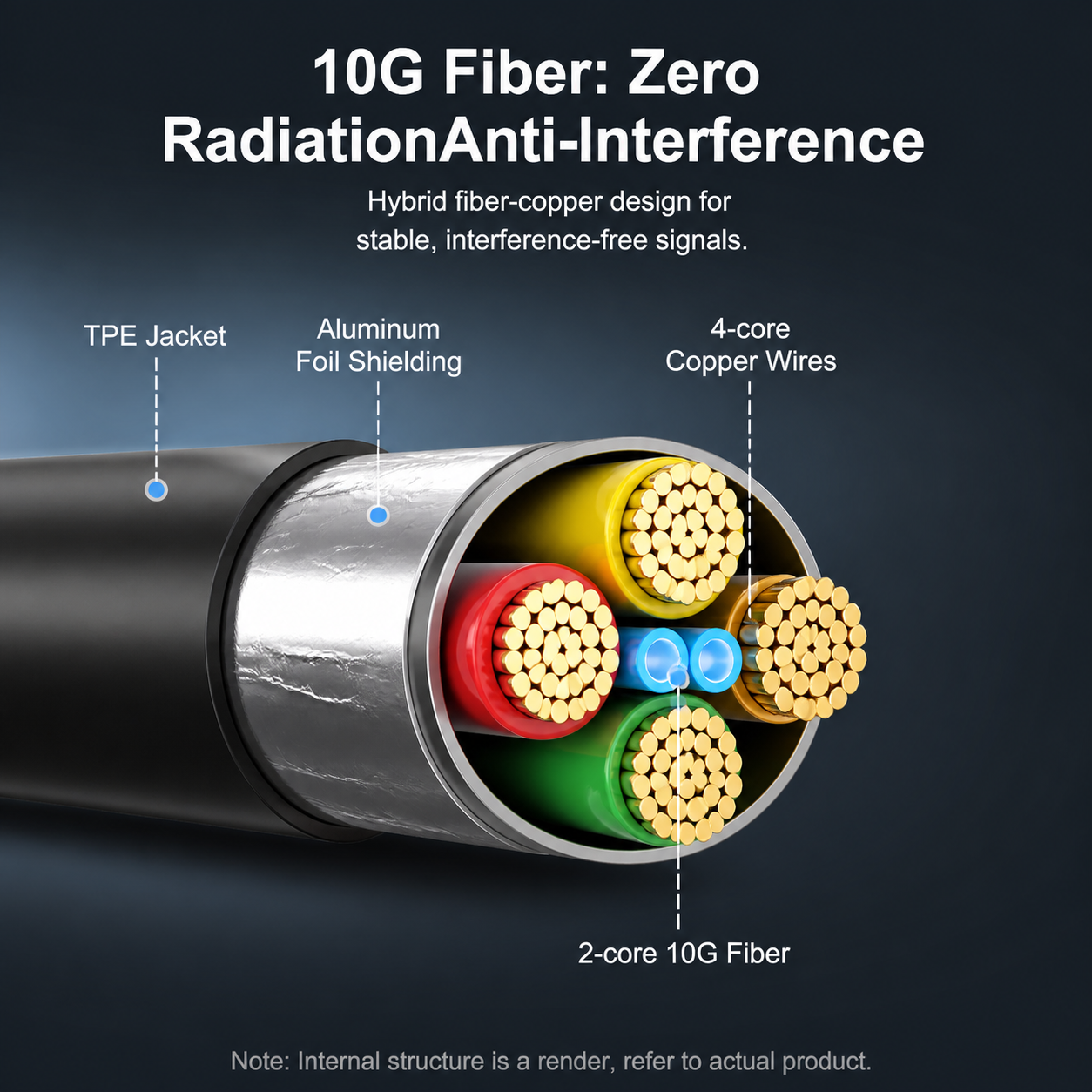

AOC Constructions	Hybrid, 2x Optical Fiber, 4x Copper Wire

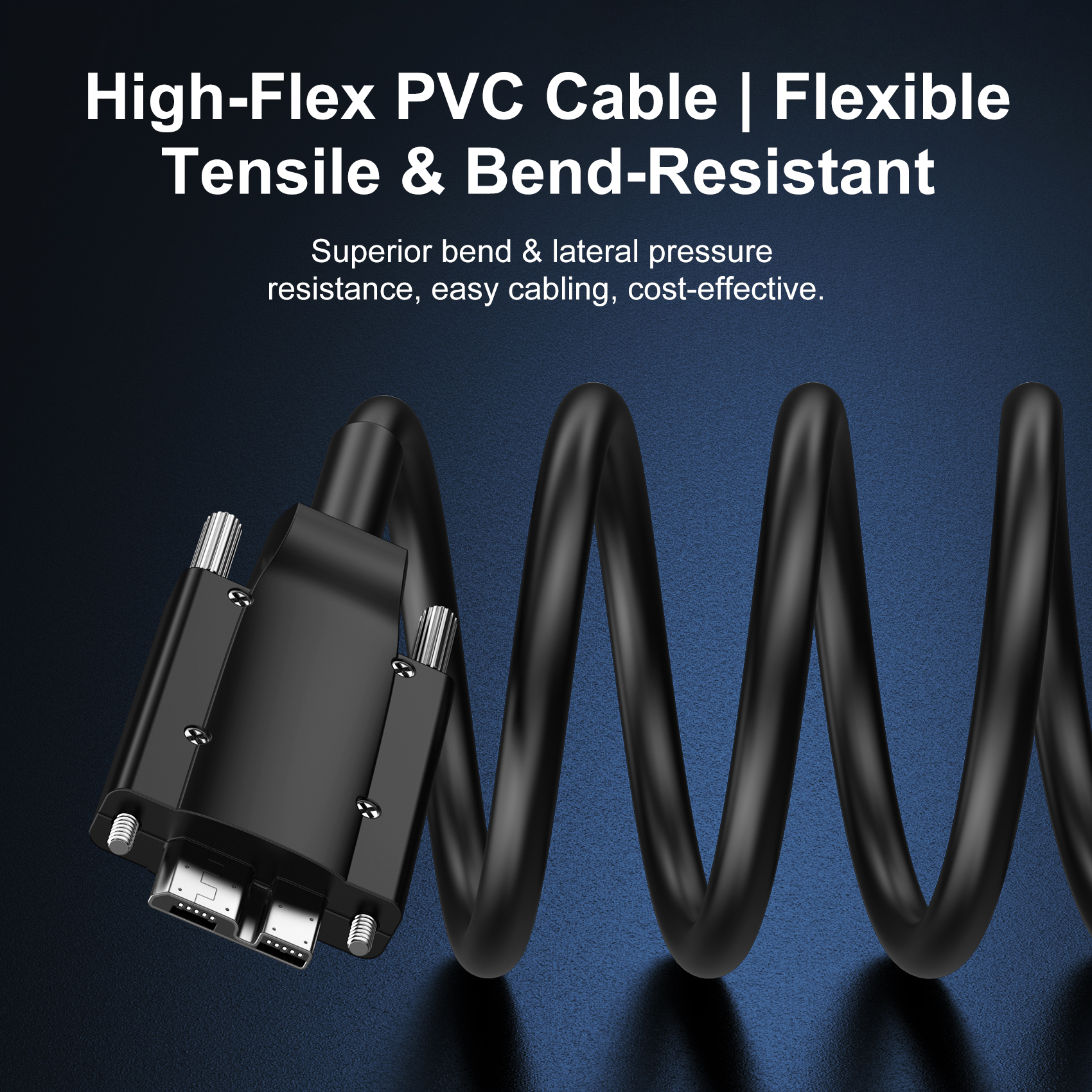

Minimum Bending Radius	50mm
Operating Temperature	0ºC to 70ºC
Storage Temperature	–40ºC to 85ºC
Installation Direction	Bidirectional, No Check on Directions
Power Connect	No External Power is Required
